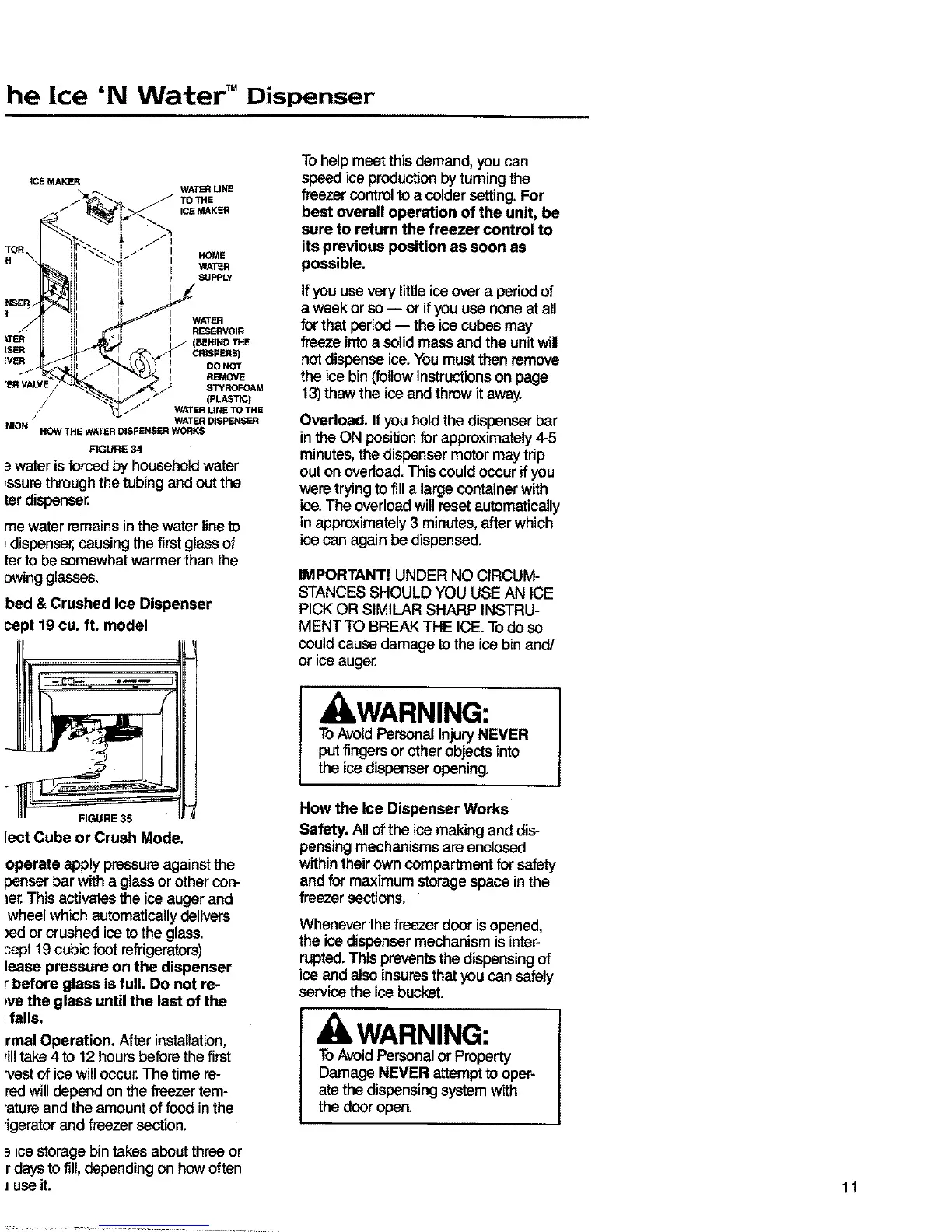

he Ice 'N Water TMDispenser
ICEMAKER
WATERUNE
TOTHE
ICEMAKER
HOME
WATER
SUPPLY
WATER
RESERVOIR
DO NOT
REMOVE
STYROFOAM
(PLASTIC)
WATERLINETO THE
WATERDISPENSER
HOW THE WATERDISPENSERWORKS
FIGURE 34
water is forced by household water
_ssurethrough the tubing and out the
ter dispenser.
me waterremains inthe waterline to
tdispenser,causingthe first glassof
terto besomewhat warmer than the
owing glasses.
bed & Crushed Ice Dispenser
cept 19 cu. ft. model
lect Cube or Crush Mode.
operate apply pressure against the
penser bar with a glass or othercon-
rer.Thisactivatesthe ice auger and
wheel which automatically delivers
)ed or crushed ice to the glass.
cept 19cubicfoot refrigerators)
lease pressure on the dispenser
r before glass is full. Do not re-
_vethe glass until the last of the
falls.
rmal Operation. After installation,
_illtake 4 to 12 hours before the first
•vestof icewilloccur.The time re-
redwill depend on thefreezer tem-
"atureand the amount of food inthe
_gerator and freezer section.
_=ice storage bin takes about three or
r days to fill, depending on how often
Juse it.
Tohelp meet this demand, you can
speed ice production by turning the
freezer controlto a coldersetting.For
best overall operation of the unit, be
sure to return the freezer control to
its previous position as soon as
possible.
Ifyou use very little ice over a pedod of
a week or so -- or if you use none at all
for that period -- the ice cubes may
freeze into a solid mass and the unit will
not dispense ice. You must then remove
the ice bin (follow instructions on page
13) thaw the ice and throw it away.
Overload. If you hold the dispenserbar
in the ON position for approximately 4-5
minutes, the dispenser motor may trip
out on overload. This could occur ifyou
were trying to fill a large ccntalner with
ice. The ovedoad will reset automatically
in approximately 3 minutes,after which
ice can again be dispensed.
IMPORTANT! UNDER NO CIRCUM-
STANCES SHOULD YOU USE AN ICE
PICK OR SIMILAR SHARP INSTRU-
MENT TO BREAK THE ICE. Tode so
could causedamage to the ice bin and/
or ice auger.
WARNING:
ToAvoidPersonalInjury NEVER
put fingers or other objectsinto
the ice dispenser opening.
How the Ice Dispenser Works
Safety. All of the ice making and dis-
pensingmechanismsare enclosed
withintheirown compartment for safety
and for maximum storage space inthe
freezer sections.
Whenever the freezer door is opened,
the ice dispenser mechanism is inter-
rupted.This preventsthe dispensing of
ice and also insuresthatyou can safely
service the ice bucket.
WARNING:
ToAvoid Personalor Property
Damage NEVER attempt to oper-
ate the dispensing system with
the dooropen.
