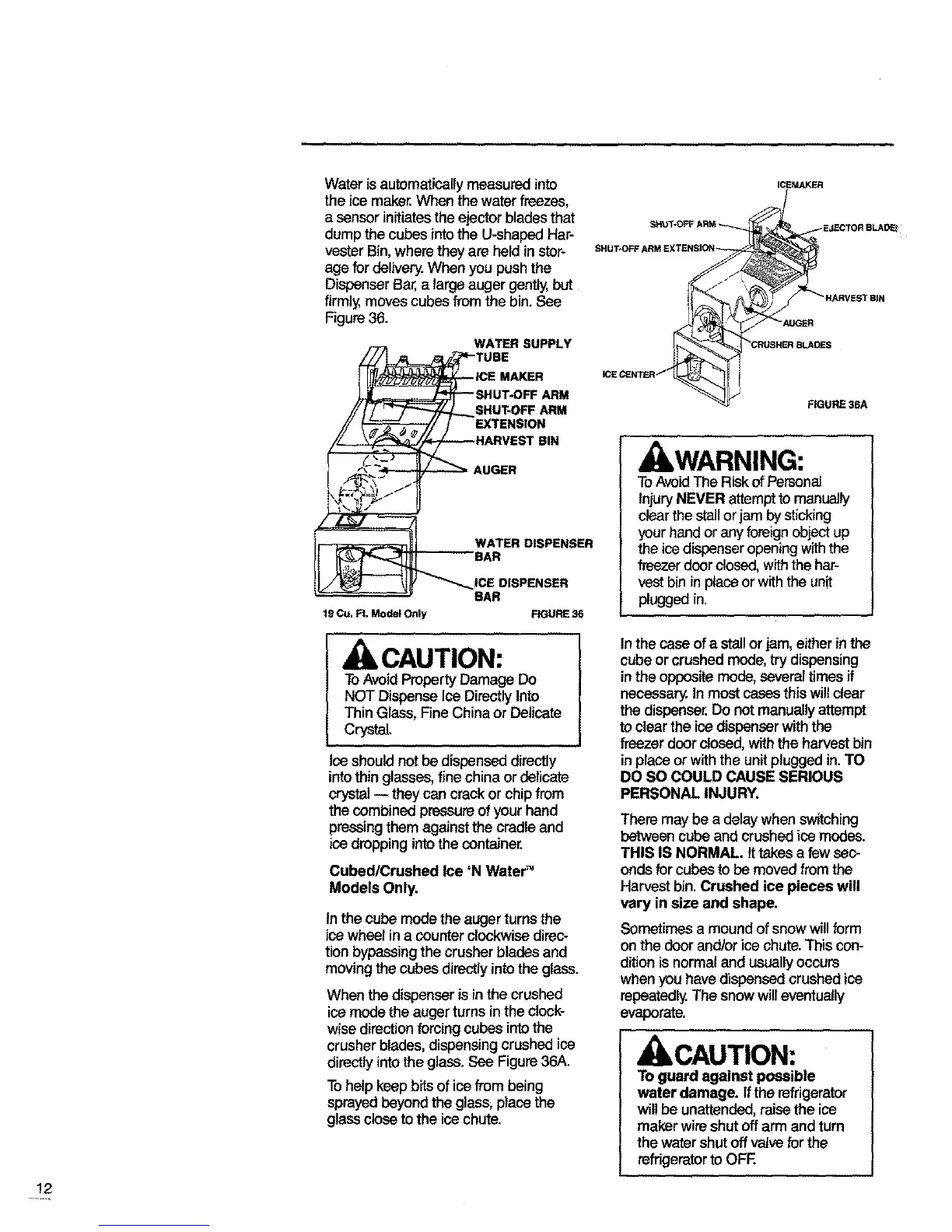

12
Water is automatically measured into
the ice maker,When the water freezes,
a sensor initiates the ejector blades that
dump the cubes into the U-shaped Har-
vester Bin, where they are held in stor-
age for delivery. When you push the
Dispenser Bar,a largeauger gently, but
firmly, moves cubes from the bin. See
Figure36.
WATER SUPPLY
TUeE
_--- ICE MAKER
_" SHUT-OFF ARM
' _ _.... SHUT'OFF ARM
.
............... WATER DISPENSER
(t RAR
--...1::.,SPENSE.
19 CU, Ft. Model Only FIGURE 36
SHUT*OFF
CAUTION:
ToAvoid Property Damage Do
NOT Dispense Ice Directly Into
Thin Glass, Fine China or Delicate
Crystal.
Ice should not be dispensed directly
into thin glasses, fine china or delicate
crystal -- they can crack or chip from
the combined pressure of your hand
pressing them against the cradle and
ice dropping into the container.
Cubed/Crushed Ice 'N Water TM
Models Only.
In the cube mode the auger turns the
ice wheel in a counter clockwisedirec-
tion bypassing the crusher blades and
moving the cubes directly into the glass.
When the dispenser is in the crushed
ice mode the auger turns inthe clock-
wise direction forcing cubes into the
crusher blades, dispensing crushed ice
directly into the glass. See Figure 36A.
Tohelpkeep bits of ice from being
sprayed beyond the glass; place the
glass close to the ice chute.
ICEMAKER
_GURE36A
,WARNING:
ToAvoid The Risk of Personal
Injury NEVER attempt to manuatiy
clear the stall or jam by sticking
your hand or any foreign object up
the ice dispenser opening with the
freezer door closed, with the har-
vest bin in place or with the unit
plugged in.
In the case of a stall or jam, either in the
cube or crushed mode, try dispensing
in the opposite mode, severaltimes if
necessary. In most cases this will clear
the dispenser. Do not manually attempt
to clear the ice dispenser with the
freezer door closed, with the harvest bin
in place or with the unit plugged in. TO
DO SO COULD CAUSE SERIOUS
PERSONAL INJURY.
There may be a delay when switching
between cube and crushed ice modes.
THIS IS NORMAL. Ittakes a few sec-
ondsfor cubesto be moved fromthe
Harvest bin. Crushed ice pieces will
vary in size and shape.
Sometimes a mound ofsnow willform
on the door and/or ice chute. This con-
dition is normal and usually occurs
when you have dispensed crushed ice
repeatedly The snow will eventually
evaporate.
CAUTION:
To guard against possible
water damage. Ifthe refrigerator
willbe unattended,raise the ice
maker wireshut off arm and tam
the watershut offvalveforthe
refrigerator to OFF.
