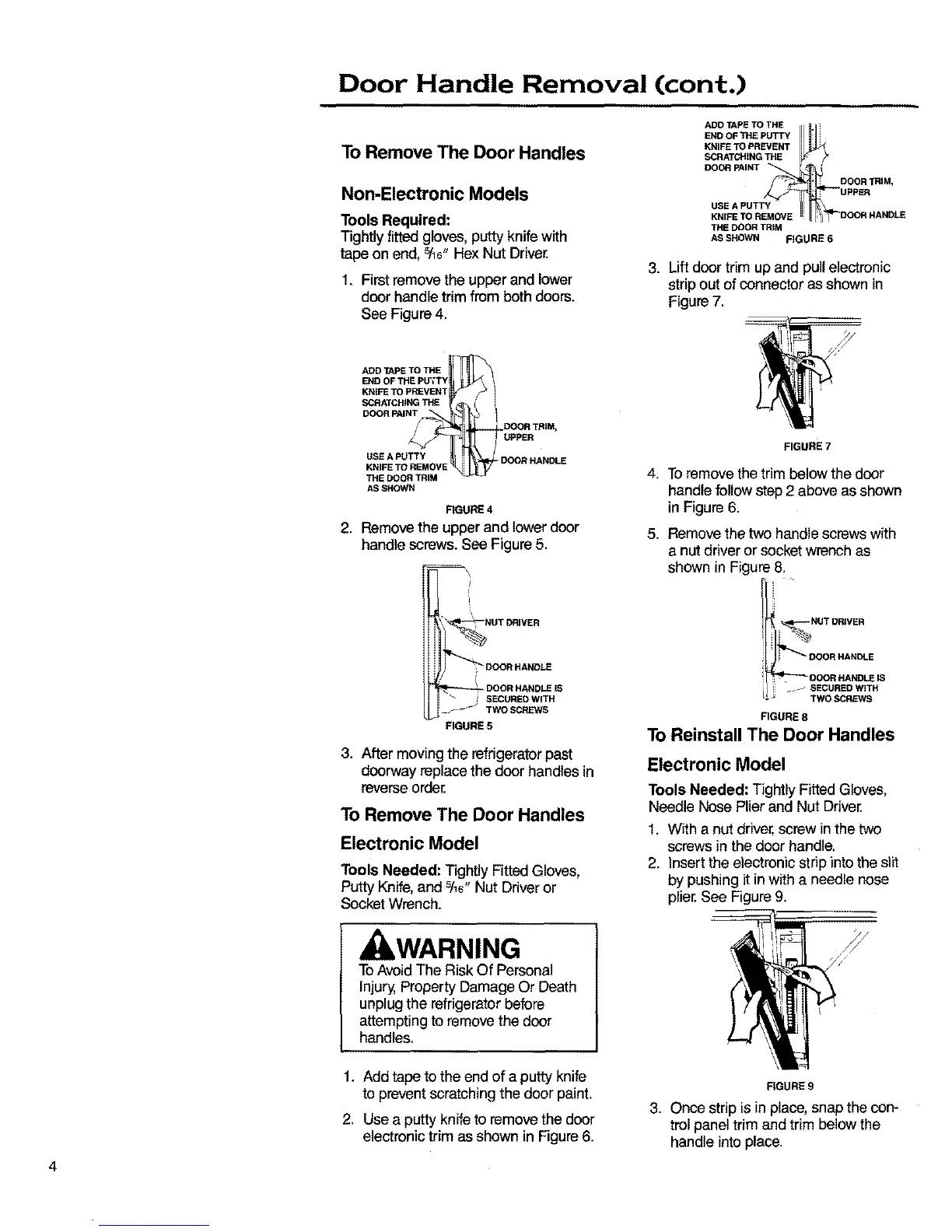

Door Handle Removal (cont.)
To Remove The Door Handles
Non-Electronic Models
Tools Required:
Tightlyfitted gloves, puttyknife with
tapeon end, 5/16"HexNut Driver.
1. First remove the upper and lower
door handle trim from both doors.
See Figure 4.
ADD TAPE TO THE
END OF THE PUTTY
KNIFE TO PREVENT
SCRATCHING THE
DOOR PAINT
DOOR TRIM,
USE A PUTTY
KNIFE TO REMOVE IANDLE
THE DOOR TRIM
AS SHOWN FIGURE 6
3. Lift door trim upand pullelectronic
strip out of connector as shown in
Figure 7.
,
ADD TAPE TO THE II[ '_
END OF THE PUTTY
KNIFE TO PREVENT
SCRATCHING THE _ _D_)Oc_RRR_I_,LE
DOOR PAINT
USE A PUTTY
KNIFE TO REMOVE
THE DOOR TRIM
AS SHOWN
RGURE 4
Removethe upper and lower door
handlescrews.See Figure 5.
NUT DRIVER
_"_'_ DOOR HANDLE
"_[[ DOOR HANDLE IS
SECURED WiTH
F _j TWO SCREWS
FIGURE 5
3. After moving the refrigerator past
doorway replace the door handles in
reverse order.
To Remove The Door Handles
Electronic Model
Tools Needed: Tightly Fitted Gloves,
Putty Knife, and 5/16"Nut Driver or
SocketWrench.
, ,WARNING
ToAvoid The Risk Of Personal
Injury, Property Damage Or Death
unplug the refrigerator before
attempting to remove the door
handles.
FIGURE 7
4. To remove the trim below the door
handle follow step 2 above as shown
in Figure 6.
5. Remove the two handle screws with
a nut driver or socket wrenchas
shown in Figure 8.
NUT DRIVER
DOOR HANDLE
ODOR HANDLE IS
_-_ SECURED WITH
TWO SCREWS
FIGURE 8
To Reinstall The Door Handles
Electronic Model
Tools Needed: Tightly Fitted Gloves,
Needle Nose Plier and Nut Driver.
1. With a nut driver, screw inthe two
screws in the door handle.
2. Insert the electronicstrip into the slit
by pushingit in witha needle nose
plier.See Figure9.
1,
2.
Add tape to the end of a putty knife
to prevent scratching the door paint.
Use a putty knife to remove the door
electronic trim as shown in Figure6.
FIGURE 9
3. Once strip isin place,snap thecon-
trol panel trim and trim below the
handle into place.
To Next Page
