Operation with the mobile fertiliser test kit

Mobile fertiliser test kit DB 538.1 04.08

4.3.3 Evaluation with the aid of the calculation scheme

Calculation scheme:

0,5

(I + II)

(B+C)

ADE

G+EF+E

I II III IV

I IIIII IV

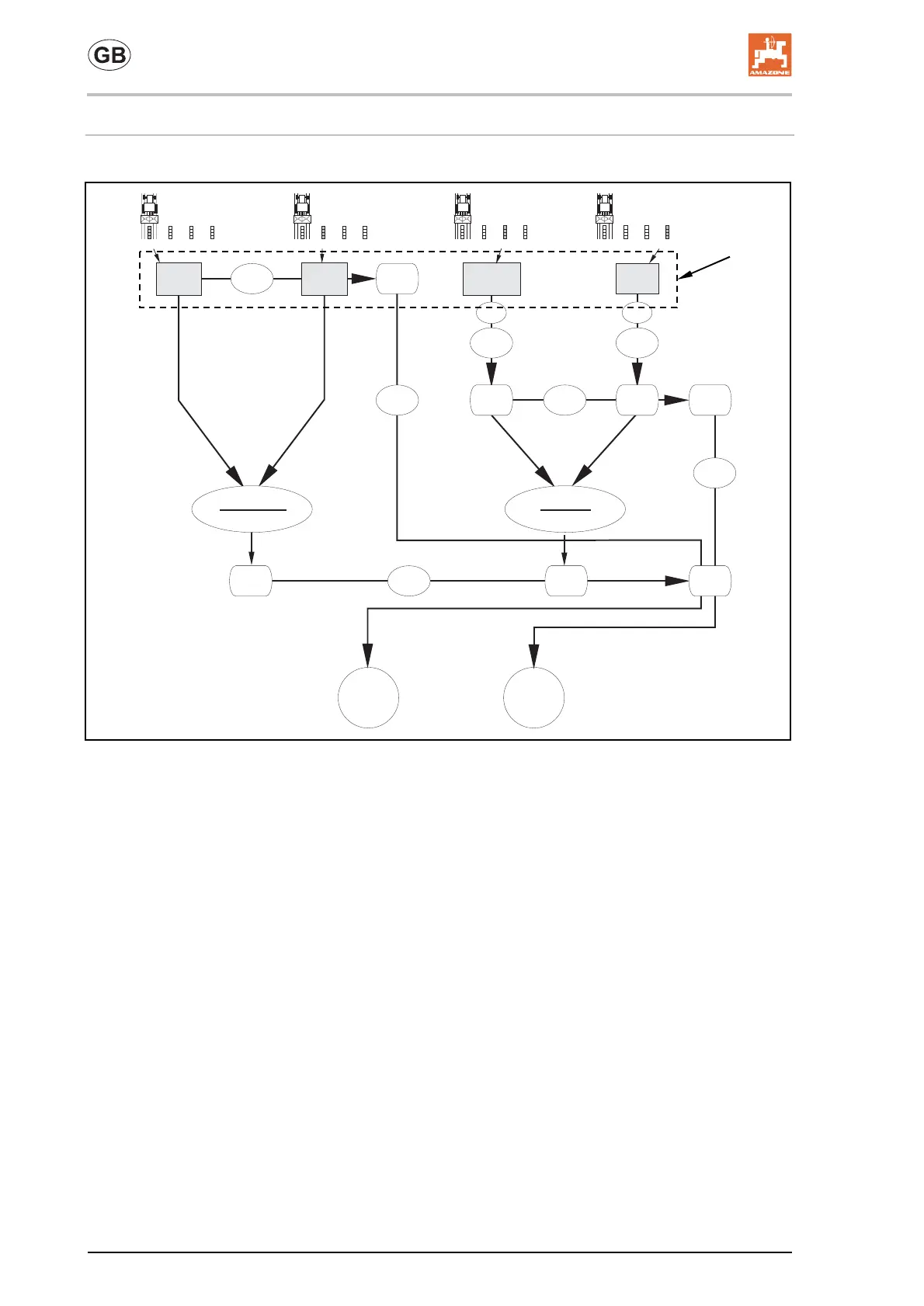

Fig. 8

1. Insert the number of the read off scale lines for the individual

fertiliser levels (I, II, III, IV) into the relevant (I, II, III, IV) in the

upper line (Fig. 8/1) of the calculation scheme to determine the

spreading vane setting positions.

2. Calculate the values A, B, C, D, E, F and G according to the

prescribed procedure in the relevant calculation scheme one by

one.

3. Add the values "F" and "E" to calculate the spreading vane set-

ting positions for the short spreading vane.

4. Add the values "G" and "E" to calculate the spreading vane set-

ting positions for the long spreading vane.

5. Correction of the spreading vane positions by the calculated

spreading vane adjusting positions.

5.1 Negative value: Swivel backwards the vanes by the value

on the scale.

5.2 Positive value: Swivel forward the vanes by the value on

the scale.

6. Repeat the working width check with the new spreading vane

setting positions.
