Operation with the mobile fertiliser test ki
Mobile fertiliser test kit DB 538.1 04.08
47
Example 4:
IIII IIIII IIIIV IV
IIII IIIII IIIIV IV
0
100
%
IIIIIIIV
Fig. 15
The selected spreading vane position is not correct as the difference
among the individual fertiliser levels in the four funnel halves is too
big.

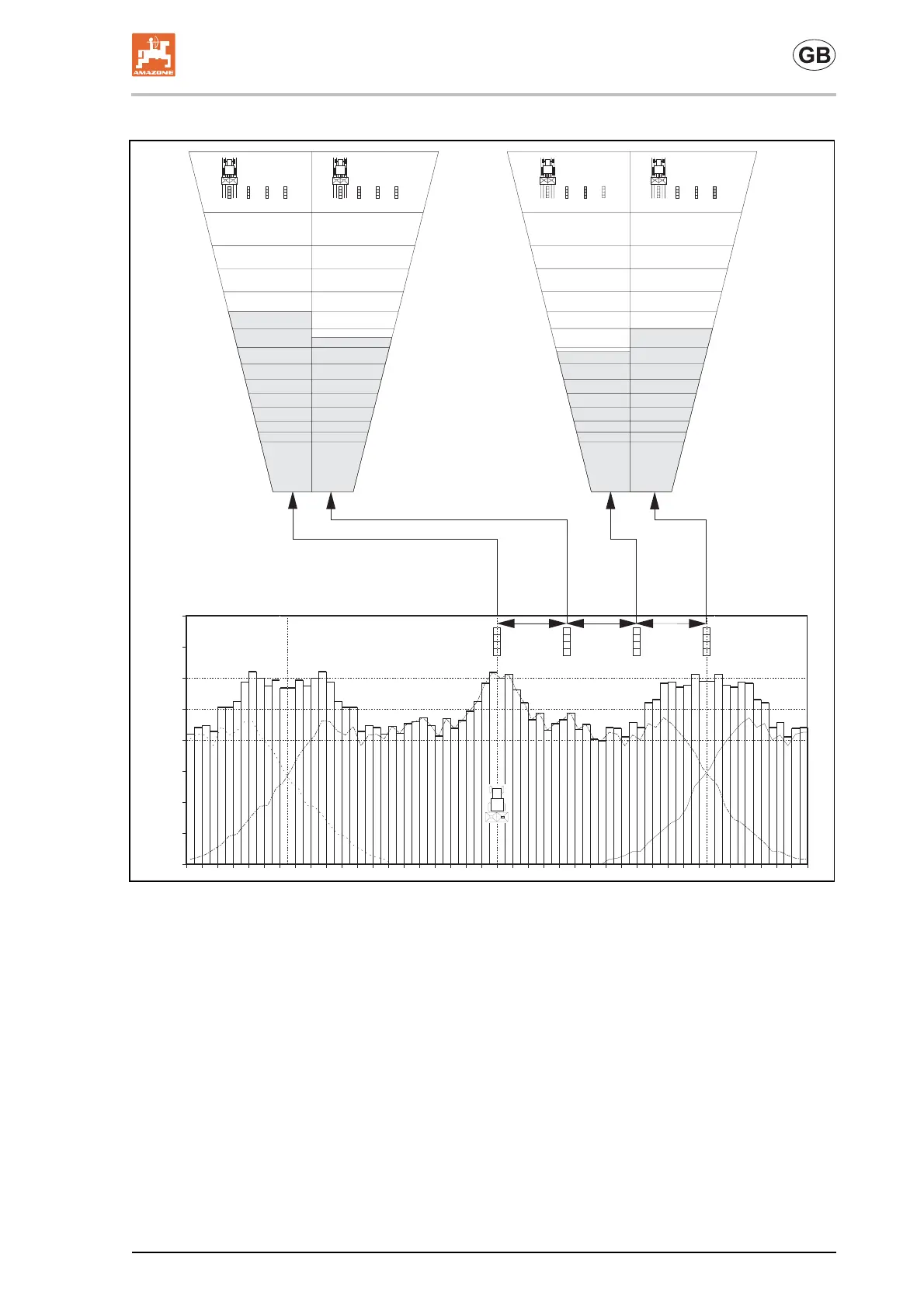

In the spreading test hall a spreader which had been set in this way
would result in the illustrated spread pattern.
• Too little fertiliser in the implement's centre, too little fertiliser
within the range of the collecting tray 2 and 3 and too much fer-
tiliser within the overlapping area.
10
7,75
9
8,5
