M32 FLYWHEEL - INSTALLATION & MAINTENANCE MANUAL
8. Connect the flywheel communications Cat6a
Ethernet cable to the pigtail Ethernet cable coming
from the controller daughter card. Use the
provided cable tie points to provide strain relief for
the cable (cable ties not shown).

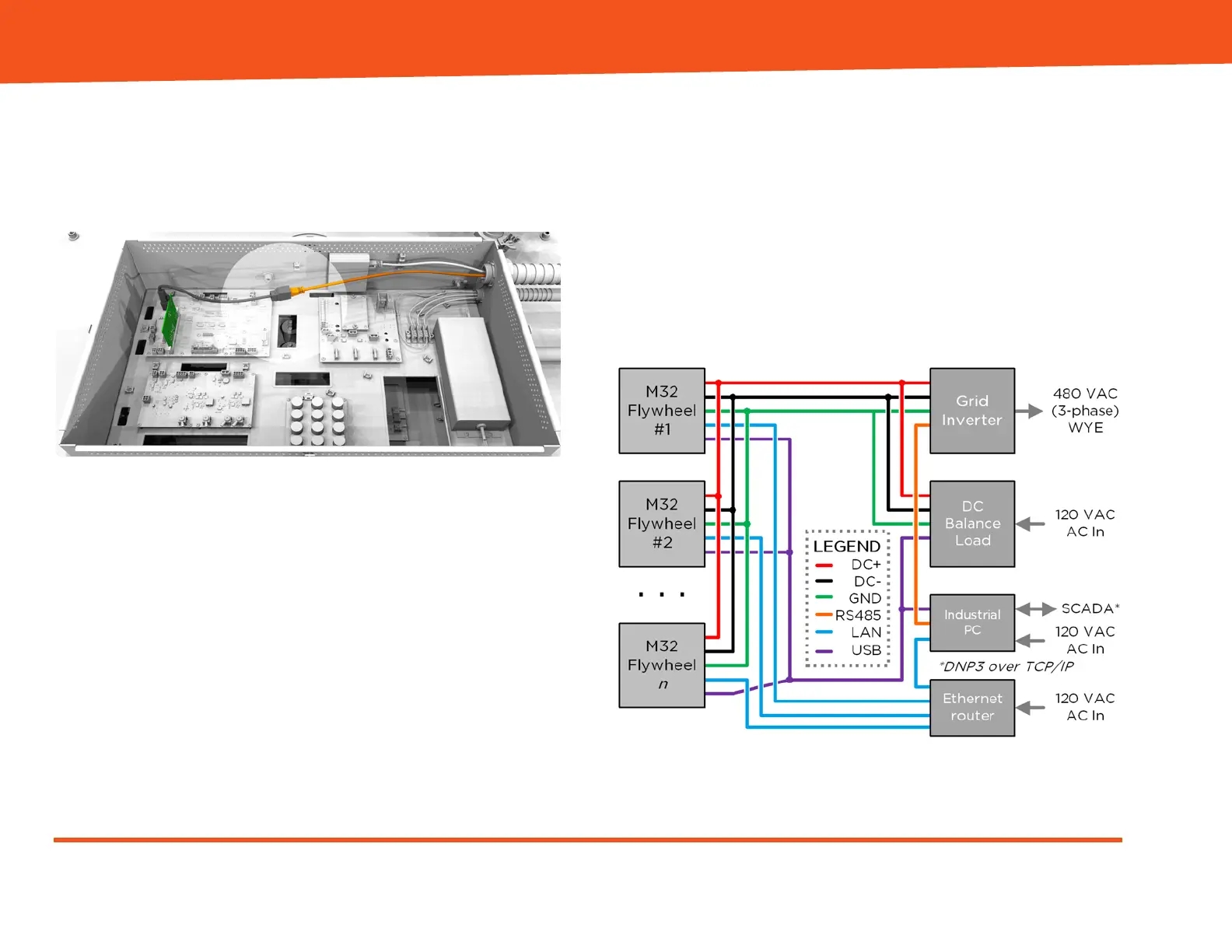

Figure 21: Communications Cat6a
Ethernet connection
9. Connect the M32 flywheel(s) to the following
components, and complete all external connections
to those components:
- Grid-tie inverter
- DC Balance Load (if needed)
- Industrial PC
- Ethernet switch/router
Figure 22 depicts the wiring diagram for a generic
site; your specific site may vary.
Figure 22: General site wiring
