Version 1.1 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 25
while the min values are displayed.
To return to normal mode, press the MAX/MIN button again.
(a) (b)

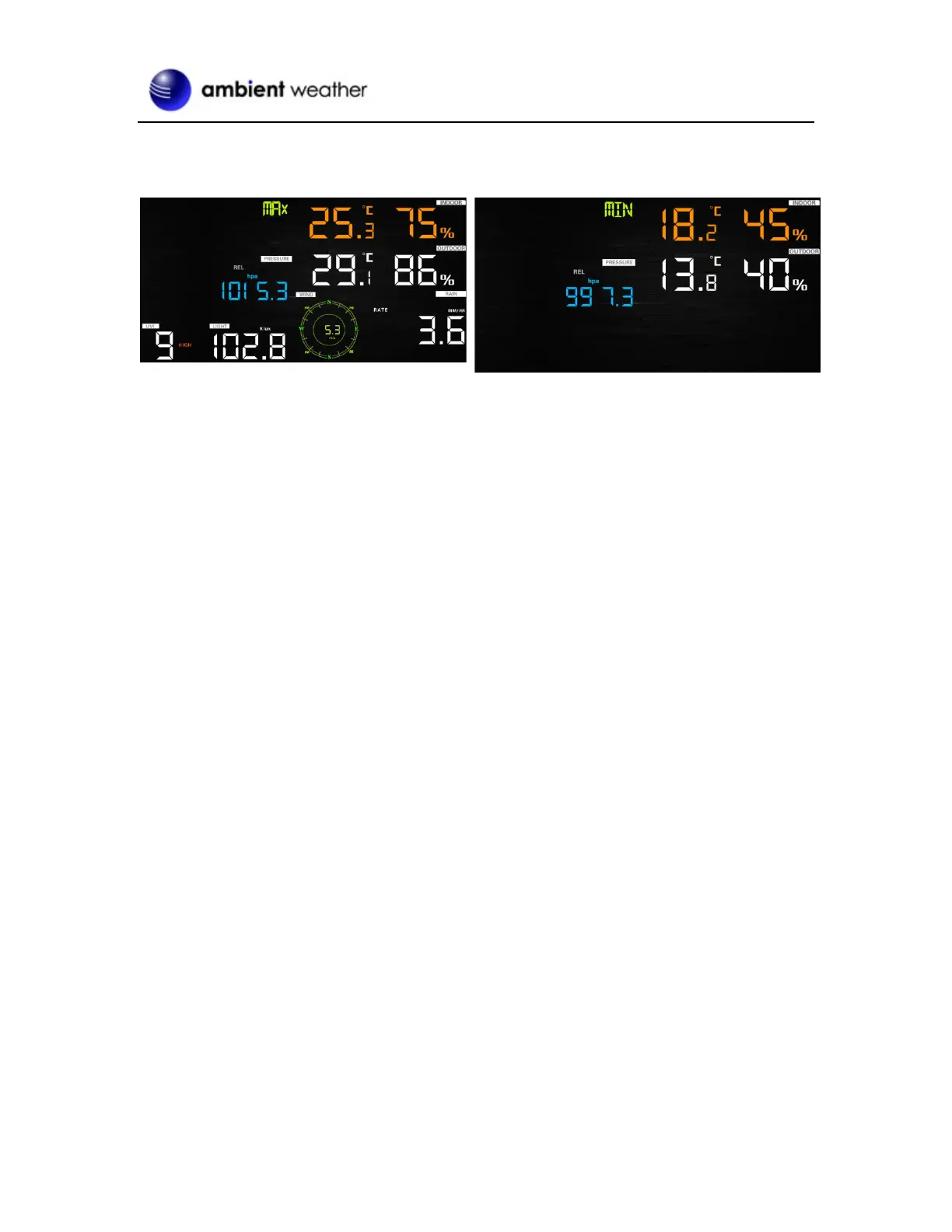

Figure 20
6.9.1.1 Display Wind Chill, Heat Index vs. Dew Point Max/Min Values
While the max values are displayed as outlined in Section 6.9.1, press the TEMP button once to view
the heat index, twice to view the dew point, and a third time to return to outdoor temperature.
While the min values are displayed as outlined in Section 6.9.1, press the TEMP button once to view
the wind chill, twice to view the dew point, and a third time to return to outdoor temperature.
6.9.1.2 Display Wind Speed vs. Wind Gust Max Values
While the max values are displayed as outlined in Section 6.9.1, press the WIND + button once to
view the max wind gust, and twice to return to wind speed.
6.9.1.3 Display Rain Rate, Daily Rain, Weekly Rain and Monthly Rain
Max Values
While the max values are displayed as outlined in Section 6.9.1, press the RAIN button once to view
the max daily rain, twice to view the max weekly rain, three times to view the max monthly rain, four
times to return to the max rain rate.
6.9.1.4 Display Absolute and Relative Pressure Min and Max Values
While the max values are displayed as outlined in Section 6.9.1, press and hold the PRESSURE
button for two seconds to view the absolute pressure, and press and hold the PRESSURE button for
two seconds again to return to relative pressure.
While the min values are displayed as outlined in Section 6.9.1, press and hold the PRESSURE
button for two seconds to view the absolute pressure, and press and hold the PRESSURE button for
two seconds again to return to relative pressure.
6.10 Calibration
6.10.1 Calibration Settings
Press and hold the TEMP. and MAX/MIN buttons at the same time for 5 seconds to enter calibration
mode. The CAL icon will be displayed.
