Ambient miniVES - Minives L Series and Midives 8003 R Connector Panel

Compact Voice Alarm System
User Manual
12

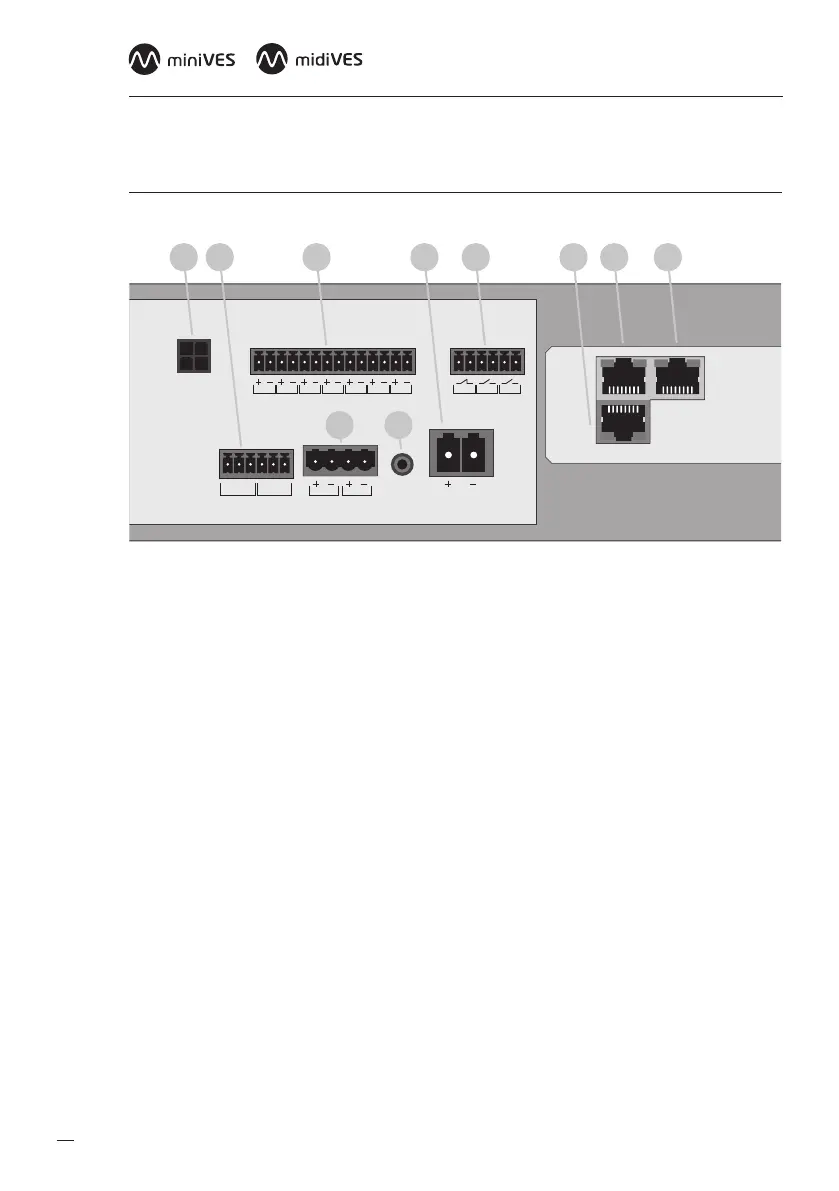

3.1 miniVES L series and midiVES 8003R connector panel
Fig. 5.
BUS1 BUS2
IN7IN6IN5IN4IN3IN2IN1
+48 VDC BATT
Audio IN Audio OUT
C
LR
C
LR
+24 VDC
150 mA
+48 VDC
350 mA
TEMP.
SENSOR
LAN/WAN
LANLAN
OUT3OUT2OUT1
1
4 5
3 76 98 102
Diagram of the connector panel for miniVES series 2001L, 4001L, 4002L and midiVES 8003R
1. Local audio bus outputs for 4 line control card operation
2. Audio input and output (Audio out not available in midiVES 8003R)
3. Logic inputs
4. Auxillary power outputs
5. Battery temperature sensor input jack
6. Main Battery connector
7. Logic outputs
8. 10/100 Mbps Lan/Wan port (PC connection )
9. 10/100/1000 Mbps Lan port
10. 10/100/1000 Mbps Lan port
