3.2 miniVES LN, midiVES 8003 LN and 8003 LNR series connector
panel
miniVES LN series as well as midiVES 8003LN / LNR are equipped with extended xNET_mini 1GB/
WAN/RS network card. Extended interface provides additional POE port, 2 logical inputs/ outputs
and 2 optional SFP ports for bre or copper redundant connection.
Fig. 6.
BUS1 BUS2
IN7IN6IN5IN4IN3IN2IN1
+48 VDC BATT
Audio IN Audio OUT
C
LR
C
LR
+24 VDC
150 mA
+48 VDC
350 mA
TEMP.
SENSOR
LAN/WANRS485
LANLAN PoE
IN1IN2
BA
FIBER
OUT3OUT2OUT1
1
4 5
118 13 14
3 76 9 10 122

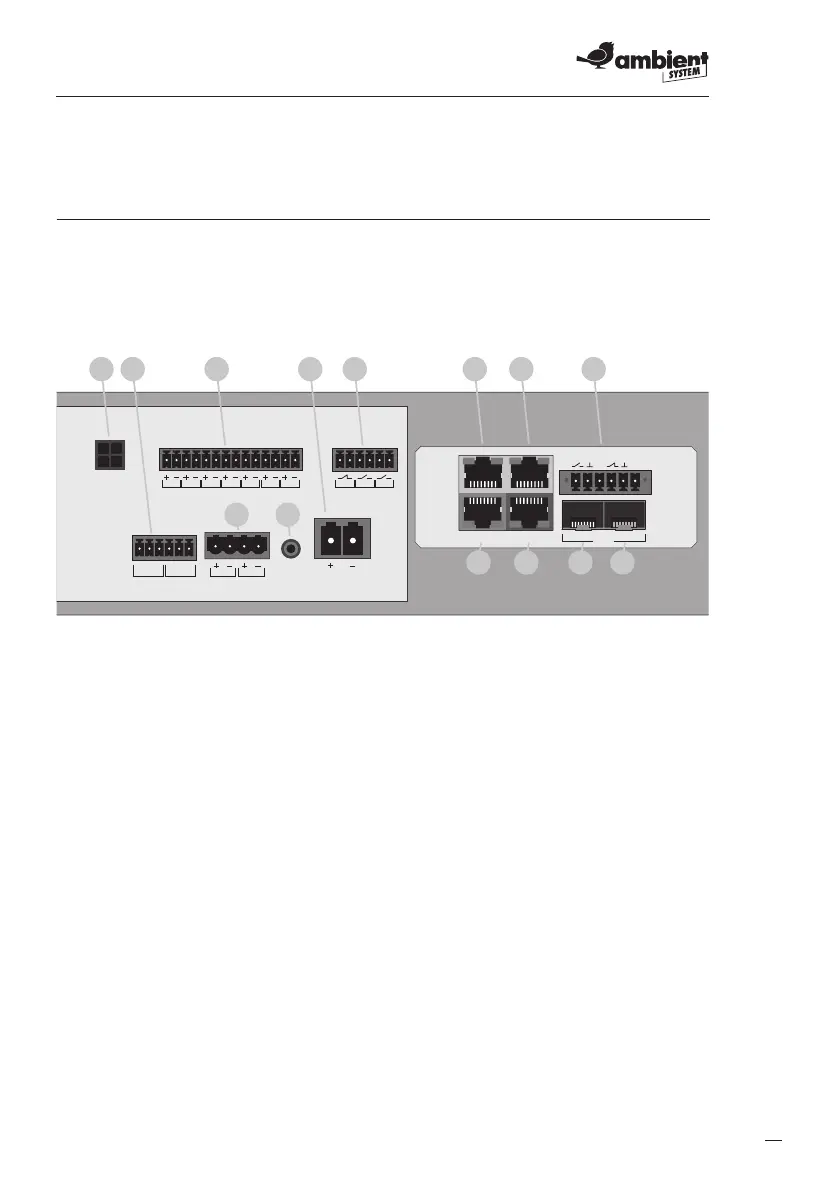

Diagram of the connector panel for miniVES series 2001LN, 4001LN and 4002LN units
1. Local audio bus outputs for 4 line control card operation
2. Audio input and output
3. Logic inputs
4. Auxillary power outputs
5. Battery temperature sensor input jack
6. Main Battery connector
7. Logic outputs
8. 10/100 Mbps Lan/Wan port (PC connection )
9. 10/100/1000 Mbps Lan port
10. 10/100/1000 Mbps Lan port
11. RS485 Port
12. Additional Logic I/O ports
13. SFP module slot B
14. SFP module slot A
