Page 29

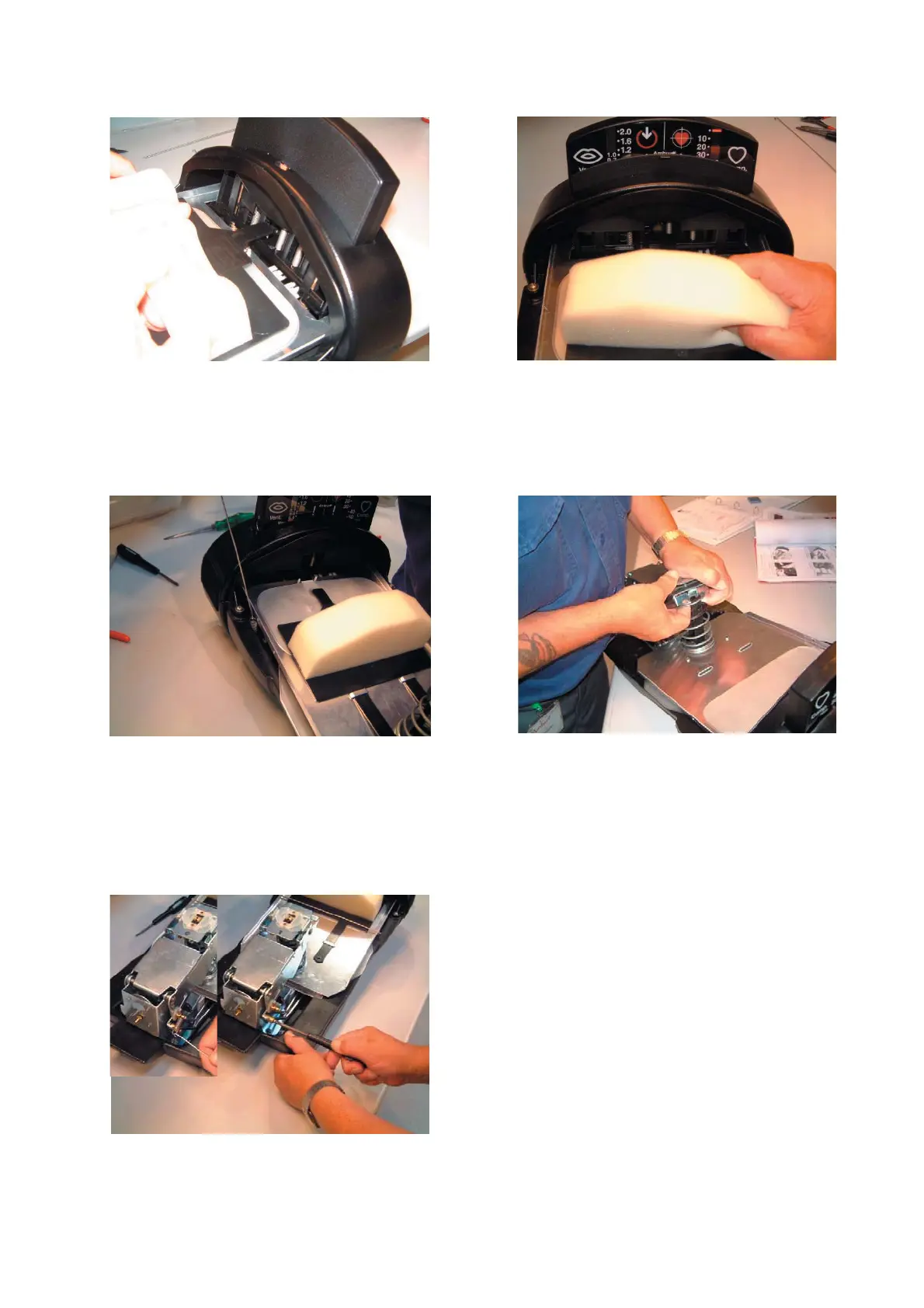

6.3-19 The tag on the stomach plate must now be
inserted between the two round pins on the guide way
for indication of stomach infl ation. Push the tags into
place so that the openings are engaged by the pins on
the stomach plate.
6.3-21 Replace the spring in the opening in the lung
plate.
6.3-23 Mount the tension rods in the bushings, the
plain tension rod being nearest the head. Ensure that
the screws engage the recesses in the tension rods.
6.3-20 Press on both sides of the stomach plate and
push towards the monitoring instrument until the two
busings in the plate engage the two pins on the instru-
ment casing.
6.3-22 Press the rocker lever on over the spring until it
engages.
