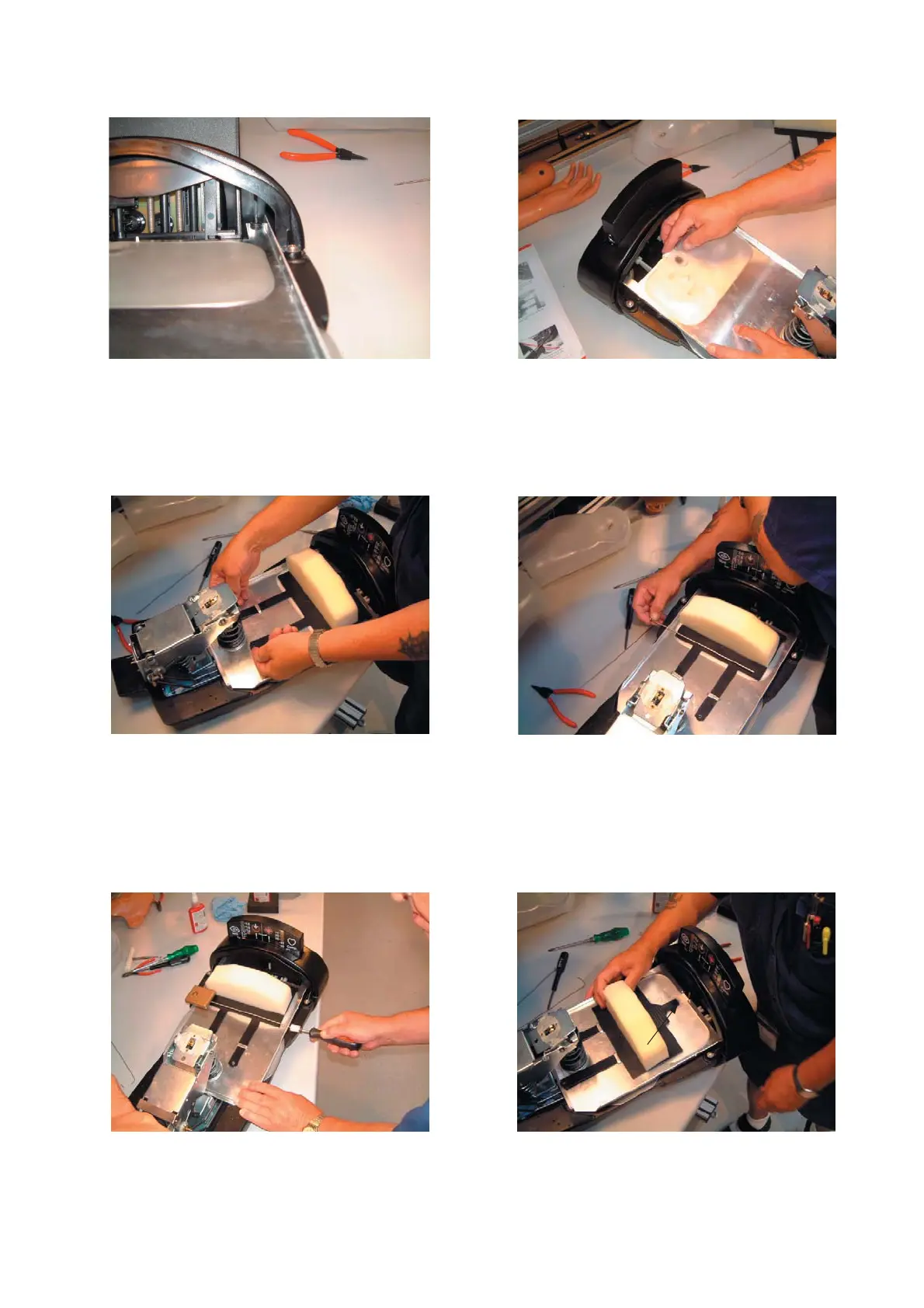

6.3-18 Bend the tap (A) slightly downwards.
6.3-13 Detail from the lung plate placed in the instru-
ment casing.
6.3-15 The holes in the tags must fi t onto the pins on
the lung plate.
6.3-17 Secure the metal bar by putting on the star
washer. The bar must be secured in both ends by star
washers.
6.3-14 Push the lung plate between the stomach bag
and its holder until the two pins engage the holes in the
lung plate.
6.3-16 Insert the metal bar through the hole in the lung
plate.
