▪ N.C: Normally Closed - A Trigger that initiates when an object disrupts the communication line of 2
sensors
▪ N.O: Normally Open - A Trigger that initiates when an object completes the communication line of 2
sensors.

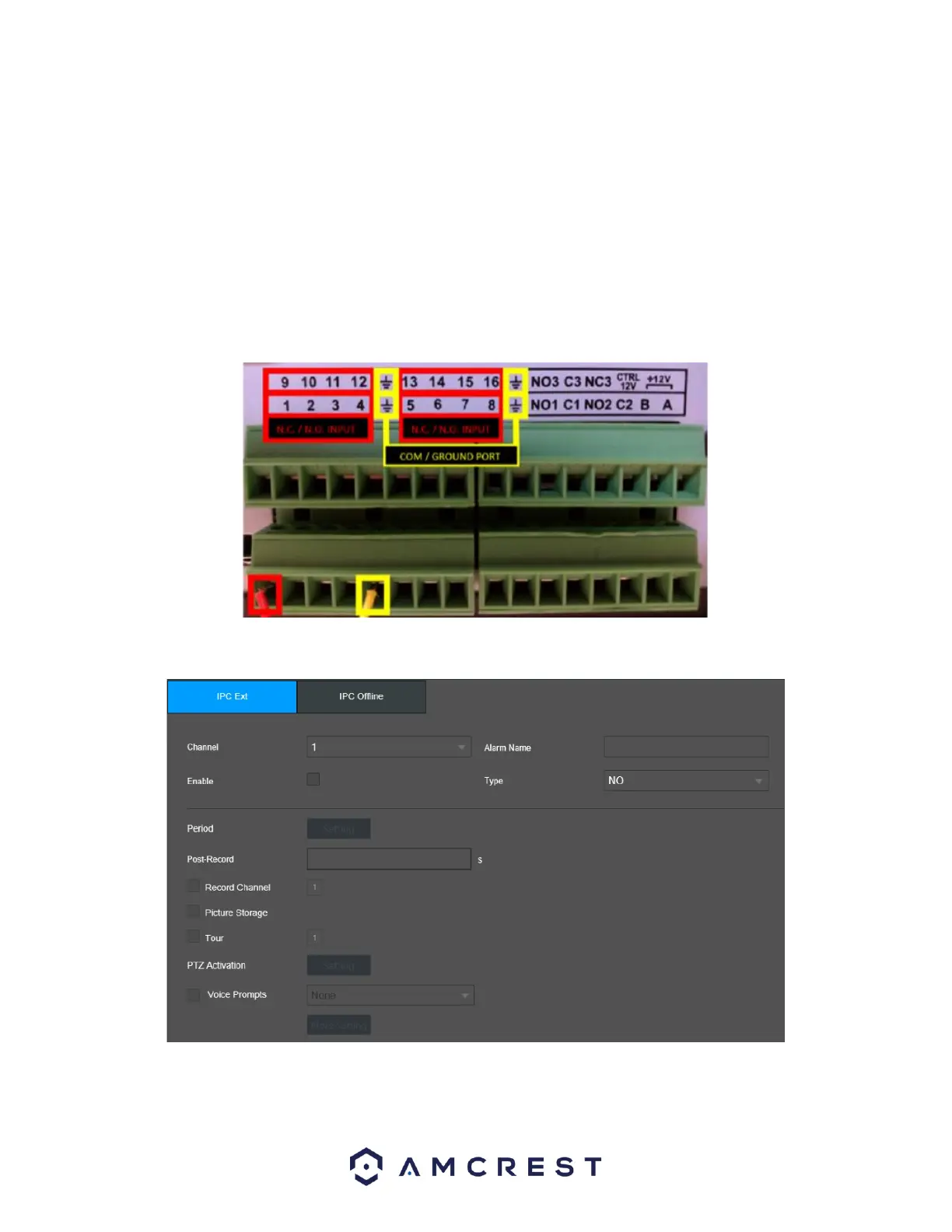

2. Connect the N.C. (Normally Closed) wire to one of the numbered ports. Connect the COM wire to the
COM / Ground Port.
▪ Alarm Inputs are grouped in fours.
▪ Each group uses the Communication/Ground Port on the right. Alarm Inputs are grouped in fours.
Each group uses the Communication/Ground Port on the right.
3. Once the alarm has been physically installed, navigate to the Alarm Input menu, and click Enable.
4. Set the Alarm trigger type.
