5. Align the new workstation card in the primary PCIe slot next to the existing

graphics card and press firmly until the card is fully seated.

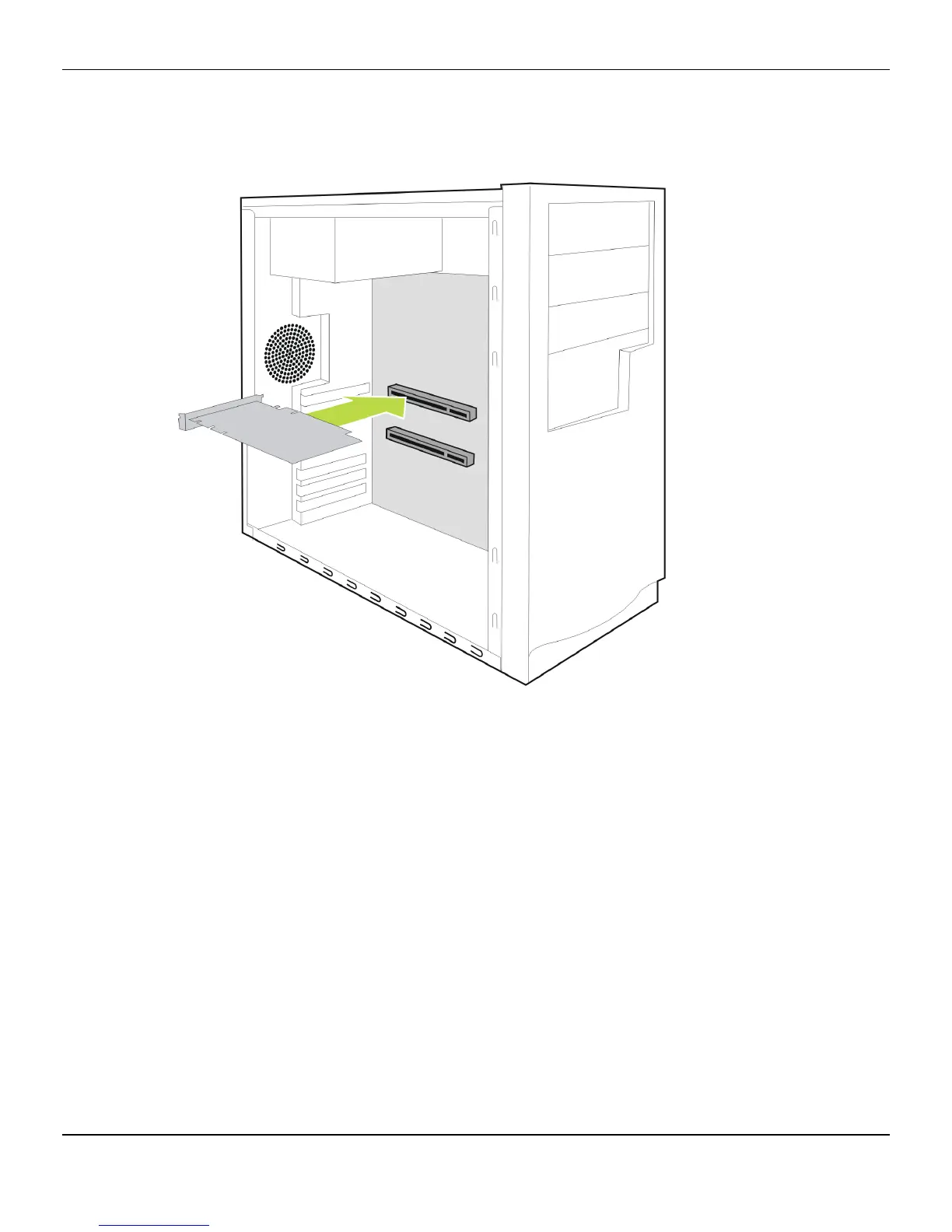

Figure 6–1 AMD FirePro™ Card Installation

Note: You may need to hold open the PCIe card slot-locking mechanism with

your finger when you seat the card.

6. Fasten the workstation card securely to the back panel.

7. Connect external power to the workstation card from the systems power supply,

if necessary.

26 AMD CrossFire™ Pro Technology

AMD FirePro V7900 SDI User Manual
