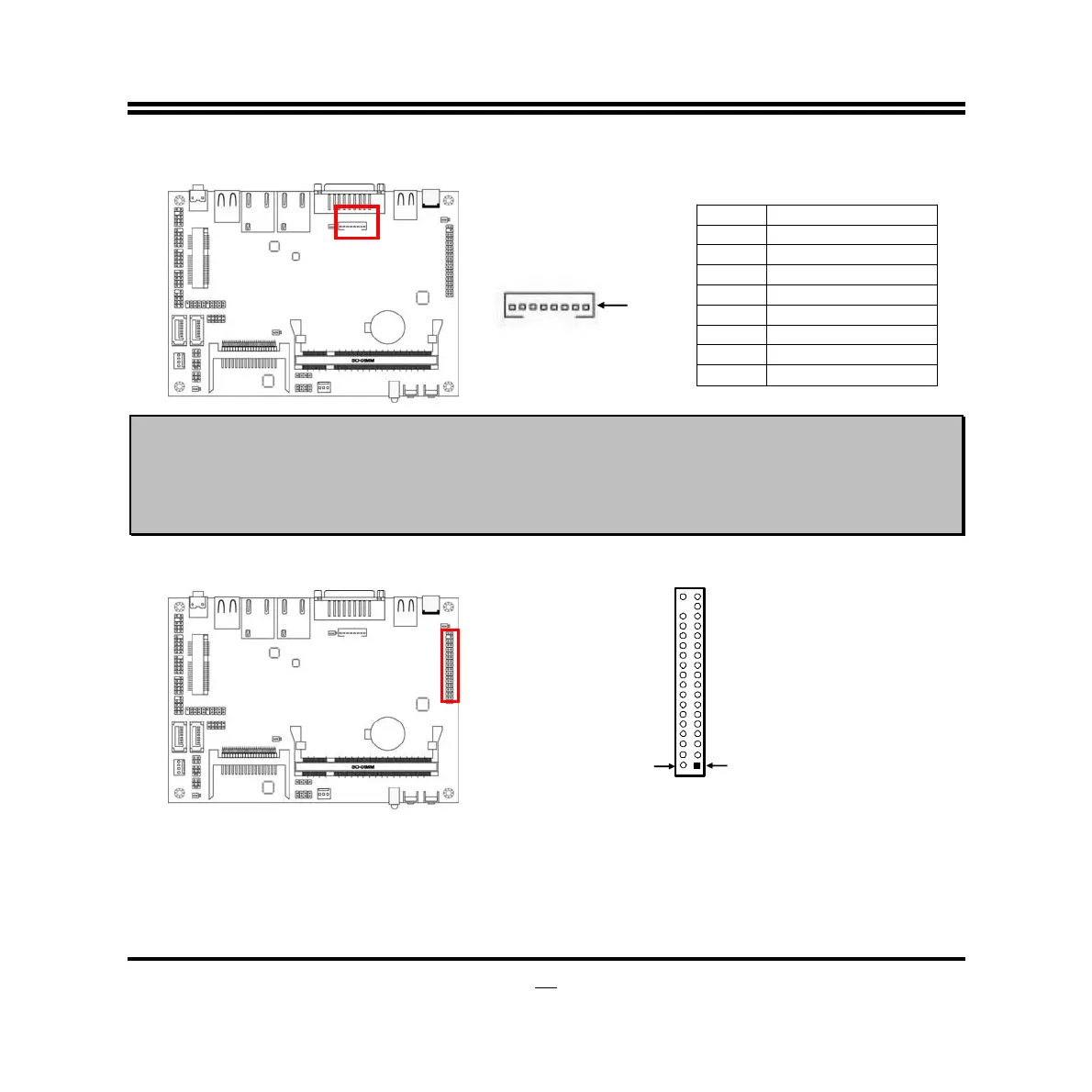

(9) LVDS Inverter (8-pin): INVERTER1

Pin 1

INVERTER1

Pin No. Definition

1 Backlight Enable

2 Backlight Duty

3 PVCC

4 PVCC

5 GND

6 GND

7 Backlight +SW

8 Backlight -SW

Notice!

Inverter pin-out changed from this Revision. Please use correct 8-pin

LVDS inverter cable to plug into this inverter. If you use an incompatible

7-pin LVDS cable for connection, it may cause serious damage to the

board!

(10)LVDS Header (36-pin): LVDS1

Pin 1

LVDS Header

Pin 2
