Ameri-Shred 2 Series - Page 26

26
AMS-1000 Hard Drive Shredder Manual 2016 v.1

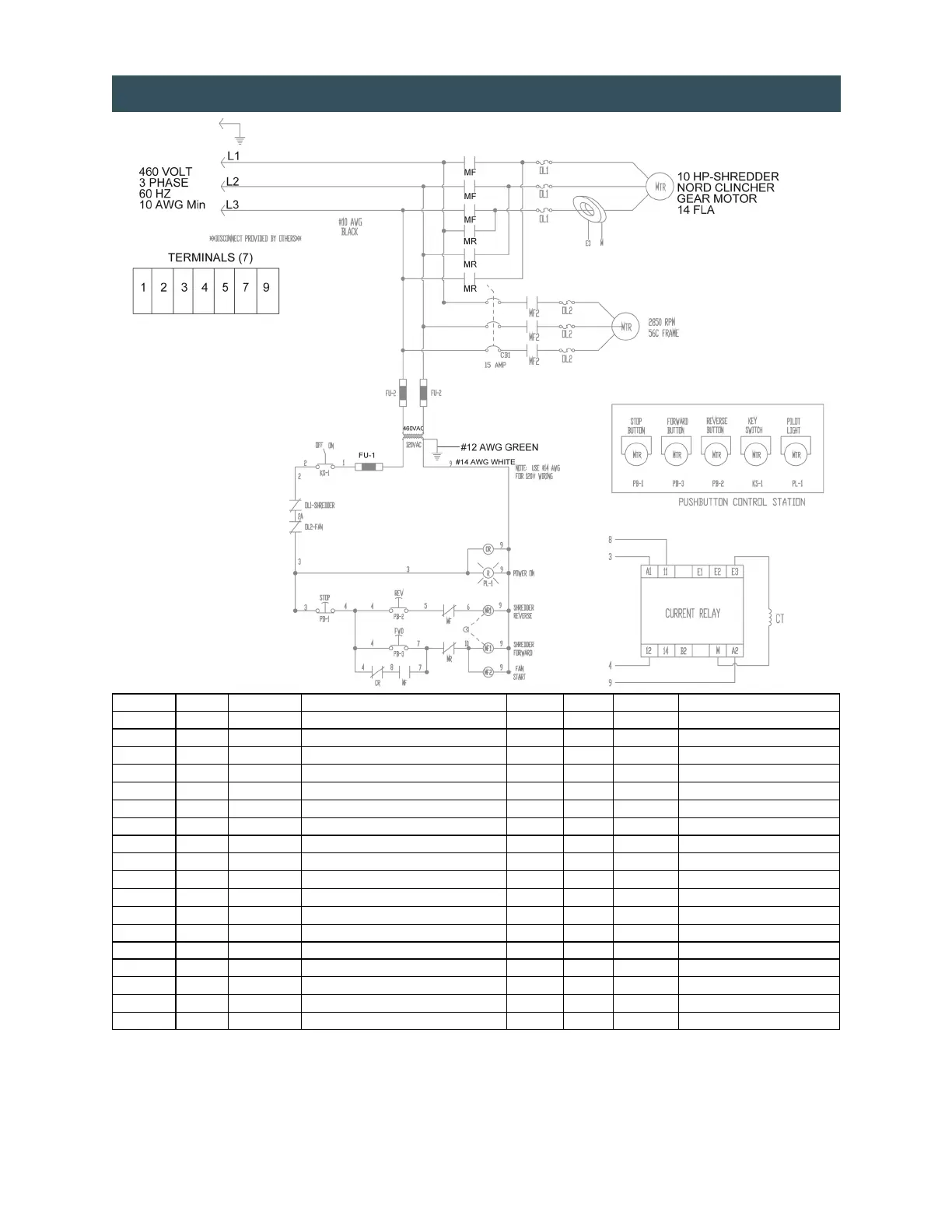

ELECTRICAL DIAGRAM - 10 HP, 460 V 3 PH-60 HZ WITH AIR FILTRATION
ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION
MTR 1 112409 GEAR DRIVE 10 HP 460V - 1 110909 LEGEND PLT-OFF/ON
TRANS 1 104624 TRANSFORMER-50V A 460/230/120V - 1 110911 LEGEND PLT-SHREDDER STOP
MFR 1 111253 CONTACTOR - 1 110912 LEGEND PLT-POWER ON
FU-1 1 104383 FUSE-1 AMP - 4 104695 CONDUIT-1/2"
FU-2 2 104901 FUSE-2 AMP - 2 104700 CONDUIT FTG-1/2" 90 DEG
CT 1 104630 CURRENT TRANSFORMER - 1 104699 CONDUIT FTG-1/2" STR
OL-1 1 111267 OVERLOAD - 1 104635 C.T. MTG BRKT
CR 1 104528 CURRENT RELAY - 7 111747-J4 TERMINAL BLOCK
PB-1 1 104439 PUSHBUTTON-STOP - 1 104449 CONTACT BLOCK
PB-2 1 104441 PUSHBUTTON-REV - 15 104768 WIRE-10 AWG BLACK
PB-3 1 104440 PUSHBUTTON-FWD - 12 104778 WIRE-10/SO CORD
KS-1 1 104442 KEYSWITCH - 75 104763 WIRE-14 AWG RED
PL-1 1 104443 PILOT LIGHT - 1 104224 ENCLOSURE
CB-1 1 111842-15-3 15 AMP-3 POLE BREAKER - 1 104223 BACKPLATE
OL-1 1 111262 OVERLOAD-FAN - 1 111049 PLUG
MF-2 1 111281 STARTER-FAN - 1 111050 RECEPTICLE
- 1 110908 LEGEND PLT SHREDDER REV - 1 104828 CORD GRIP-STRAIN RELIEF
- 1 110907 LEGEND PLT SHREDDER FWD
