Ameri-Shred Series 1 - Page 19

19
Service Department: 888.270.6879
HD-SSD MODELS

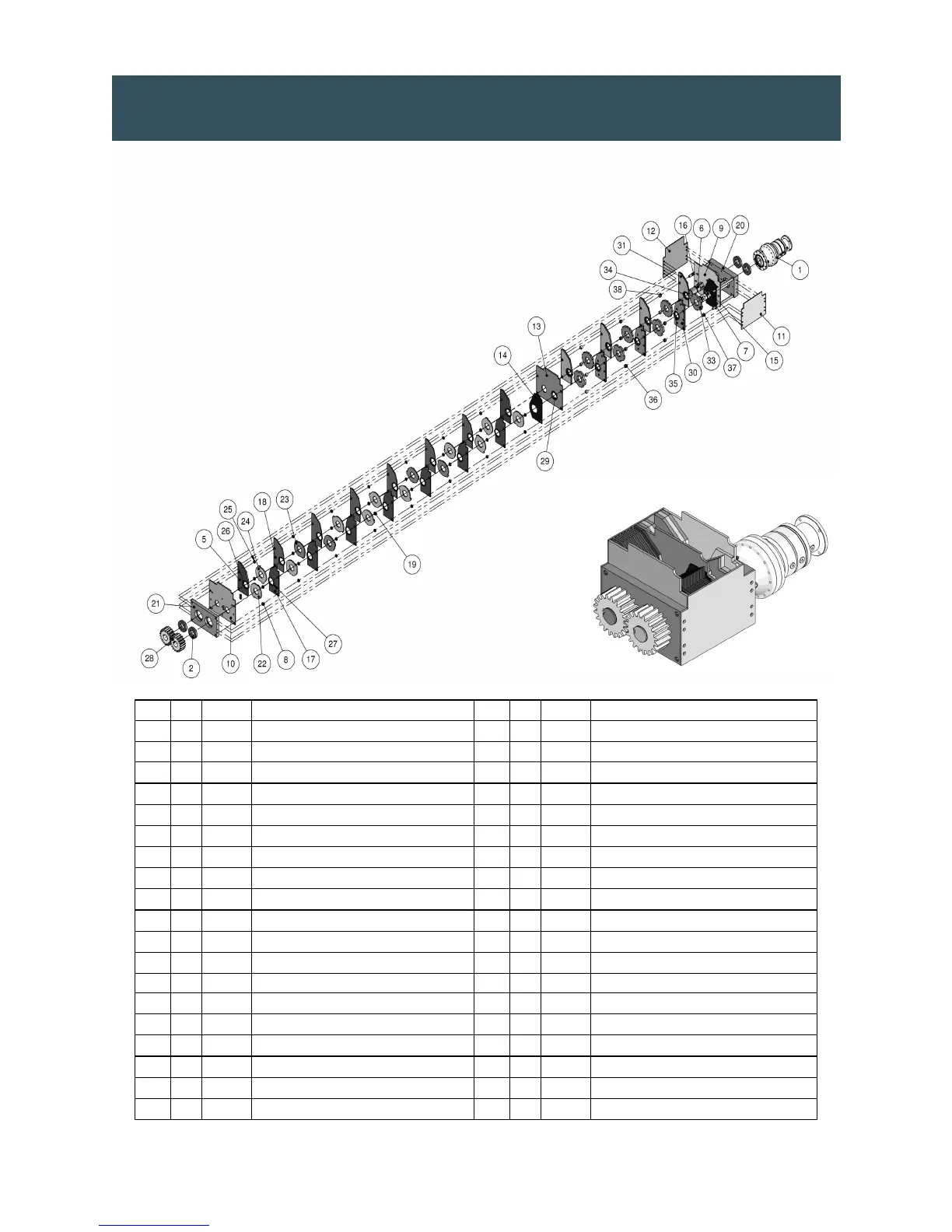

CUTTER HEAD ASSEMBLY - 3/8” & 3/4” SHRED WIDTH
ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION
1 1 N/A GEAR BOX: CONSULT FACTORY 20 1 33584 DRIVER BEARING BLOCK
2 4 111907 BEARING 21 1 33585 IDLE BEARING BLOCK
3 1 34592 WEAR BLOCK 22 5 34267
SSD CUTTER STYLE 1
4 1 34886 WEAR BLOCK 23 4 34268
SSD CUTTER STYLE 2
5 2 34590 SSD OUTSIDE COMBER 24 6 34269
SSD CUTTER STYLE 3
6 1 34589 IDLER SHAFT 25 4 34272
SSD OUTSIDE TIE BAR SPACERS IDLER SIDE
7 1 34588 DRIVE SHAFT 26 2 34275
SSD OUTSIDE SHAFT SPACER
8 4 34586 SSD TIE BAR OUTSIDE SPACER DRIVE SIDE 27 13 34276
SSD SHAFT SPACER
9 1 34463 SIDE PLATE DRIVE SIDE 28 2 110016
SPUR GEAR
10 1 34462 SIDE PLATE SPUR GEAR SIDE 29 1 34887
DIVIDER SHAFT SPACER
11 1 34582 END PLATE REDUCER SIDE 30 3 344580
REAR COMBER
12 1 34581 END PLATE IDLER SIDE 31 4 34457
FRONT COMBER
13 1 34580 DIVIDER SIDE PLATE 32 3 33617 IDLER SHAFT CUTTER
14 1 34872 SPACER PASS THRU COMBER 33 4 33616
DRIVE SHAFT CUTTER
15 1 34579 SSD OUTSIDE COMBER 34 2 33663
HD DOUBLE SHAFT SPACER
16 4 34578 COMBER TIE BARS 35 5 33587
HD SINGLE SHAFT SPACER
17 7 34576 SSD REDUCER SIDE COMBER 36 6 34983
TIE BAR SPACER
18 6 34577 SSD IDLER SIDE COMBERS 37 4 34984
TIE BAR SPACER
19 22 34575 SSD TIE BAR SPACERS 38 4 34985
TIE BAR SPACER
