Ameri-Shred Series 1 - Cutter Assembly - Hd-Ssd Models

18
Service Department: 888.270.6879
HD-SSD MODELS

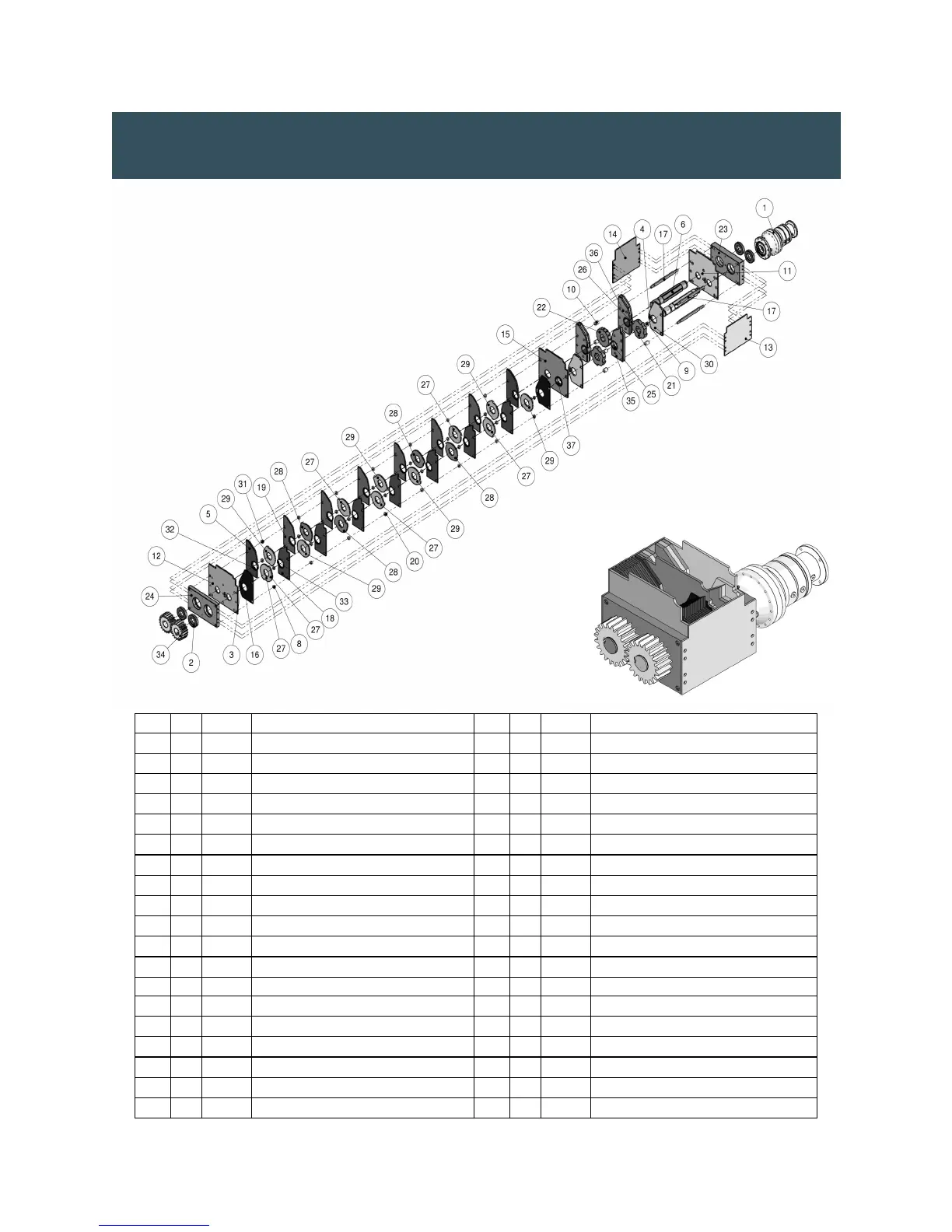

CUTTER HEAD ASSEMBLY - 3/8” & 1-1/2” SHRED WIDTH
ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION
1 1 N/A GEAR BOX: CONSULT FACTORY 20 22 34575 SSD TIE BAR SPACERS
2 4 111907 BEARING 21 2 33616 DRIVE SHAFT CUTTER
3 1 34592 WEAR BLOCK 22 1 33617
IDLE SHAFT CUTTER
4 1 34591 WEAR BLOCK 23 1 33584
DRIVE BEARING BLOCK
5 2 34590 SSD OUTSIDE COMBER 24 1 33585
IDLER BEARING BLOCK
6 1 34589 IDLER SHAFT 25 1 33587
HD SINGLE SHAFT SPACER
7 1 34588 DRIVE SHAFT 26 2 33663
HD DOUBLE SHAFT SPACER
8 4 34586 SSD TIE BAR OUTSIDE SPACER DRIVE SIDE 27 5 34267
SSD CUTTER STYLE 1
9 4 34584 HD TIE BAR SPACER DRIVE SIDE 28 4 34268
SSD CUTTER STYLE 2
10 2 35483 HD TIE BAR SPACER IDLER SIDE 29 6 34269
SSD CUTTER STYLE 3
11 1 34463 SIDE PLATE DRIVE SIDE 30 2 34464
HD OUTER COMBER
12 1 34462 SIDE PLATE SPUR GEAR SIDE 31 4 34272
SSD OUTSIDE TIE BAR SPACERS IDLER SIDE
13 1 34582 END PLATE REDUCER SIDE 32 2 34275 SSD OUTSIDE SHAFT SPACER
14 1 34581 END PLATE IDLER SIDE 33 13 34276
SSD SHAFT SPACER
15 1 34580 DIVIDER SIDE PLATE 34 2 110016
SPUR GEAR
16 2 34579 SSD OUTSIDE COMBER 35 1 34460
HD SINGLE COMBER
17 4 34578 COMBER TIE BARS 36 2 34459
HD DOUBLE COMBER
18 7 34576 SSD REDUCER SIDE COMBER 37 1 34845
DIVIDER SPACER
19 6 34577 SSD IDLER SIDE COMBERS
