American Eagle 200 - Pressure Setting Instructions

Installation 7
Pressure Setting Instructions
Pressure Setting Instructions:
1. Always set the kick out pressure setting first. 145 psi minimum/150 psi maximum.
2. After kick out pressure is set, adjust the kick on screw setting at 115 psi minimum/120
psi maximum.
3. Cycle compressor to verify correct settings.
4. For questions about this procedure, please contact Stellar Customer Service.

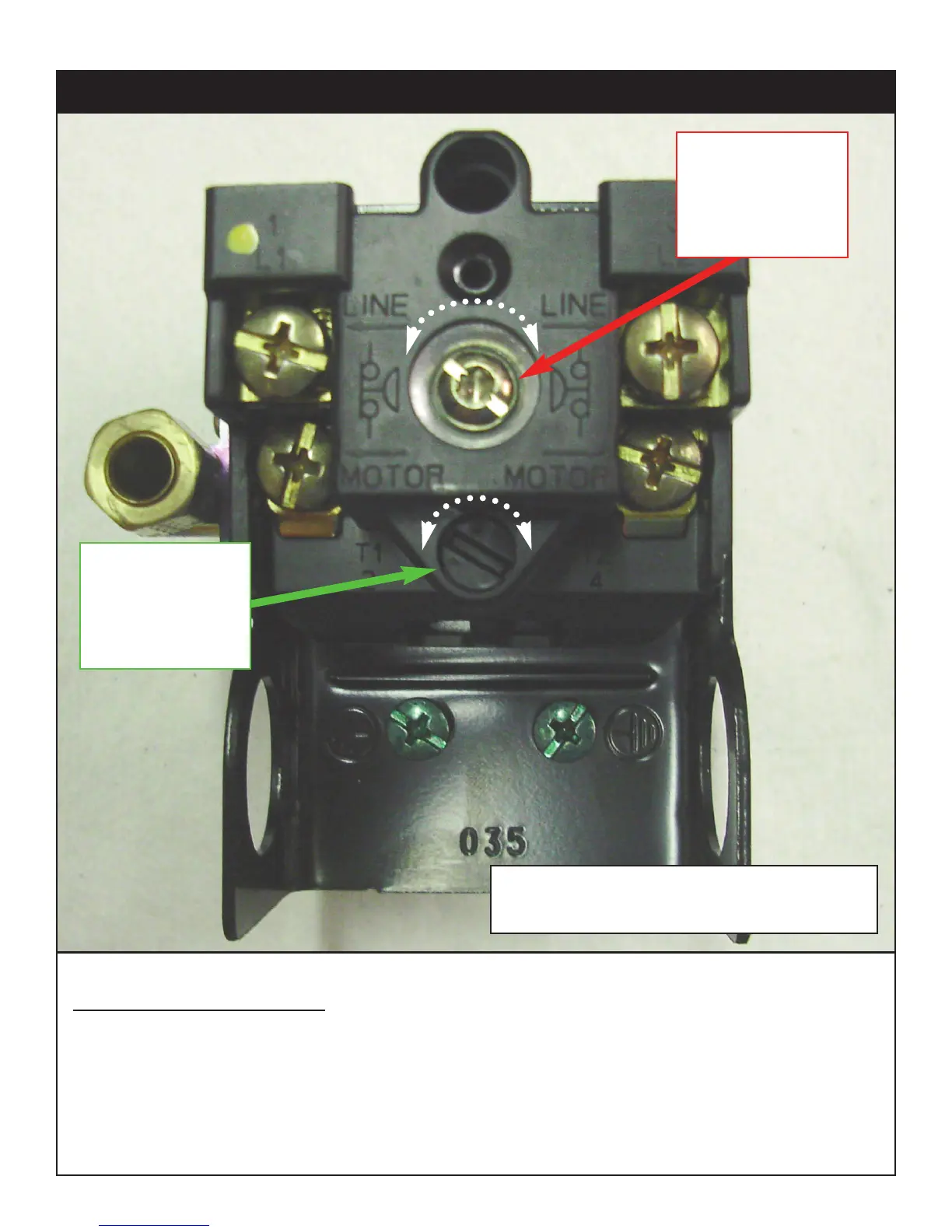

Kick On (Step 2)
Pressure Setting
Adjustment
Screw
(115-120 psi)
Kick Out (Step 1)
Pressure Setting
Adjustment
Screw
(145-150 psi)
Note: Turning adjustment screws clockwise
increases psi settings. Turning adjustment screws
counterclockwise decreased psi settings.
+
+
-
-
