American Eagle 200 - Crankcase Group (Straight Shaft)

Assembly Drawings 9

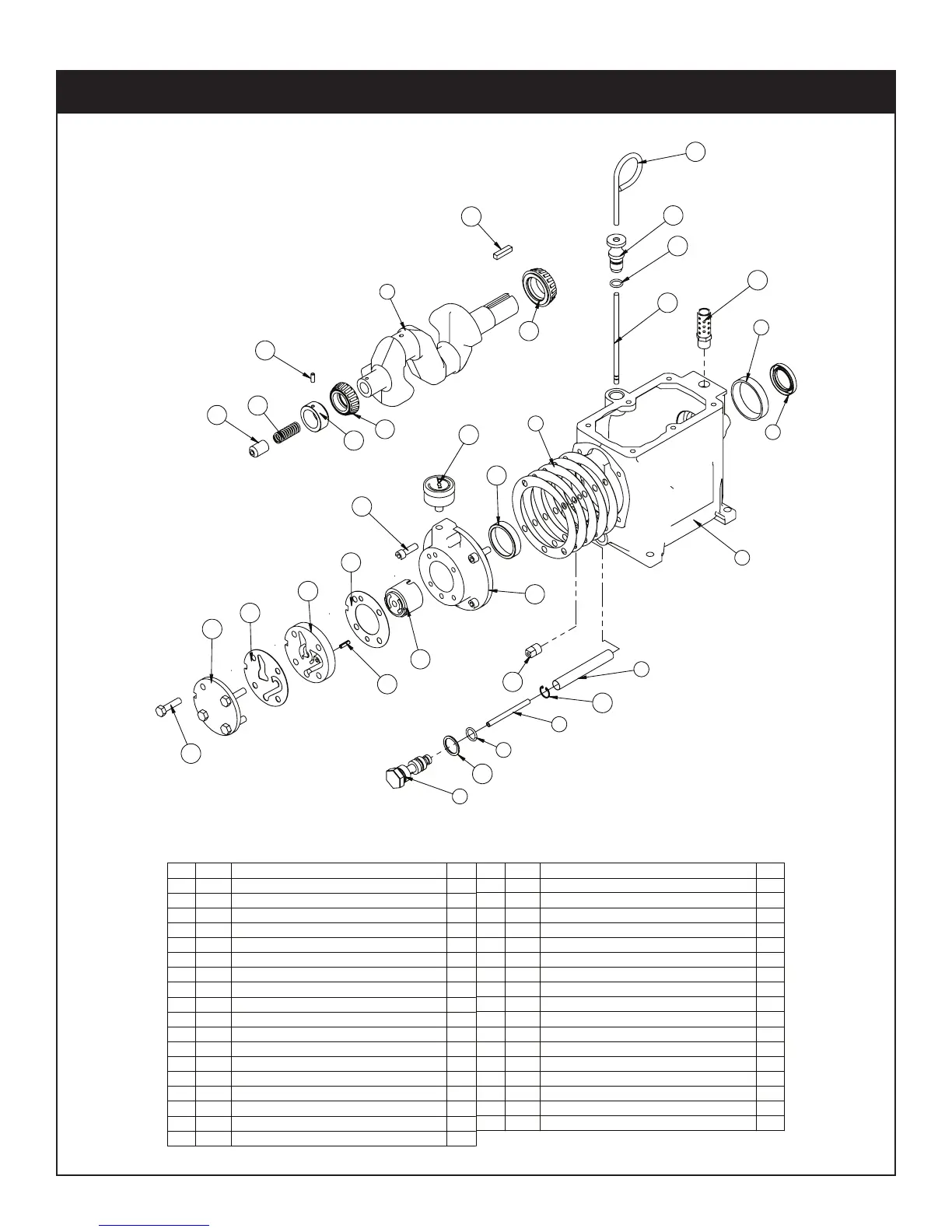

Crankcase Group (Straight Shaft)
17
15
14
16
11
8
12
2
5
4
6
33
27
24
23
22
20
21
19
18
25
32
10
13
3
26
9
1
7
28
30
29
31
34
35
ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY.
1 5791 CRANKCASE 200 O/S 1
2 5788 PLUG OIL INTAKE FILTER-200 1
3 5811 GASKET BEARING CARRIER-200 (.015) 5
4
5785 TUBE OIL INTAKE .25ODX3.00 1
5
5787 O'RING OIL INTAKE FILTER-200 1
6 5784 SCREEN OIL INTAKE FILTER-200 1
7
C6268 BEARING SEAL V480 1
8 22836 CRANKSHAFT 200 S O/S 1
9 C1163 BEARING CUP (LM67010) 1
10
C1164 BEARING CUP (L44610) 1
11 C0855 BEARING CONE 1
12 C0856 BEARING CONE LM67048 1
13
6835 BEARING CARRIER 200 1
14 5820 OIL PUMP DRIVE SLEEVE V480/V360/200 1
15 C0060 SPRING OIL PUMP 1
16 5817 ROLL PIN 0.19X.50 1
17
C0059 OIL PUMP TRANSFER BUSHING 1
18 C0050 OIL PUMP 1
19 C6275 PORT PLATE GASKET 1
20 C0052 PORT PLATE MACHINED 1
21 22209 ROLL PIN 0.19X.63 1
22 C0054 PORT PLATE COVER GASKET (SMALL) 1
23 22626 1
24 0485 CAP SCR 0.31-18X1.25 HHGR5 4
25 6034 SCREW 0.31-18X1.00 SHC 4
26 20683 BREATHER CPRSR .38NPT B38 200 1
27 5790 PLUG 0.25 NPT SQ HD 1
28 23049 DIPSTICK ROD (200) 1
29
23050 DIPSTICK BODY (200) 1
30
C0041 O'RING-112 1
31 22686 HANDLE DIPSTICK OIL CHECK V480 1
32 5819 GAUGE OIL PSI 1.5 1
33 C6273 SNAP RING PISTON PIN N5000-62 1
34
23047 1
35 50389 WASHER 0.885X1.115X0.064 COPPER 1
