American Eagle 200 - Assembly Drawings; Crankcase Group (Tapered Shaft)

8 Class 2 Compressor Owner’s Manual

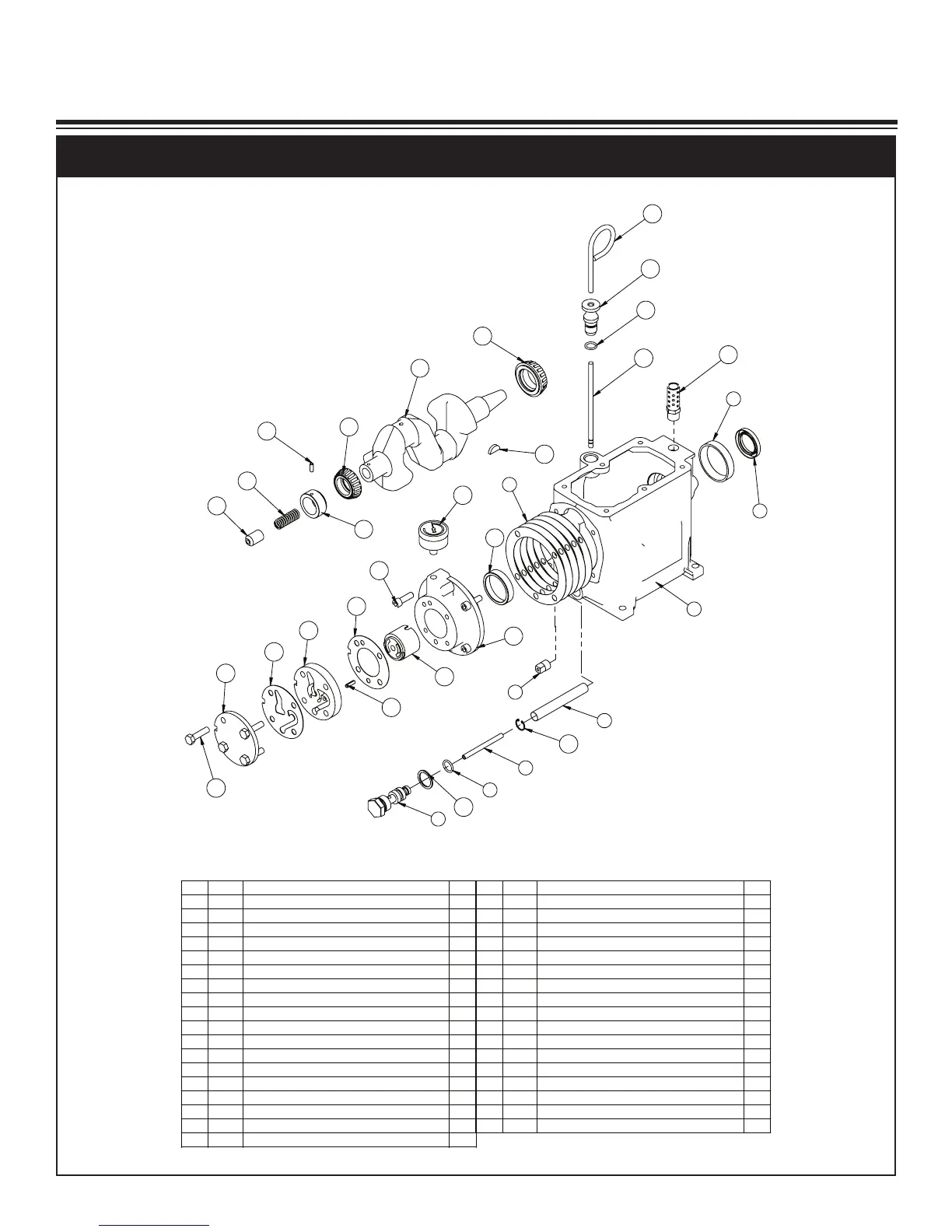

Crankcase Group (Tapered Shaft)
Assembly Drawings
17
16
14
15
13
11
12
32
29
31
30
10
9
8
1
5
6
33
4
3
2
25
24
20
22
23
21
26
27
28
18
19
7
34
35
ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY.
1 5791 CRANKCASE 200 O/S 1
2 5788 PLUG OIL INTAKE FILTER-200 1
3 5787 O'RING OIL INTAKE FILTER-200 1
4 5785 TUBE OIL INTAKE .25ODX3.00 1
5 5784 SCREEN OIL INTAKE FILTER-200 1
6 5790 PLUG 0.25 NPT SQ HD 1
7 5811 GASKET BEARING CARRIER-200 (.015) 5
8 C1163 BEARING CUP (LM67010) 1
9 C6268 BEARING SEAL V480 1
10 20683 BREATHER CPRSR .38NPT B38 200 1
11 5782 CRANKSHAFT 200 TAPER O/S 1
12 C0856 BEARING CONE LM67048 1
13 C0855 BEARING CONE 1
14 5820 OIL PUMP DRIVE SLEEVE V480/V360/200 1
15 5817 ROLL PIN 0.19X.50 1
16 C0060 SPRING OIL PUMP 1
17 C0059 OIL PUMP TRANSFER BUSHING 1
18 6835 BEARING CARRIER 200 1
19 C1164 BEARING CUP (L44610) 1
20
C0054 PORT PLATE COVER GASKET (SMALL) 1
21 C6275 PORT PLATE GASKET 1
22
C0052 PORT PLATE MACHINED 1
23 22209 ROLL PIN 0.19X.63 1
24 22626 PORT PLATE COVER 1
25
0485 CAP SCR 0.31-18X1.25 HHGR5 4
26 C0050 OIL PUMP 1
27 6034 SCREW 0.31-18X1.00 SHC 4
28 5819 GAUGE OIL PSI 1.5 1
29 23050 DIPSTICK BODY (200) 1
30 23049 DIPSTICK ROD (200) 1
31 C0041 O'RING-112 1
32 22686 HANDLE DIPSTICK OIL CHECK V480 1
33
C6273 SNAP RING PISTON PIN N5000-62 1
34
C4703 KEY WOODRUFF 5/32 X 3/4 #8 1
35 50389 WASHER 0.885X1.115X0.064 COPPER 1
