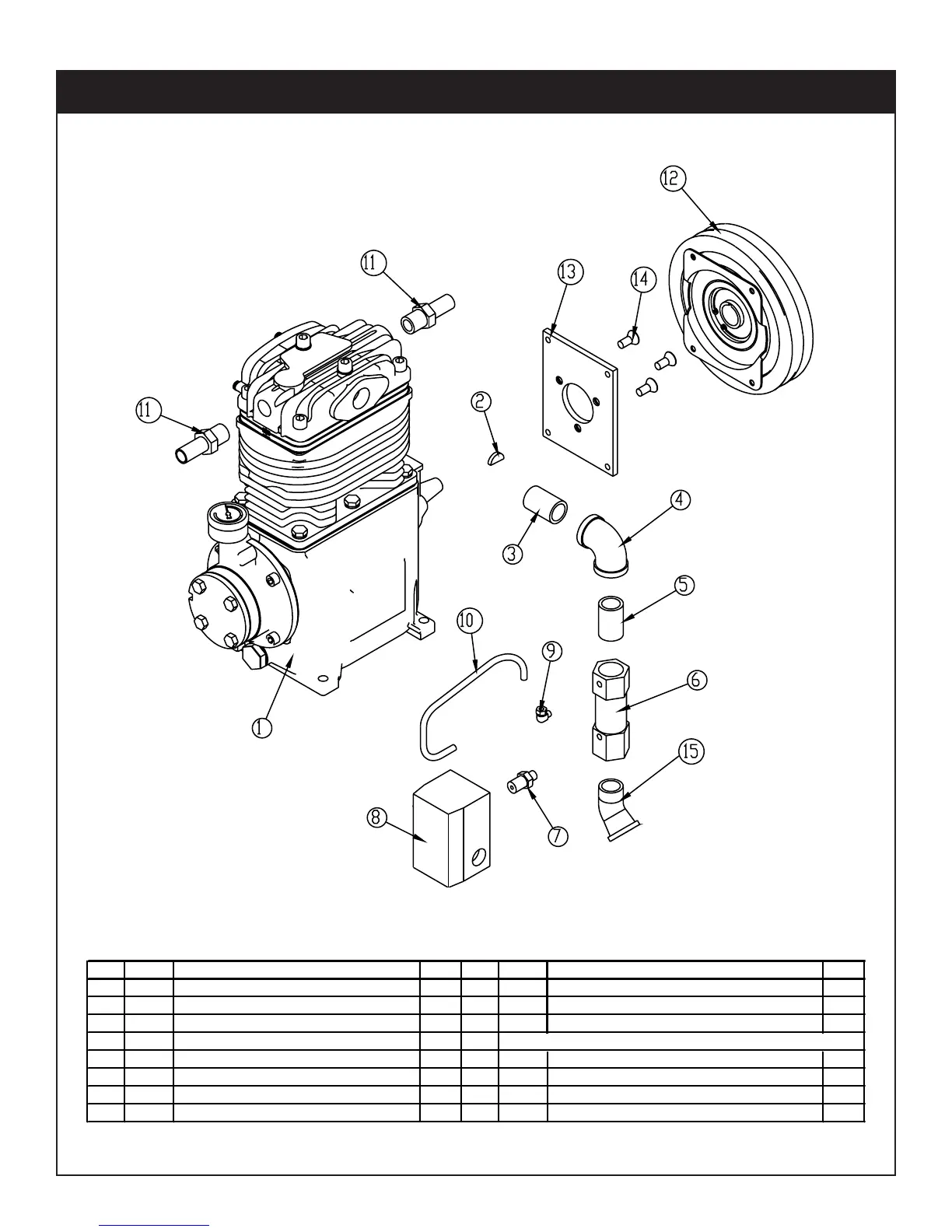

COMPRESSOR ASSEMBLY
.YTQNOITPIRCSEDTRAPMETI.YTQNOITPIRCSEDTRAPMETI
1 5779 CPRSR 200CWI6NP 1 9 D0240 FTG ELL 0.13 CPRSN TUBE TO NPT 1
2 C4703 KEY WOODRUFF 5/32 X 3/4 #8 1 10 25678 TUBE COPPER 0.25X10.00 SUH-30 1
3 20453 NIPPLE 0.75X1.50 BRASS 1 11 C2279 FTG HOSE BARB 0.50 HOSE X 0.50 MNPT 2
4 D1266 FTG 0.75 ELBOW BRASS 1 12 SEE PAGE 15 FOR CLUTCH OPTIONS
5 D1264 FTG 0.75-CLOSE RED BRASS NIPPLE 1 13 5778 ADAPT CLUTCH PLATE 200 1
6 5480 VALVE CHECK 0.75 STANDARD 1 14 5777 CAP SCR 0.31-18X0.75 FHSH 3
7C6101 FTG 0.25-0.13 FF HEX NIPPLE 1 15 D1869 FTG 0.75-45 DEG ELBOW BRASS 1
8C0863 SWITCH PRES COMPRESSOR 1 17
