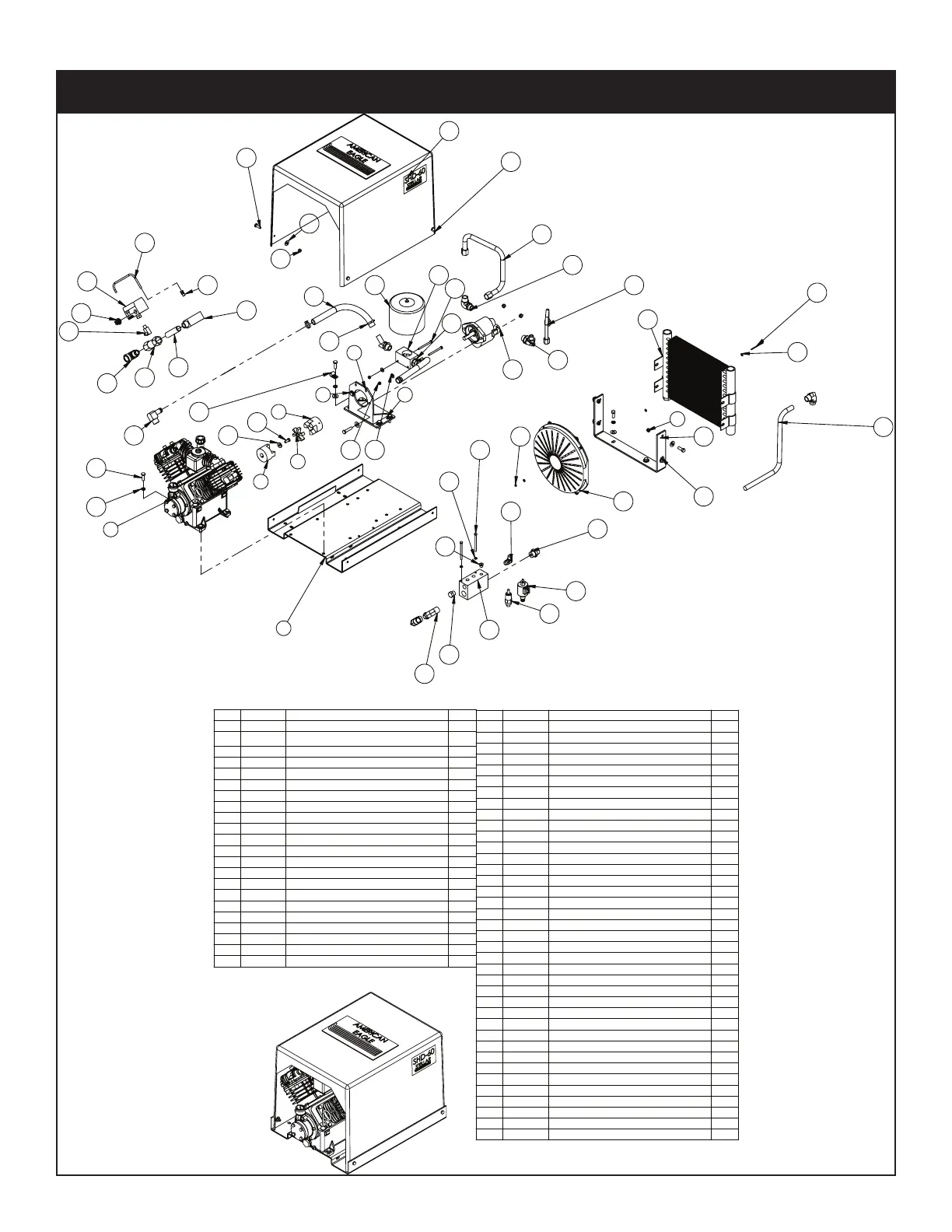

American Eagle SHD-60 - SHD-60 Compressor Assembly

Assembly Drawings 17
58
43
59
55
29
15
44
27
54
52
14
25
18
9
12
13
51
53
28
23
26
22
21
24
16
20
19
17
39
60
38
7
4645
2
1
5
48
4
47
8
3
6
10
11
41
49
42
33
32
31
35
50
36
30
37
34
40
56
57
ITEM PART DESCRIPTION QTY.
1 B0820 BASE WLDMNT SHD 60 1
2
19644PC
BRKT MOTOR MOUNT 19644
POWDERCOAT
1
3
13523 CPRSR V480CT66NP 1
4
C3480 COUPG HYD CPRSR TAPER 1
5
C4779 COUPG SPIDER SUL 99 BLUE URETHANE 1
6
C4781 COUPLING LOVEJOY 5/8 1
7
C6353 WASHER 0.38 FLAT GR8 12
8 C0944 CAP SCR 0.38-16X1.75 HHGR5 2
9
0347 NUT 0.38-16 HH NYLOC 6
10 0523 WASHER 0.38 LOCK 10
11 0335
CAP SCR 0.38-16X1.25 HHGR5 8
12 B0682 BRKT COOLER MOUNT SHD60 1
13 0351 CAP SCR 0.38-16X1.00 HHGR5 6
14 C1129 COOLER OIL 1
15 C6145 FTG 90 DEG 3
16 C3558 MANIFOLD BLOCK SHD60 1
17 C6379 FTG SWIVEL NUT ELBOW 12-C6X-S 1
18 C4766 TUBE ASM 0.75 MANIF TO CLR SHD60 1
19 C2322 PLUG 1/2 STR THRD 8-P5ON-S 1
20 0521 WASHER 0.25 LOCK 2
21 0483 CAP SCR 0.25-20 X 3.50 HHGR5 2
22 C4914 VALVE RELIEF CP-200-1-B-0-A-C 1
ITEM PART DESCRIPTION QTY.
23 C4499 VALVE SOLND 1
24 C4961 PLUG STR HOLLOW HEX 0.38 6-HP5ON 1
25 C4671 FTG 8-12 C50X JIC 90 DEG 1
26 C4501 FTG 8 C50X 90 DEG ELL 1
27 C2297 TUBE ASM 0.50 MANIF TO MOTOR SHD60 1
28 C4498 FTG ORB/JIC STRT CONNT 12-F5OX-S 1
29 C4954 TUBE ASM 0.50 MANIF TO MOTOR SHD60 1
30 8278 FTG ST L 0.75 MNPT/0.125 FNPT SPL 1
31 4581 NIPPLE 0.75X4.00 BRASS 1
32 5480 VALVE CHECK 0.75 STANDARD 1
33 C6150 ST EL ML/FM PIPE 2102-12-12 1
34 D1345 FTG CPRSN 0.12NPT/0.25 TUBE 1
35 8276 FTG ML ELBOW 0.25 MNPT/0.125 MNPTSPL 1
36 C0863 SWITCH PRES COMPRESSOR 1
37 14267 TUBING COPPER 0.25 X 9.00 1
38 12180 FILTER MANIFOLD SHD60 CPRSR 1
39 C4794 NIPPLE O'RING 45 4603-12-12 2
40 14600 HOSE SUCTION 0.75 X 13.00 2
41 13638 FTG HOSE BARB 0.75 HOSE X 0.75 90DG 2
42 13577 CLAMP UNI 1.19 O.D. 5019 4
43 13529 FILTER AIR SHD60 1
44 0482 CAP SCR 0.25-20 X 3.00 HHGR5 2
45 0333 NUT 0.25-20 HHGR5 NYLOC 2
46 0340 WASHER 0.25 FLAT 4
47 D1465 WASHER 0.31-0.178 THICK 1
48 C4570 CAP SCR 0.31-24X0.75 HH NF 1
49 C0081 CLAMP 0.50 BLK VINYL 1
50 C5616 CLAMP ROMEX 0.50 1
51 C6359 FAN 12.00 PULL 12 VOLT 1
52 5290 WASHER #8 SAE FLAT ZP 6
53 D0076 NUT #6-32 HH NYLOC 2
54 D0075 SCREW #6-32X2.75 RH HD MACHINE 2
55 C4695 HOOD F/G SHD60 1
56 C0922 CAP SCR 0.31-18X1.00 HHGR5 4
57 0343 WASHER 0.31 USS FLAT ZINC 4
58 0342 NUT 0.31-18 HH NYLOC 4
59 C4500 DECAL SHD60 2
60 51841 MOTOR HYD SHD60 & SHD43 1.93 CID 1
