14 FieldWiring
Note:Allfieldwiringmustbedonebyalicensedelectricianincompliancewiththenationalandlocalelectricalcodes.
Note:Electricianmustprovideseal‐offsateveryconduitentryonthewarmandcoldsideofpanels.Sealinsideandaroundall
conduitswherepassingthroughpanels.
WireColorCode(fieldwiringonly)
Black(1ea)andWhite(1ea)–Mainpowerwires,terminatedinsidethevaporprooflightfixtureorstubbedout.Electricianwill
providethegroundwire,seeelectricalschematicatchapter14.1ofthisdocument.
Red(1ea)–Outputtofieldmountedlightfixturewire,terminatedinsidethevaporprooflightfixtureorstubbedout,seeelectrical
schematicatchapter14.2inthisdocument
Brown(1ea)–Outputtoremotebuzzerwire,terminatedinsidethevaporprooflightfixtureorstubbedout,seeelectricalschematic
atchapter14.3inthisdocument
Blue(1ea)andYellow(1ea)–3WAY/MultiWayconfigurationwires,terminatedinsidethevaporprooflightfixtureorstubbedout,
seeelectricalschematicatchapter14.4ofthisdocument
Whitewithbluestripe(2ea)–alarmdrycontactwires,terminatedintherectangularconnectionboxlocatednexttothevapor
prooflightfixture,orstubbedout,seechapter14.5ofthisdocument.
Purple(2ea)–evaporatorfancutoutswitch(closedwhenthedoorisclosed),terminatedintherectangularconnectionboxnextto
thevaporprooflightfixture,orstubbedout,seechapter14.6ofthisdocument.

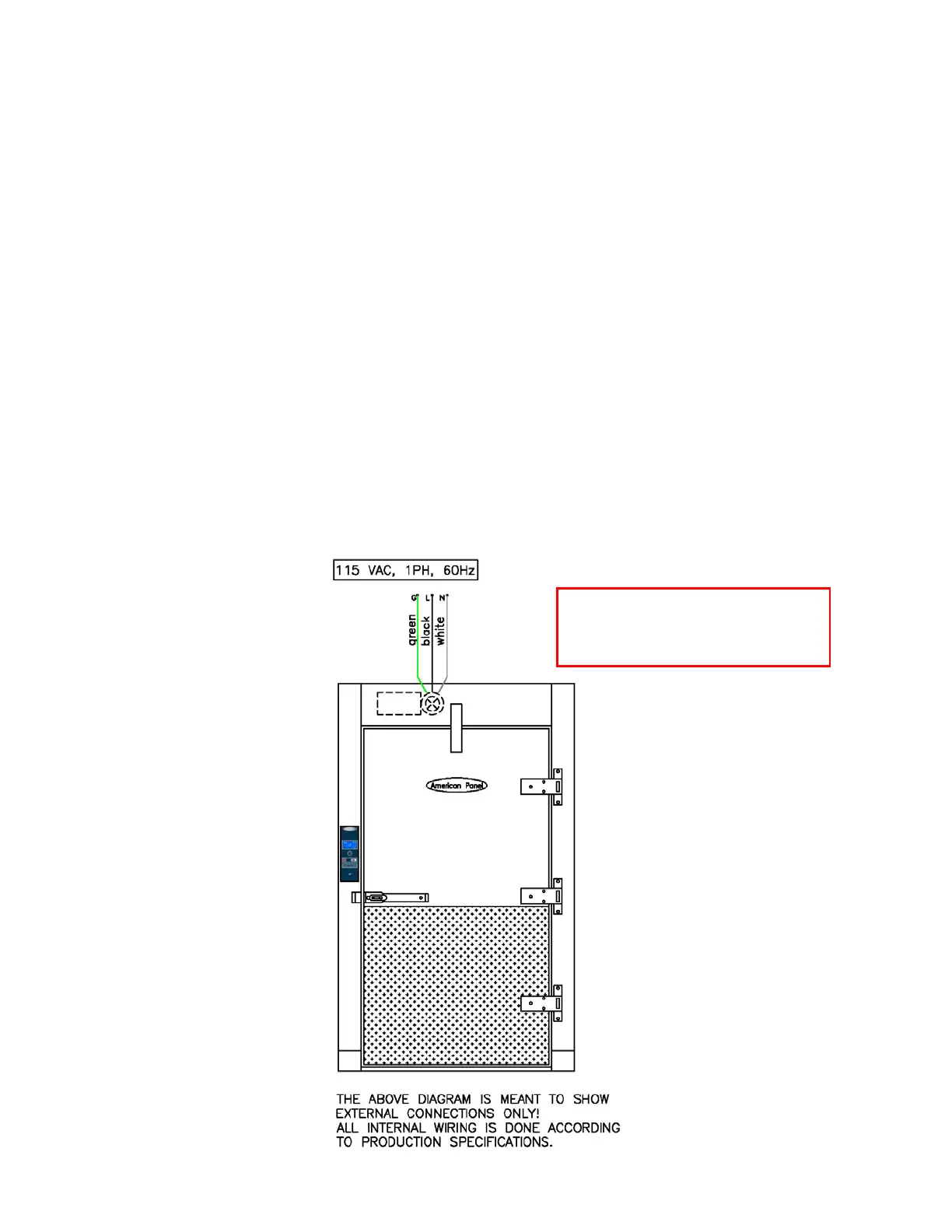

14.1 MainPower
Makealltheconnectionsinsidethevaporprooflightfixturelocatedonthedoorframeinsidethewalk‐in.
Ifanelectricalstub‐outconstructionwasrequested,alltheconnectionwireswillbestubbed‐outthrutheceiling.Inthiscase,the
fieldconnectionswillbemadeinajunctionboxprovidedbytheinstaller.

ELECTRICIAN MUST
SEAL THE CONDUIT AT
BOTH ENDS!
