Ameriwood HOME 1822096COM - STEP 9; Securing Main Structure with Cam Locks

ameriwoodhome.com
STEP
17
9
Tube
You

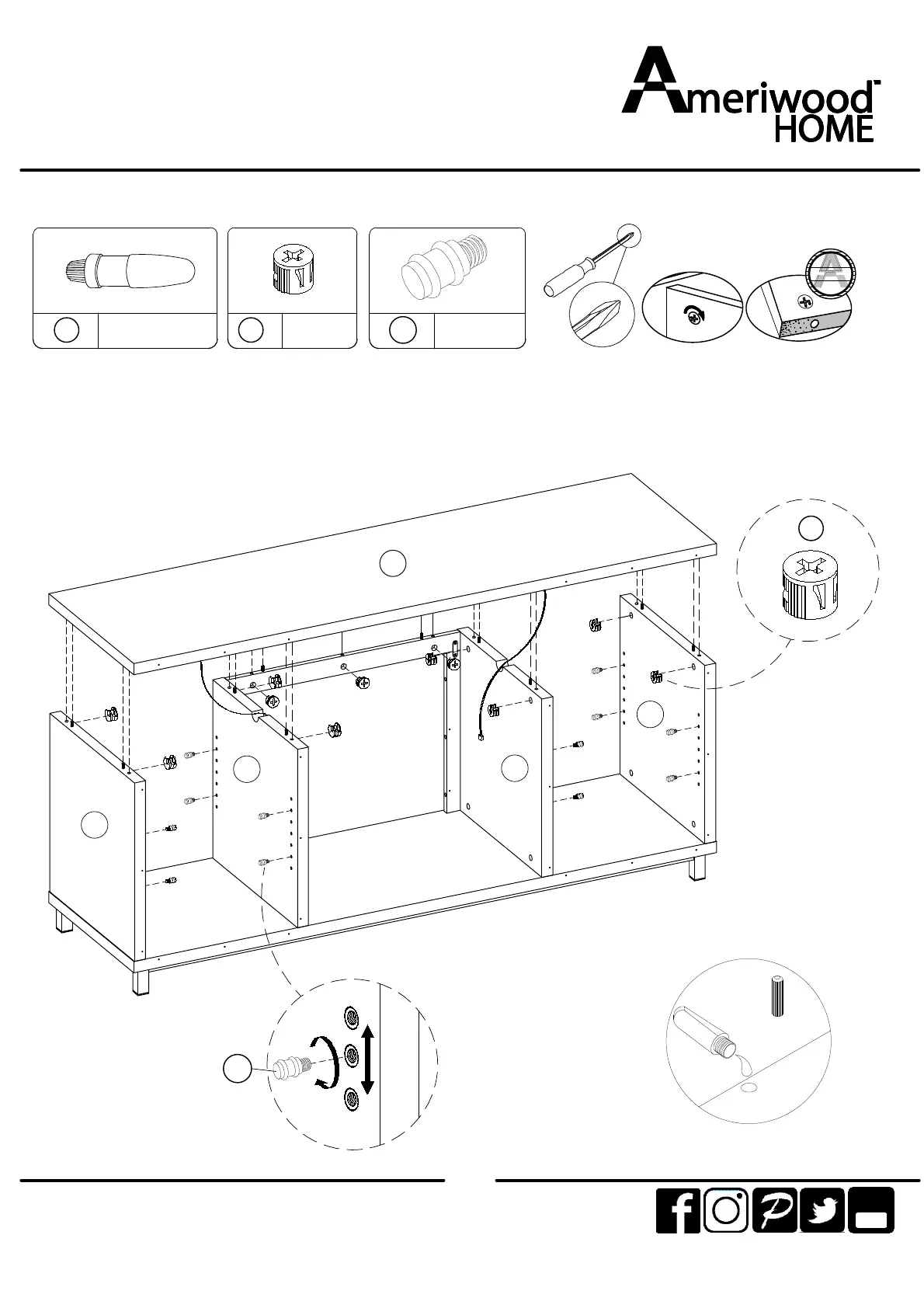

9.1 Attach (A) into (C) x 2, (D), (E) with (9) as illustrated.
9.2 Insert (13) into (C) x 2, (D), (E) as illustrated.
A
8 9
×11
13
×16
Wooden Dowel
Hole for wooden dowel
Use one drop of glue in dowel hole.
Glue
Proper orientation of CAM LOCK
Tip
Quick
Assembly
UNLOCK
LOCK
9
D
E
C
C
13
