Installation Manual - Rev D California Instruments
MX Series 10
3ø
AC Line
Input
PROTECTIVE
GROUND
EXTERNAL
CIRCUIT
BREAKER
AC MAINS
3 PHASE

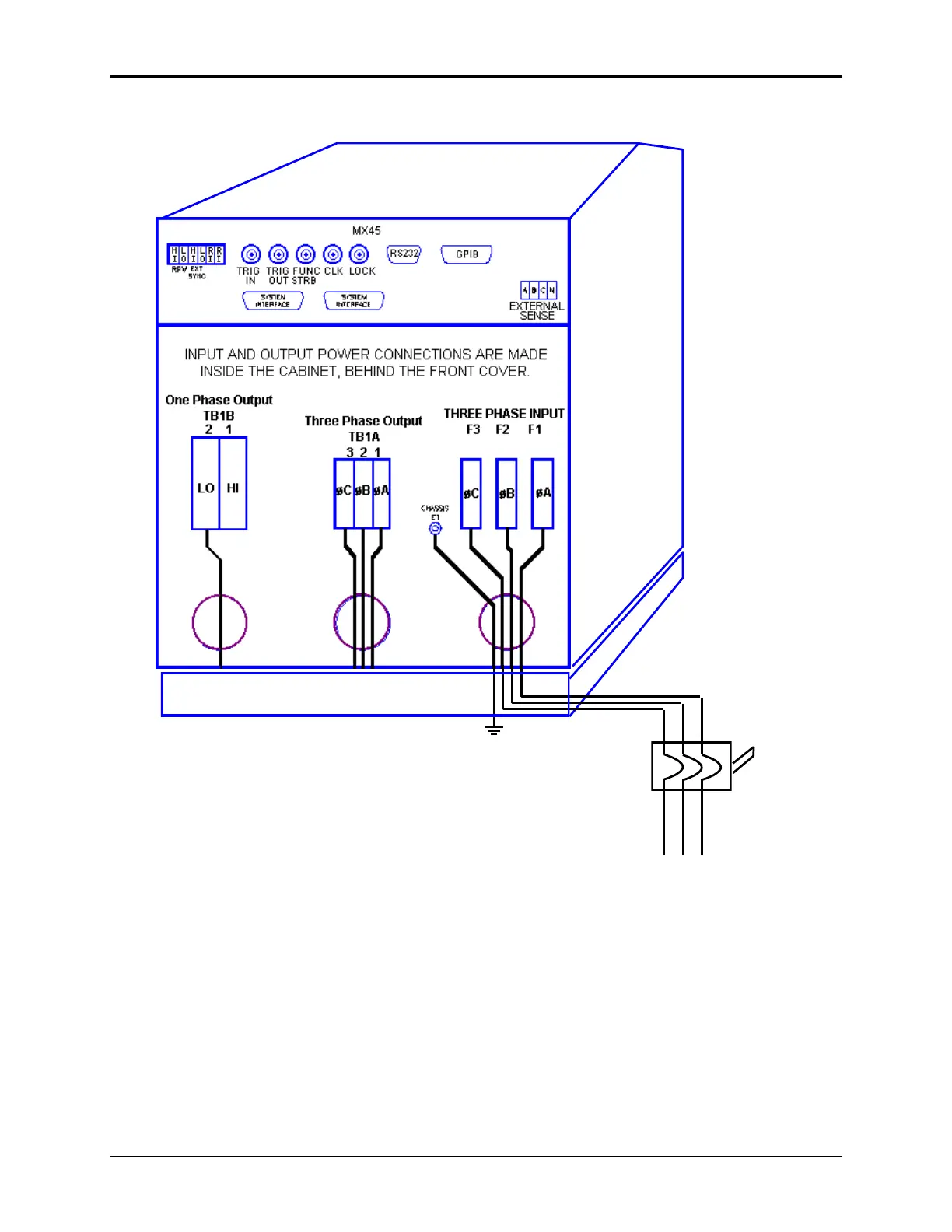

Figure 2-3: MX45 AC Input Connection Diagram
