Description of instrument
SPECTRO ARCOS FHX22
— 18.07.2019 —
9
1.3.5 Plasma torch box
The plasma torch in the torch box housing is in a horizontal position in systems
with axial plasma observation (EOP) and a vertical position in systems with radial
plasma observation (SOP).
The plasma torch can be mounted horizontally (EOP) or vertically (SOP) in
instruments with multi view (option) and dependent on the multi view setting.
The plasma interface (OPI) necessary for the axial version is equipped with an air
cooling system.

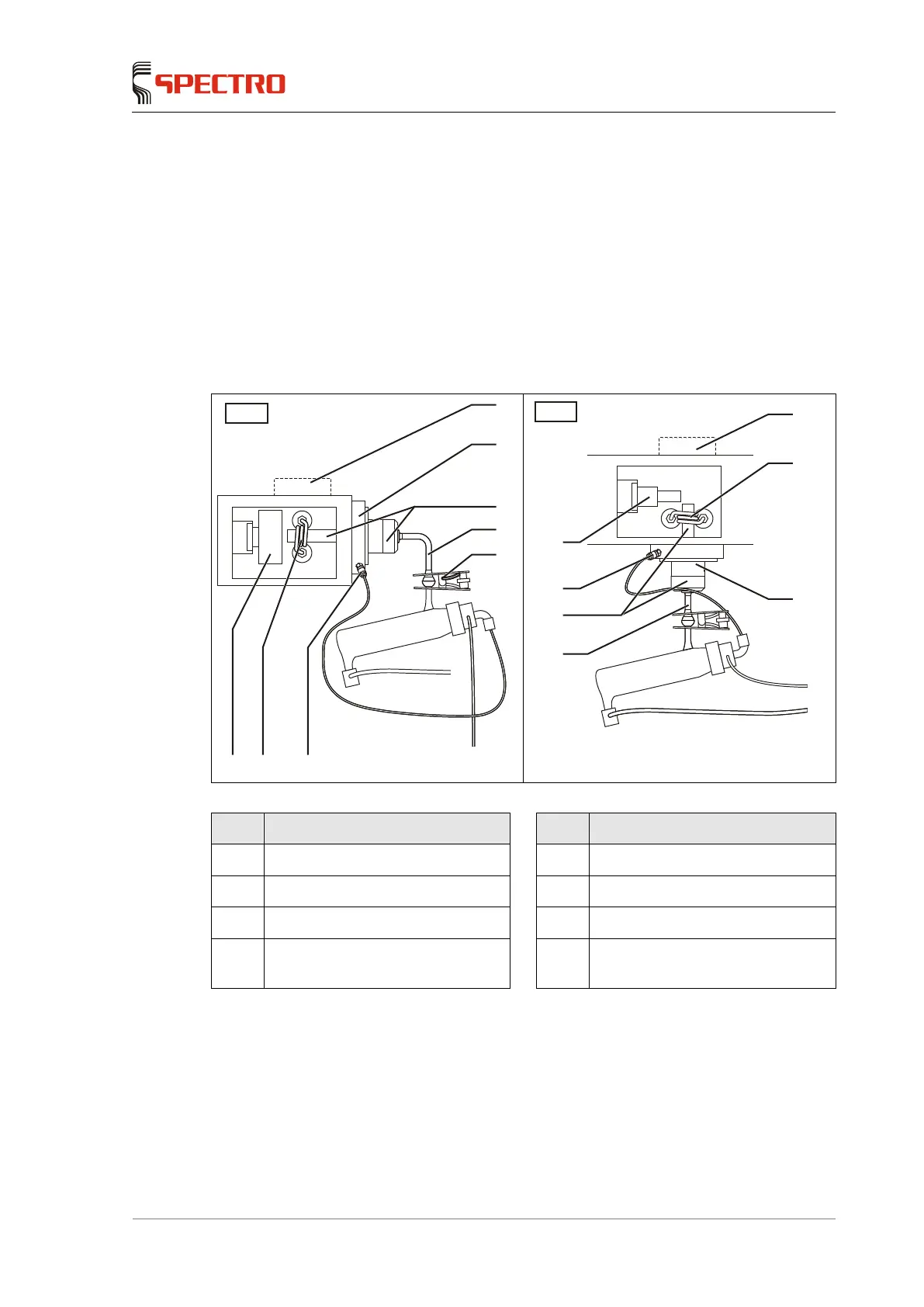

Fig. 5
No. Component No. Component
1 Extraction box housing and torch 5 Clamp
2 Plasma torch bracket 6 Nebulizer gas connection point
3 Plasma torch 7 Load coil
4
Connection to sample introduction
system
8 Plasma interface (OPI/SPI)
EOP
8 67
1
2
4
5
3
SOP
1
7
2
3
4
6
8
