AMI MI987 - JP1: COM1 RS232 RI;+5 V;+12 V Power Setting; JP8: Flash Descriptor Security Override (Factory Use Only)

INSTALLATIONS
MI987 User’s Manual 9

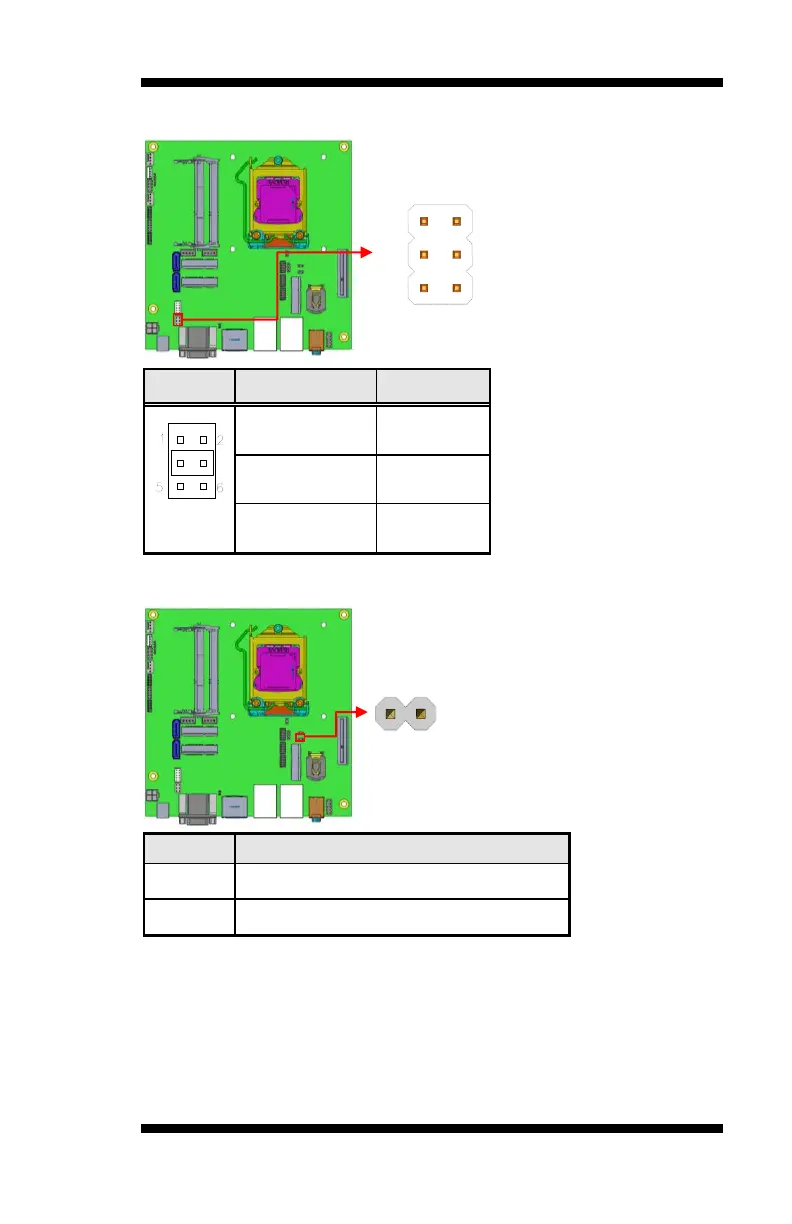

JP1: COM1 RS232 RI/+5V/+12V Power Setting
JP1
Setting
Function
Pin 1-3
Short/Closed
+12V
Pin 3-4
Short/Closed
RI
Pin 3-5
Short/Closed
+5V
JP8: Flash Descriptor Security Override (Factory use only)
JP8
Flash Descriptor Security Override
Open
Disabled (Default)
Close
Enabled
6
2
5
1
1 2
