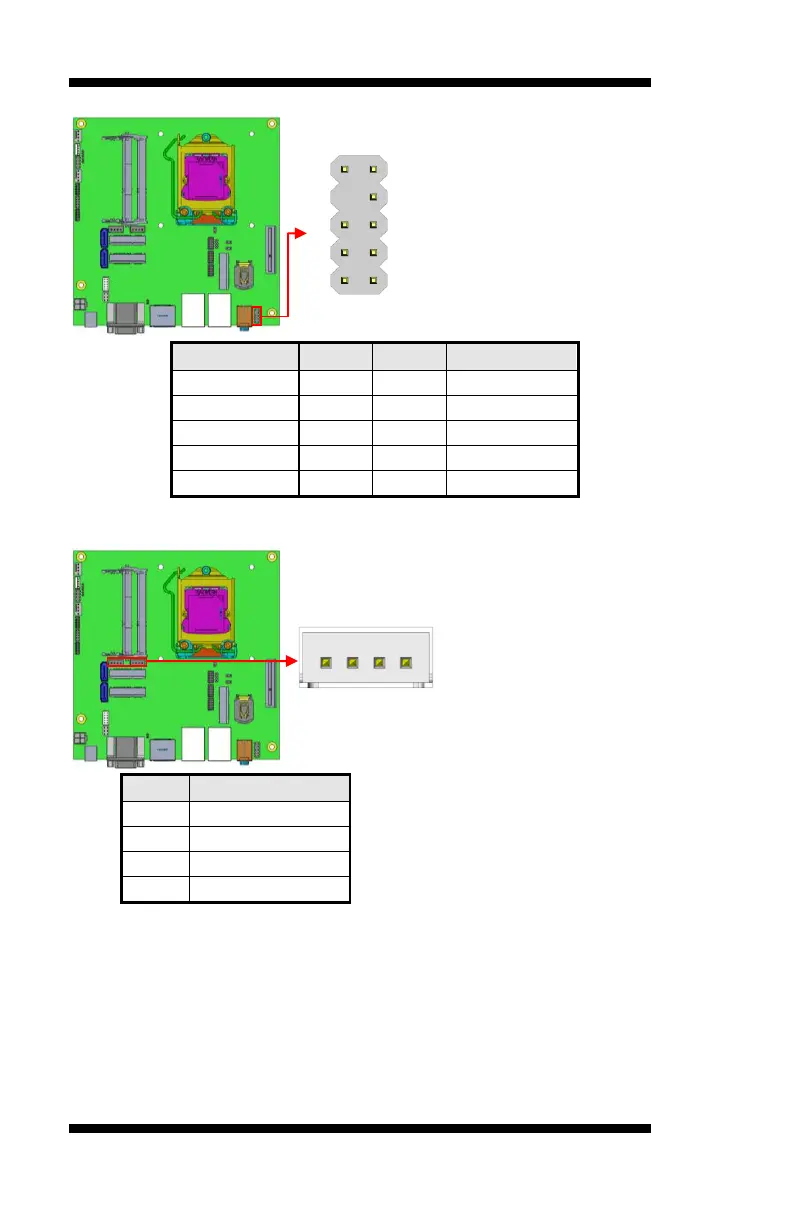

AMI MI987 - J10;J14: HDD Power Connector (Output Only); JP9: Audio Front Header

INSTALLATIONS
18 MI987 User’s Manual
JP9: Audio Front Header
Signal Name
Pin #
Pin #
Signal Name
MIC2_L
1
2
Ground
MIC2_R
3
4
Presence#
Line2_R
5
6
MIC2_ID
Sense
7
8
NC
Line2_L
9
10
Line2_ID
J10/J14: HDD Power Connector (Output Only)
Pin #
Signal Name
1
+5V
2
Ground
3
Ground
4
+12V
10
2
9
1
4 1
