AMI MI987 - PCIE1: Pcie_X4 Slot

INSTALLATIONS
20 MI987 User’s Manual
Signal Name
Pin #
Pin #
Signal Name
DCD, Data carrier detect
1
2
RXD, Receive data
TXD, Transmit data
3
4
DTR, Data terminal ready
GND, ground
5
6
DSR, Data set ready
RTS, Request to send
7
8
CTS, Clear to send
RI, Ring indicator
9
10
Not Used

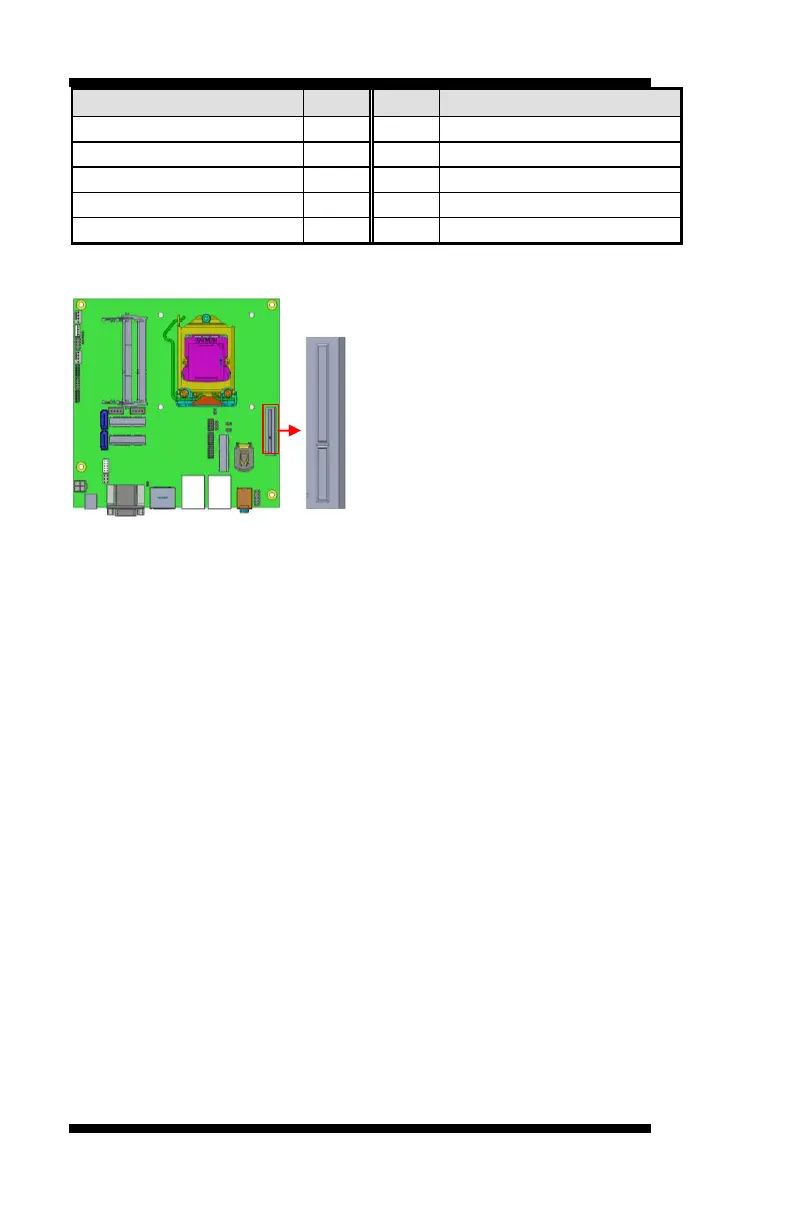

PCIE1: PCIE_x4 Slot
