AMI MI987 - CN2, CN3: SATA3 Connectors; CN4: CRT;COM1 Connector; CN5: DP;HDMI Connector; CN6: Gigabit LAN (Intel I217 LM); USB3.0

INSTALLATIONS
14 MI987 User’s Manual

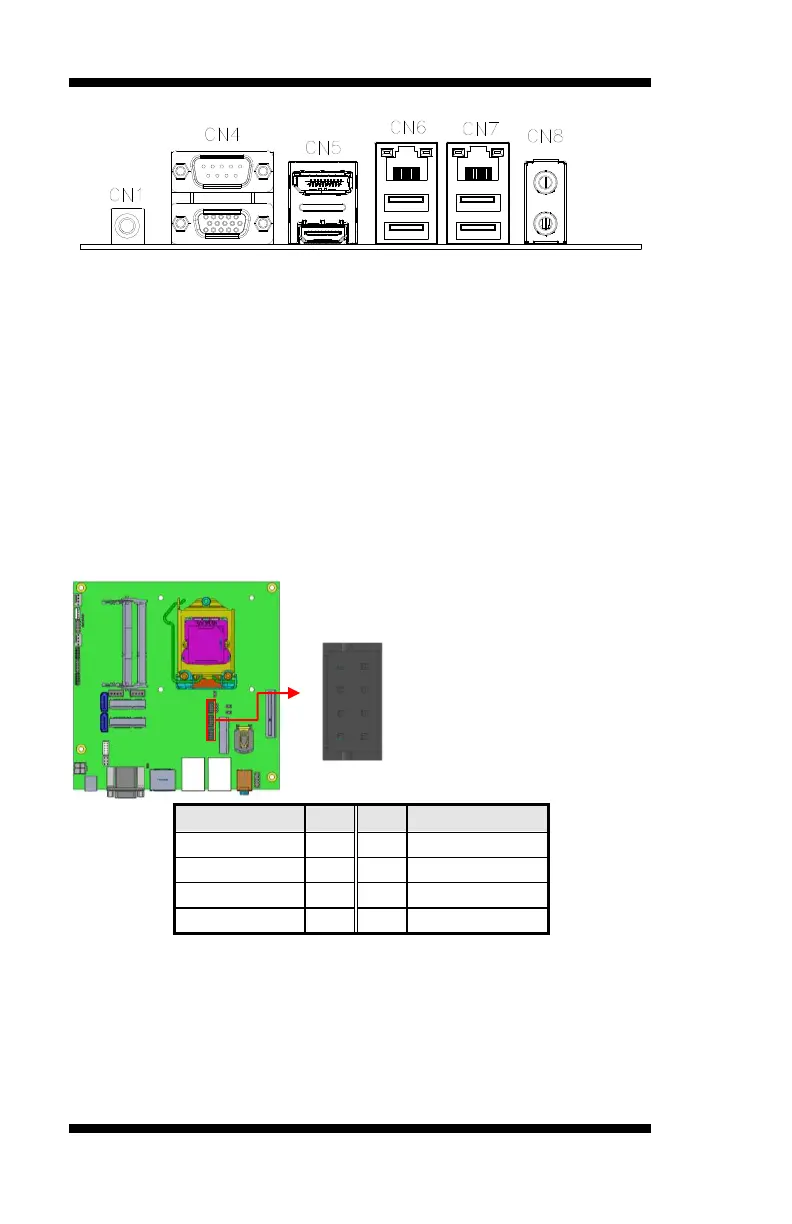

CN4: CRT/COM1 Connector
CN5: DP/HDMI Connector
CN6: Gigabit LAN (Intel I217LM) / USB3.0
CN7: Gigabit LAN (Intel I211AT) / USB3.0(EF Ver with USB2.0)
CN2, CN3: SATA3 Connectors
F_USB1/2/3: USB Connectors
Signal Name
Pin
Pin
Signal Name
VCC
1
2
GND
D0-
3
4
D1+
D0+
5
6
D1-
GND
7
8
VCC
2
8
1
7
