THE 2 IN 1 SWITCH
THE MASTER
MODULE SWITCH

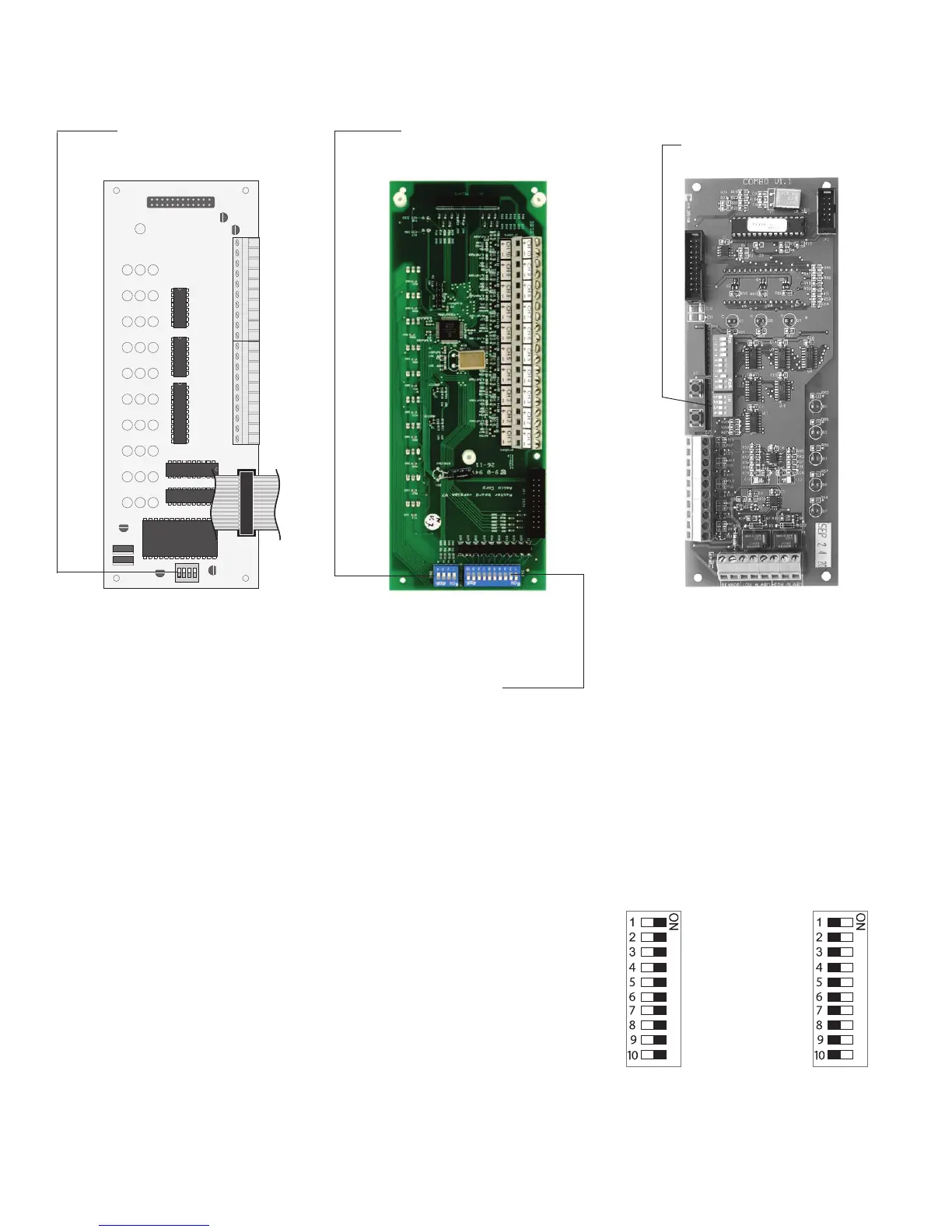

MASTERBOARD 10-CHANNEL ACTIVATION DIP-SWITCHES
The 10 Channel dip-switch is responsible for activating and
deactivating each individual corresponding channel on the
Masterboard.
ALL CHANNELS
ACTIVATED
ALL CHANNELS
DEACTIVATED
2U
5U6U
U4
S1
U4
U3
NO
1 2 3 4
1HC2HC3HC4HC5HC6HC7HC8HC9HC01HC
++++++++++
----------
THE MASTER
MODULE SWITCH
Version 3 Version 4
NOTE:
Version 3: Jumper any unused points on
the Master module
Version 4: Jumper any unused points on the Master module.
Turn OFF dip-switches for any unused points (Location SW-2)
