Amico Alert-2 - Appendix N: Wiring Diagram - Computer Interface Module

www.amico.com 51
Ground - Green
Common - Purple
Normally Closed -Red
Normally Open -Blue
Appendix N

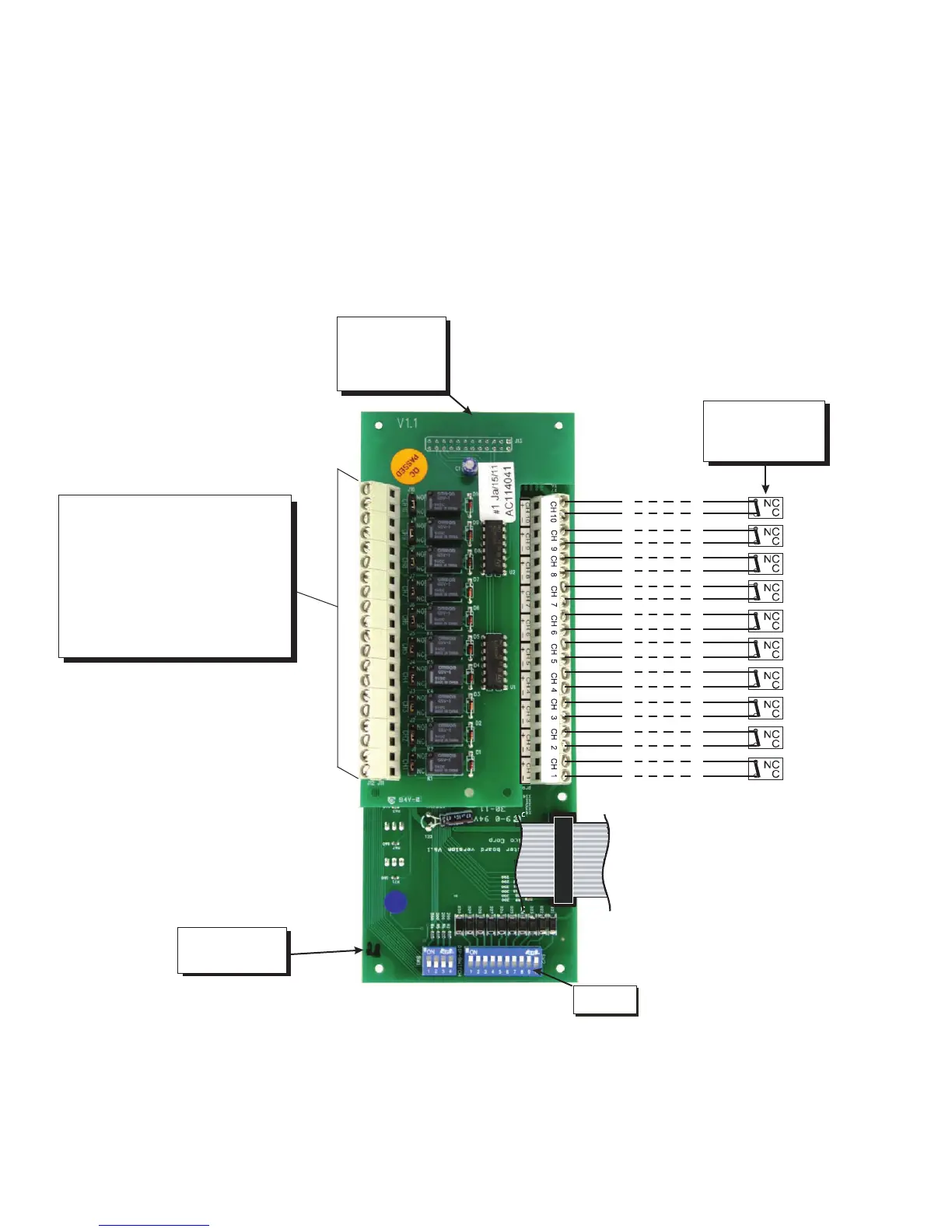

Wiring Diagram Computer Interface Module
Master
Module
Computer
Interface
Module
Dry contacts for interface with:
Building Management System.
Contacts are Common
and NC, open on Alarm.
Ratings:
24VDC 0.1A
Source
Equipment
SW-2
Note: Turn OFF dip-switches for any unused points
(Location SW-2)
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
NOTE:
Version 3: Jumper any unused points on
the Master module
Version 4: Jumper any unused points on the Master module.
Turn OFF dip-switches for any unused points (Location SW-2)
