Appendix I

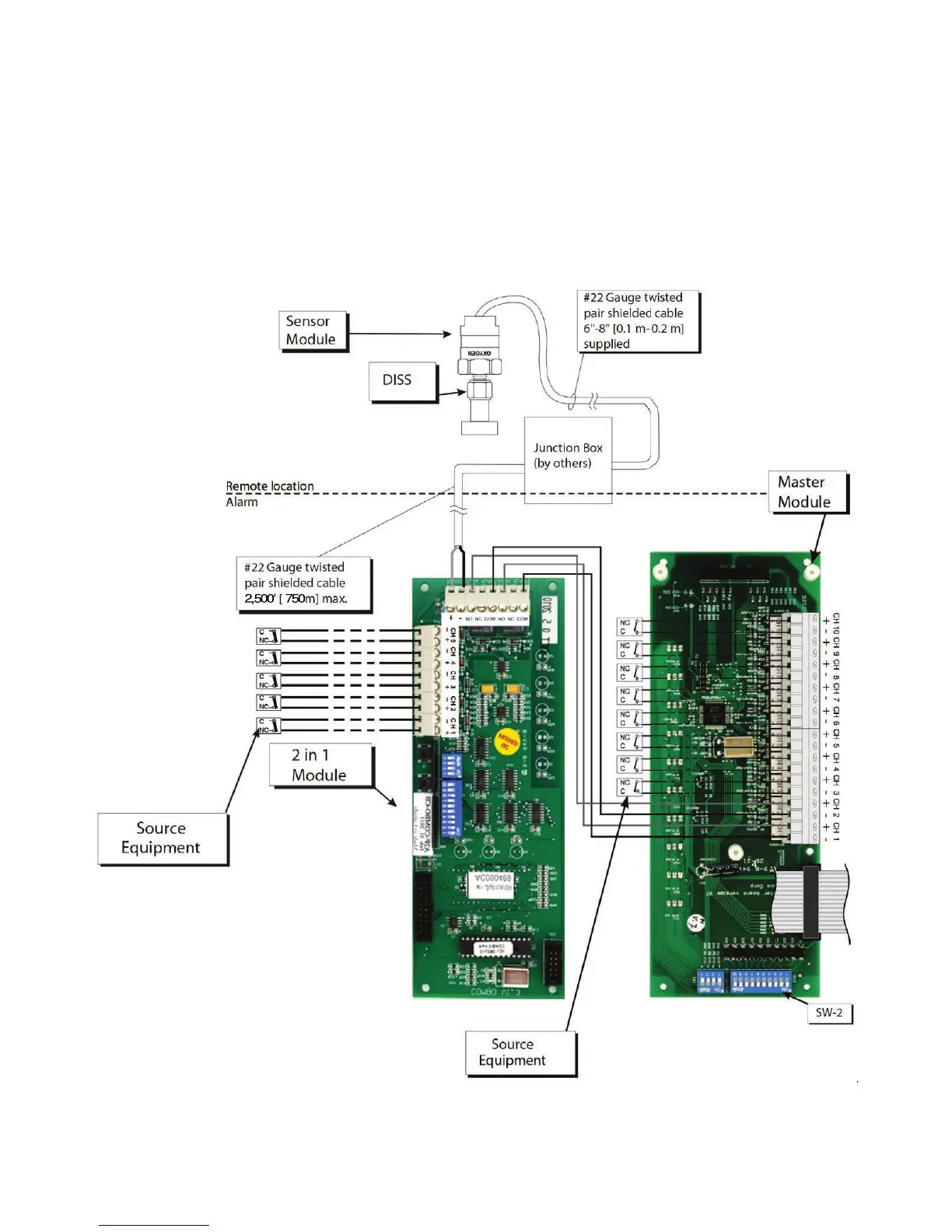

Wiring Diagram 2 in 1 Module to Master Module
2,500 750
NOTE:
Version 3: Jumper any unused points on
the Master module
Version 4: Jumper any unused points on the Master module.
Turn OFF dip-switches for any unused points (Location SW-2)
