Amico Alert-2 - Appendix H: Wiring Diagram - Area Module to Master Module

www.amico.com 45
Appendix H

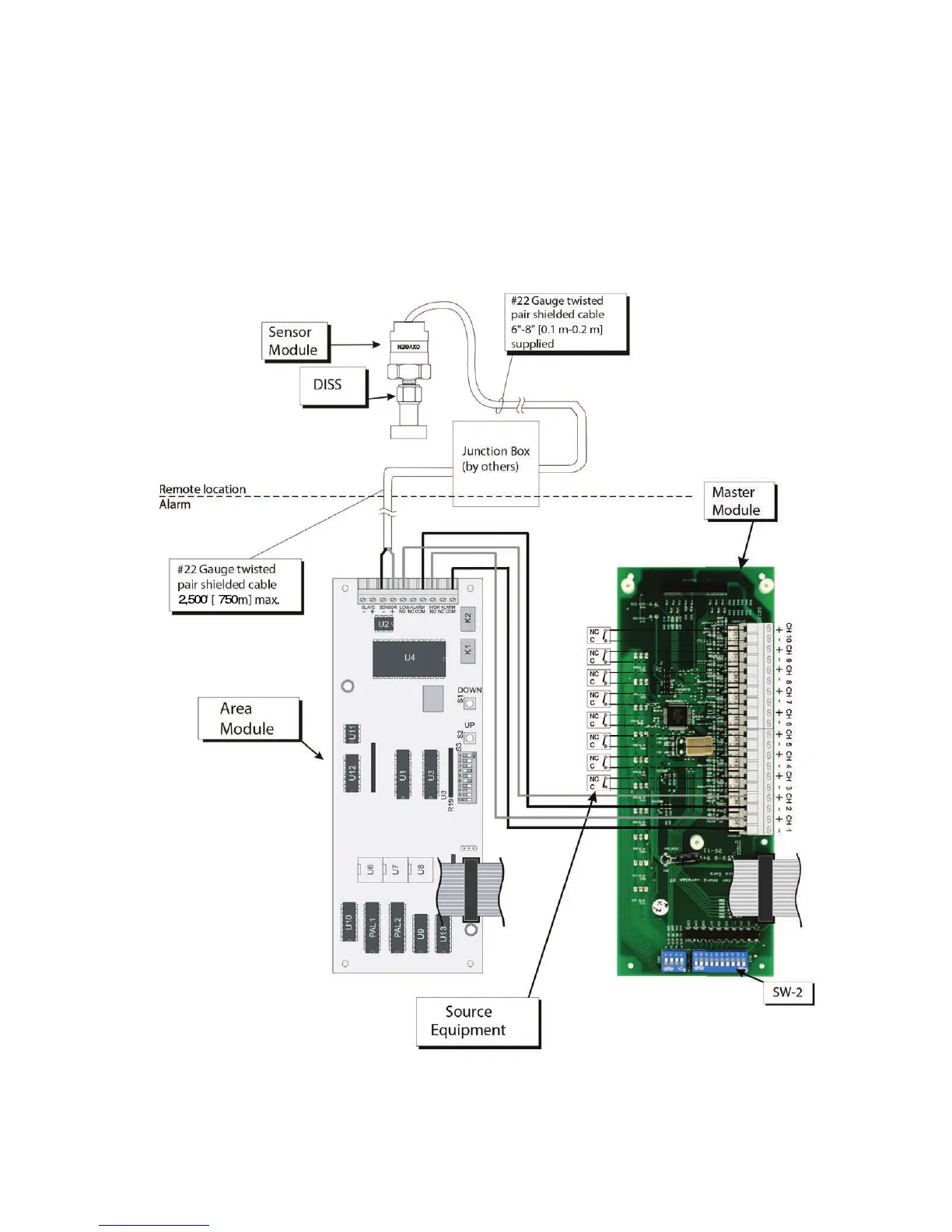

Wiring Diagram Area Module to Master Module
2,500 750
NOTE:
Version 3: Jumper any unused points on
the Master module
Version 4: Jumper any unused points on the Master module.
Turn OFF dip-switches for any unused points (Location SW-2)
