Amico Alert-2 - Appendix F: Wiring Diagram - 2 in 1 Display Module

www.amico.com 43

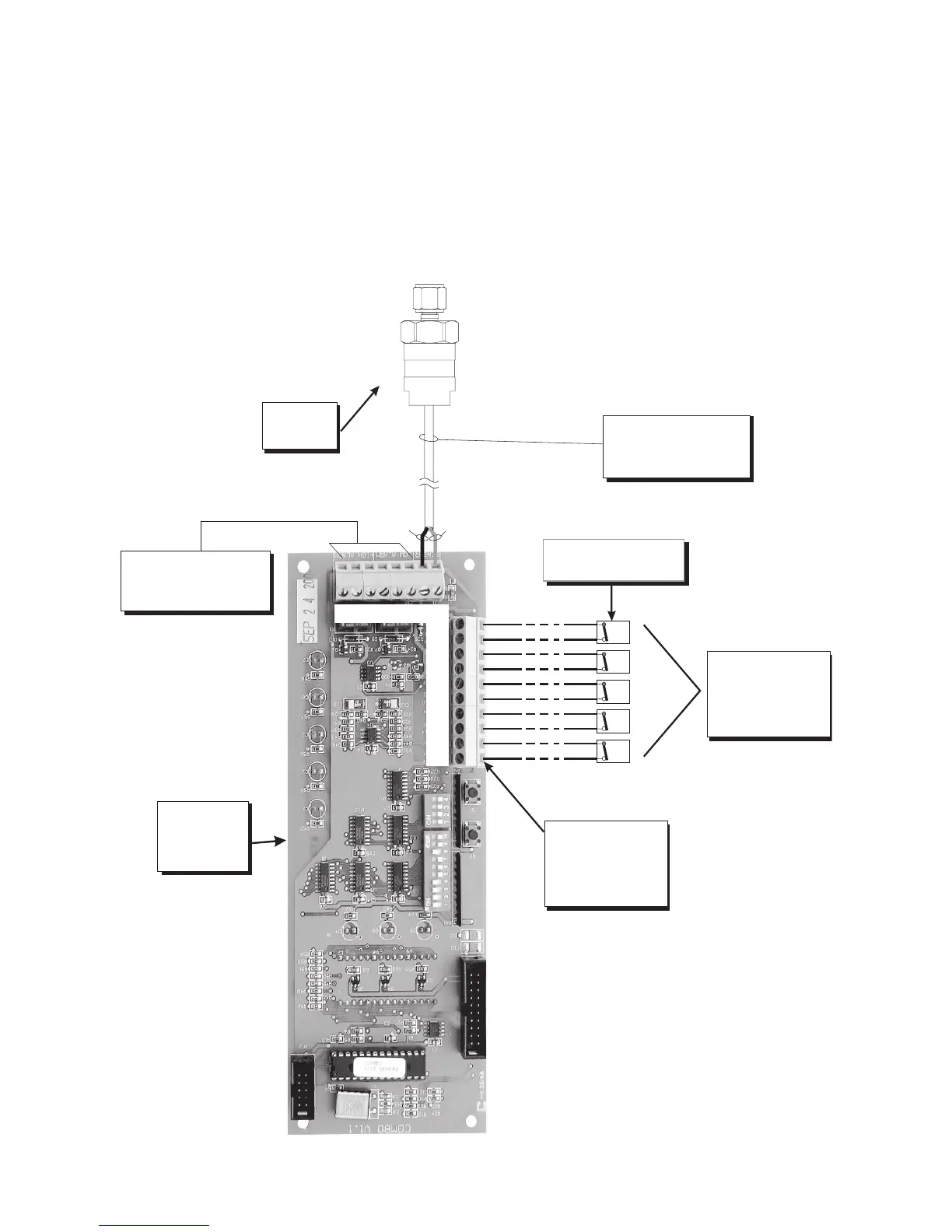

Black Red
# 22 Gauge twisted
pair shielded cable
6”-8” [0.1m-0.2m] supplied
2 in 1
Module
Sensor
Module
C
NC
C
NC
C
NC
C
NC
C
NC
1
HC2HC3HC4HC5HC
+++++
-----
NO NC COM NO NC COM
- +
Note:
Jumper any
unused points
Source Equipment
Dry contacts for
remote monitoring of
High and Low alarms
Dry contacts
only, no
voltage
OXYGEN
Appendix F
Wiring Diagram 2 in 1 Display Module
