Amiga 1000 - Rear Connectors; Opening the Case

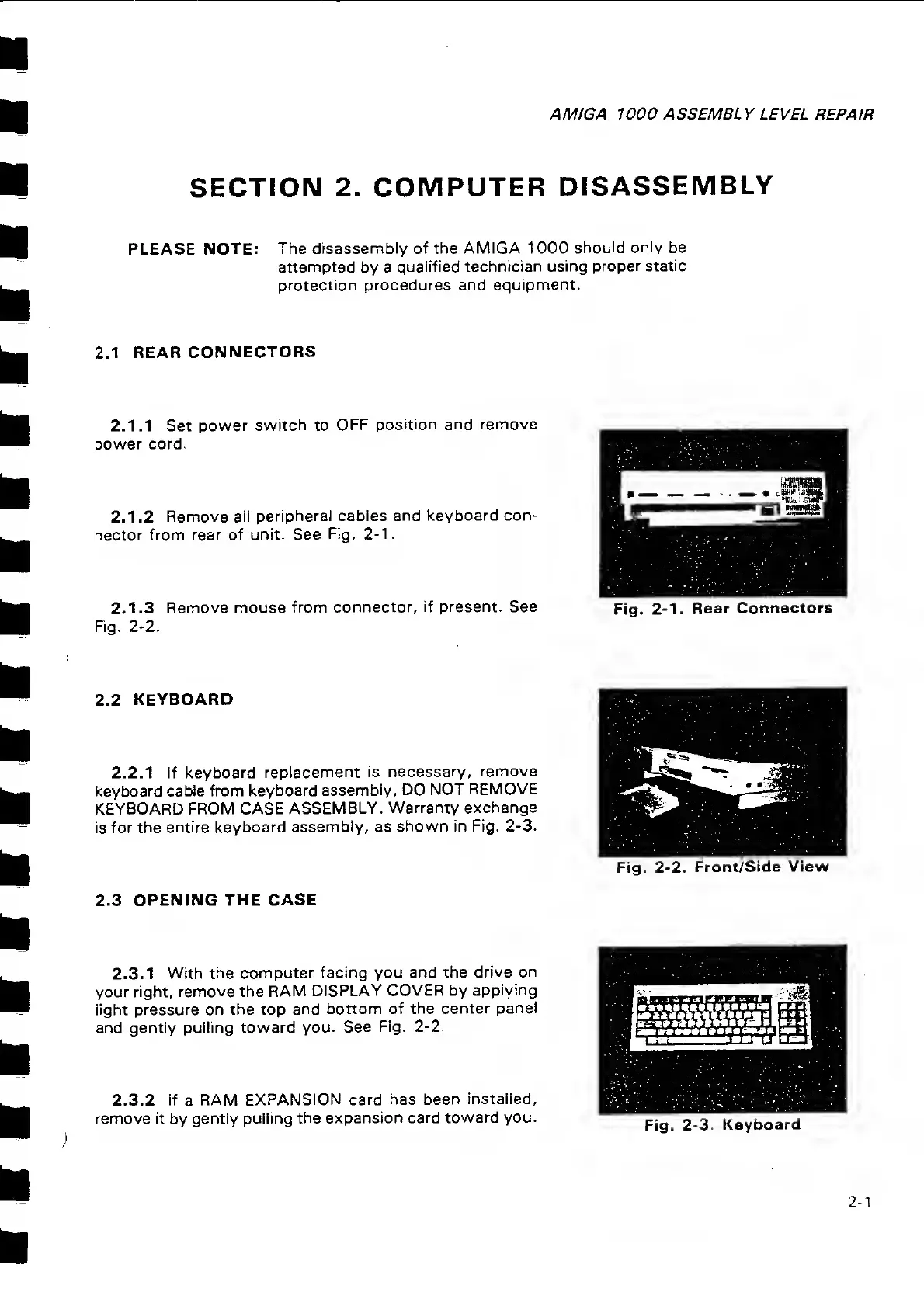

AMIGA WOO ASSEMBL Y LEVEL
REPAIR
SECTION 2. COMPUTER
DISASSEMBLY
PLEASE
NOTE: The
disassembly of the AMIGA 1000
should only
be
attempted
by a
qualified
technician using
proper static
protection
procedures and equipment.
2.1 REAR
CONNECTORS
2.1.1
Set power
switch
to
OFF
position and remove
power
cord.
2.1.2 Remove
all peripheral
cables and
keyboard
con-
nector from
rear of unit. See
Fig,
2-1.
2.1.3
Remove mouse
from connector,
if
present. See
Fig.
2-2.
Fig.
2-1
.
Rear Connectors
2.2
KEYBOARD
2.2.1 tf
keyboard replacement
is necessary, remove
keyboard cable
from keyboard
assembly, DO
NOT
REMOVE
KEYBOARD
FROM CASE
ASSEMBLY.
Warranty exchange
is for
the entire
keyboard assembly, as
shown in Fig.
2-3.
2.3
OPENING
THE CASE
Fig.
2-2.
FrontySide View
2.3.1
With
the computer
facing you and the
drive
on
your right,
remove the
RAM DISPLAY
COVER by
applving
light pressure on the top
and
bottom of the center
panel
and gently pulling toward you.
See
Fig.
2-2.
2.3.2 If
a
RAM
EXPANSION
card has been
installed,
remove it
by
gently
pulling the expansion
card toward you.
Fig.
2-3. Keyboard
2-1
