Amiga 1000 - Power Supply Installation; Pcb Installation

AMIGA
1000 ASSEMBLY
LEVEL REPAIR

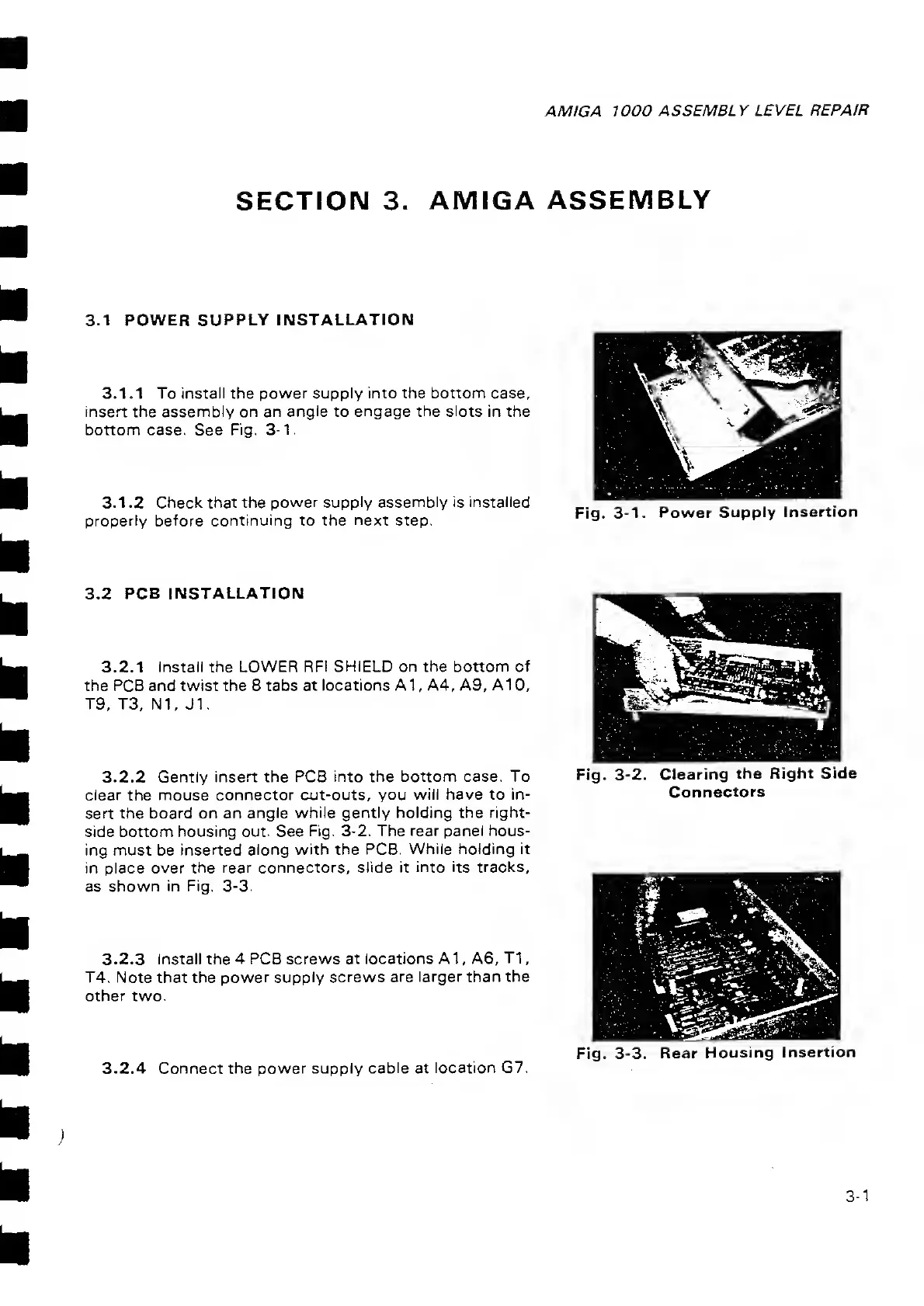

SECTION 3.
AMIGA
ASSEMBLY
3.1 POWER SUPPLY
INSTALLATION
3.1 .1 To
install
the
power supply into the bottom case,
insert the assembly on an
angle
to
engage the slots
in the
bottom
case. See
Fig.
3-1.
3.1
.2
Check that the
power supply assembly is installed
properly before continuing to the
next
step.
Fig.
3-1.
Power Supply
Insertion
3.2
PCB INSTALLATION
3.2.1 Install the
LOWER RFl
SHIELD on the
bottom
cf
the PCB and twist the 8 tabs
at locations A1
, A4, A9,
A1
0,
T9, T3, N1,
J1.
3.2.2
Gently insert the PCB
into the bottom
case. To
clear
the
mouse connector cut-outs,
you wilt have to
in-
sert the
board
on an
angle while gently
holding
the
right-
side bottom housing
out. See
Fig.
3-2.
The rear panel hous-
ing must be
inserted along with the
PCB. While holding it
in place
over the rear connectors,
slide it into its tracks,
as
shown in Fig.
3-3.
3.2.3
Install the
4
PCB
screws at locations
A1
,
A6,
T1
,
T4.
Note
that the power supply
screws are larger than the
other
two.
3.2.4 Connect the power
supply cable
at
location G7.
Fig.
3-2.
Clearing
the
Right Side
Connectors
Fig.
3-3. Rear Housing
Insertion
3-1
