AMIGA 1000
ASSEMBLY LEVEL
REPAIR

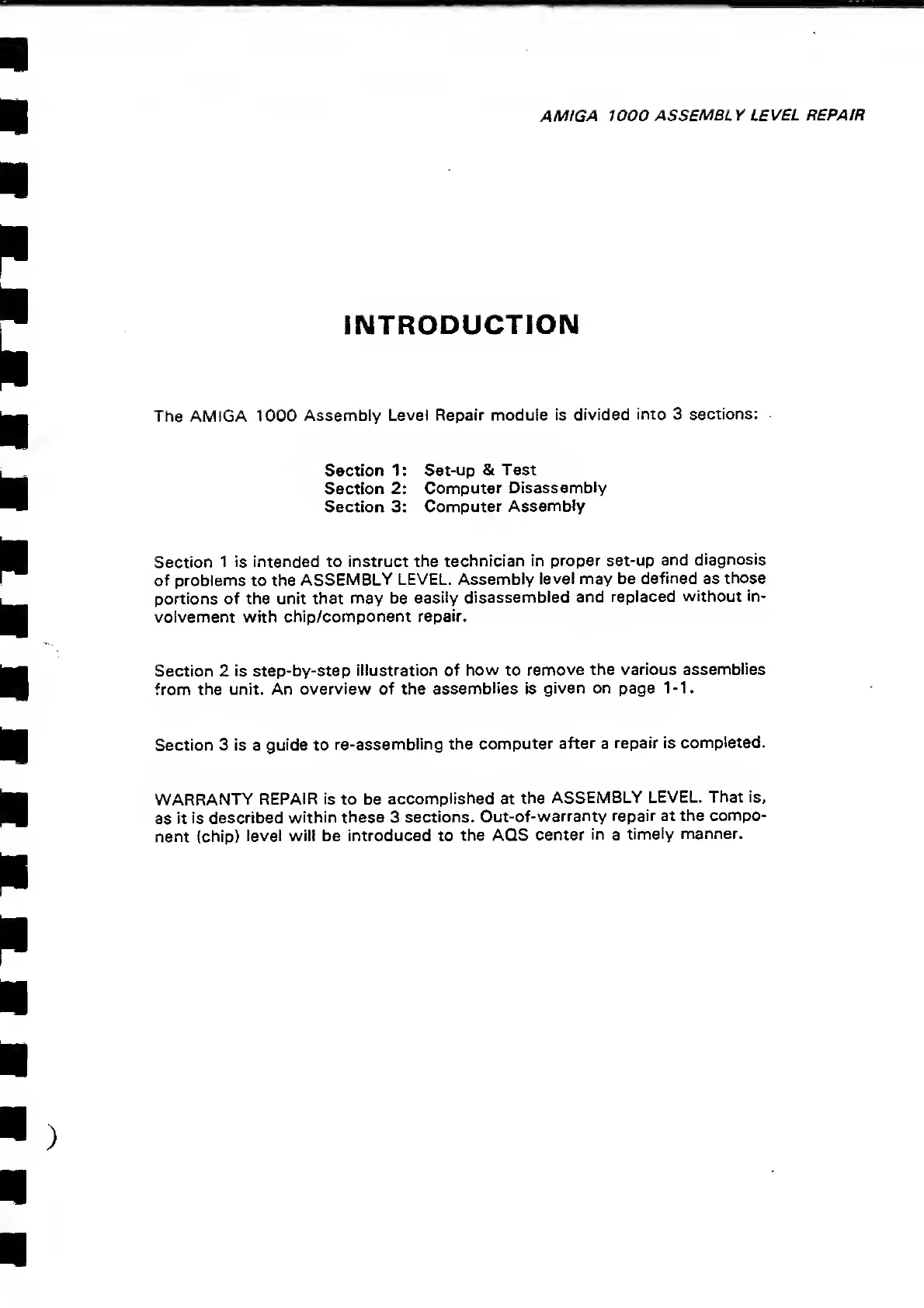

INTRODUCTION
The AMIGA 1000 Assembly
Level Repair
module is divided
into
3
sections:
Section 1:
Set-up &
Test
Section 2:
Computer
Disassembly
Section 3: Computer
Assembly
Section
1 is intended
to instruct the
technician in
proper set-up and
diagnosis
of problems to the
ASSEMBLY
LEVEL. Assembly
level may be
defined as those
portions
of the unit that may be
easily
disassembled and
replaced
without in-
volvement with
chip/component repair.
Section 2 is step-by-step
illustration
of how to remove the various
assemblies
from
the unit.
An overview of the
assemblies
is
given on page
1-1.
Section 3 is a guide to
re-assembling the
computer
after
a
repair is
completed.
WARRANTY
REPAIR is
to be
accomplished at the
ASSEMBLY LEVEL.
That is,
as
it is described
within these
3 sections.
Out-of-warranty
repair at
the compo-
nent (chip)
level will be
introduced to the AQS
center in a
timely manner.
)
