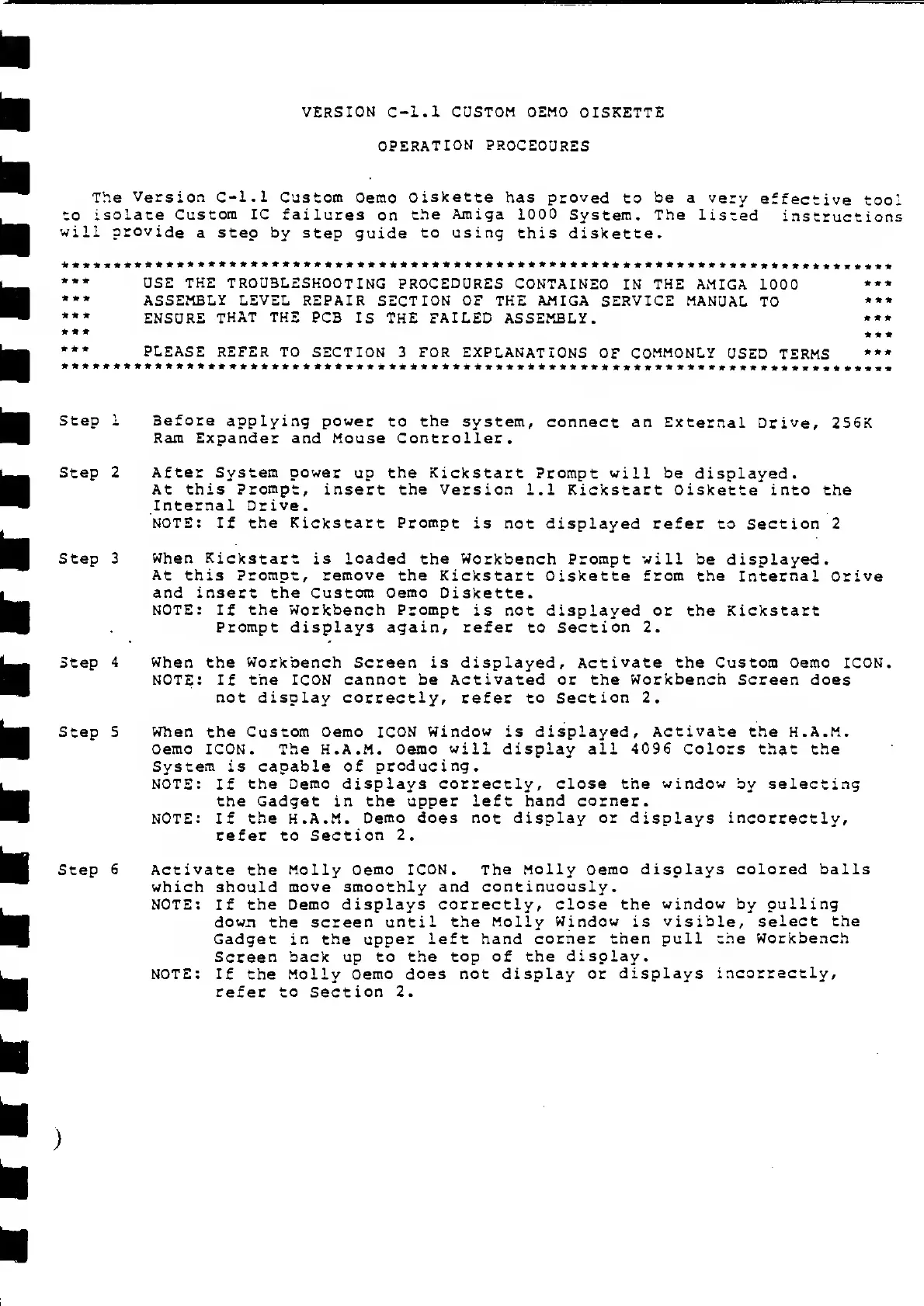

VERSION
C-l.l
CUSTOM DEMO
DISKETTE
OPERATION PROCEDURES
The
Version C-l.l
Custom Demo
Diskette
has proved
to
be a very
effective
tool
to
isolate
Custom IC
failures on
the
Amiga
1000
System. The listed
instructions
will provide
a step by step
guide
to using
this diskette.
***
USE
THE TROUBLESHOOTING PROCEDURES
CONTAINED
IN
THE
AMIGA
1000
***
***
ASSEMBLY
LEVEL
REPAIR SECTION OF
THE AMIGA SERVICE MANUAL
TO
***
***
ENSURE
THAT
THE PCB IS
THE
FAILED
ASSEMBLY.
***
***
***
***
PLEASE
REFER
TO SECTION
3
FOR EXPLANATIONS
OF
COMMONLY
USED
TERMS
***
Step
1
Before
applying power
to
the
system,
connect an
External
Drive,
256K
Ram Expander and
Mouse
Controller.
Step 2 After System power
up
the Kickstart
Prompt will be
displayed.
At this
Prompt,
insert the Version
1.1 Kickstart Diskette into
the
Internal Drive.
NOTE: If the Kickstart Prompt
is not displayed
refer to Section 2
Step 3
When
Kickstart is loaded the Workbench
Prompt
will
be displayed.
At
this
Prompt, remove
the Kickstart
Diskette from the Internal Drive
and insert the Custom Demo
Diskette.
NOTE: If the Workbench Prompt
is not displayed or the Kickstart
Prompt
displays again, refer to Section 2.
Step
4 When
the
Workbench Screen
is
displayed.
Activate the Custom Demo ICON
NOTE: If the ICON cannot be
Activated
or the
Workbench
Screen
does
not
display
correctly, refer to Section 2.
Step 5
When
the Custom Demo ICON
Window
is
displayed, Activate
the H.A.M.
Demo
ICON. The H.A.M. Demo
will
display
all
4096
Colors
that the
System
is capable of
producing.
NOTE:
If
the Demo displays
correctly,
close the
window
by selecting
the
Gadget
in the upper left
hand corner.
NOTE: If the H.A.M.
Demo does not display or displays incorrectly,
refer
to Section 2.
Step
6 Activate
the
Molly Demo ICON. The
Molly
Demo
displays
colored balls
which
should
move
smoothly
and continuously.
NOTE:
If
the Demo displays correctly,
close
the
window by pulling
down
the
screen until the Molly
Window
is
visible, select the
Gadget in the upper left
hand corner then pull
the Workbench
Screen back up to the
top of the
display.
NOTE: If the
Molly
Demo does not display
or displays
incorrectly,
refer to Section 2.
