Fault with the fire alarm routing equipment or fault warning routing
equipment
Fault with alarm devices or circuit
Fault with connected modules, cards and boards
Fault with secondary power supply
Fault with main power supply
Lit in conjunction with System Fault indicator

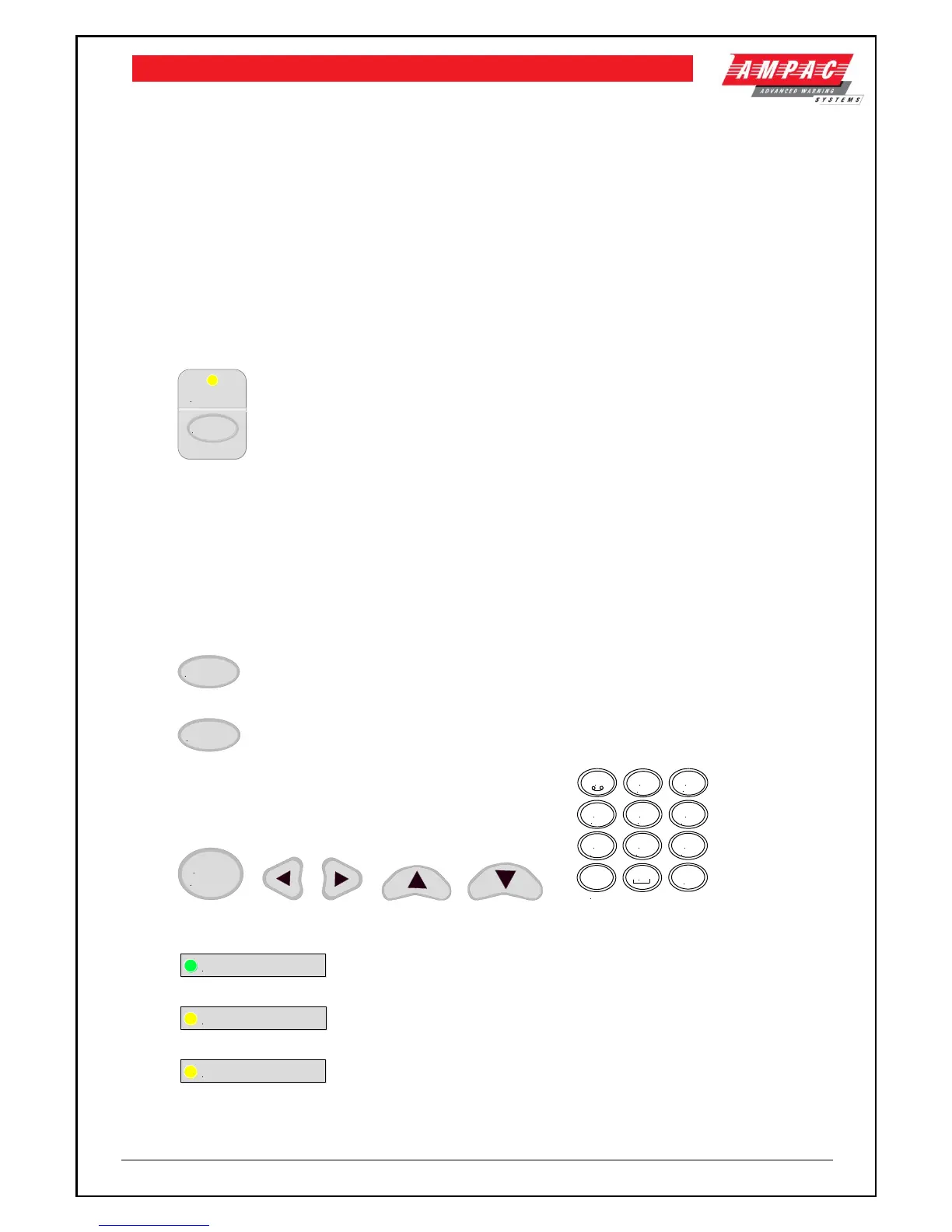

Reset – Momentary push button. Pressing RESET returns the FACP to its normal default state, by
clearing all fire alarm conditions, updating the relevant indicators and outputs. If fault conditions are
cleared they shall be re-established within 20 seconds
Disabled – Evacuate
Available at access level 2 and above
Disabled – The indicator is illuminated when one or more zone detectors, loop devices or
panel outputs are disabled.
Evacuate - Momentary push button. Turns on all alarm devices, illuminates the FIRE indicator,
activates the output to the fire alarm routing equipment and announces the evacuate condition on
the LCD.
Also if there any alarm devices configured with delays, the evacuate key will override these and
force the alarm devices into evacuate.
Note: If there are any zones configured for Investigation or Dependency A, B or C, these shall
be bypassed when the EVACUATE key is pressed.
Lamp Test – Pressed for 2 to 3 seconds turns ON all indicators (including any ancillary
cards), segments of the LCD and the local buzzer in a logical sequence.
Cancel – Used to cancel a navigation step or entry in the MENU function
MNO
6
1
2
ABC
3
DEF
4
GHI
JKL
5
PQRS
7
TUV
8
WXYZ
9
*
0
#
MENU / ENTER, 0-9, *, #, CANCEL and ◄▼▲► - Provides a means for entering the menu system,
and carrying out interrogation, control and programming activities
Illuminated to show the presence of mains power and flashes when the
mains have failed
Illuminated when the FACP is unable to provide mandatory functions.
Indicator is latched, until cleared by the RESET control
Illuminated when there is an earth fault detected on the panel
