10.6.11 SmartTerminal Controls and Indicators
All controls, except for the controls Enable / Disable Keyswitch, are of a momentary push button
style and operate in exactly the same way as does the FACP itself.

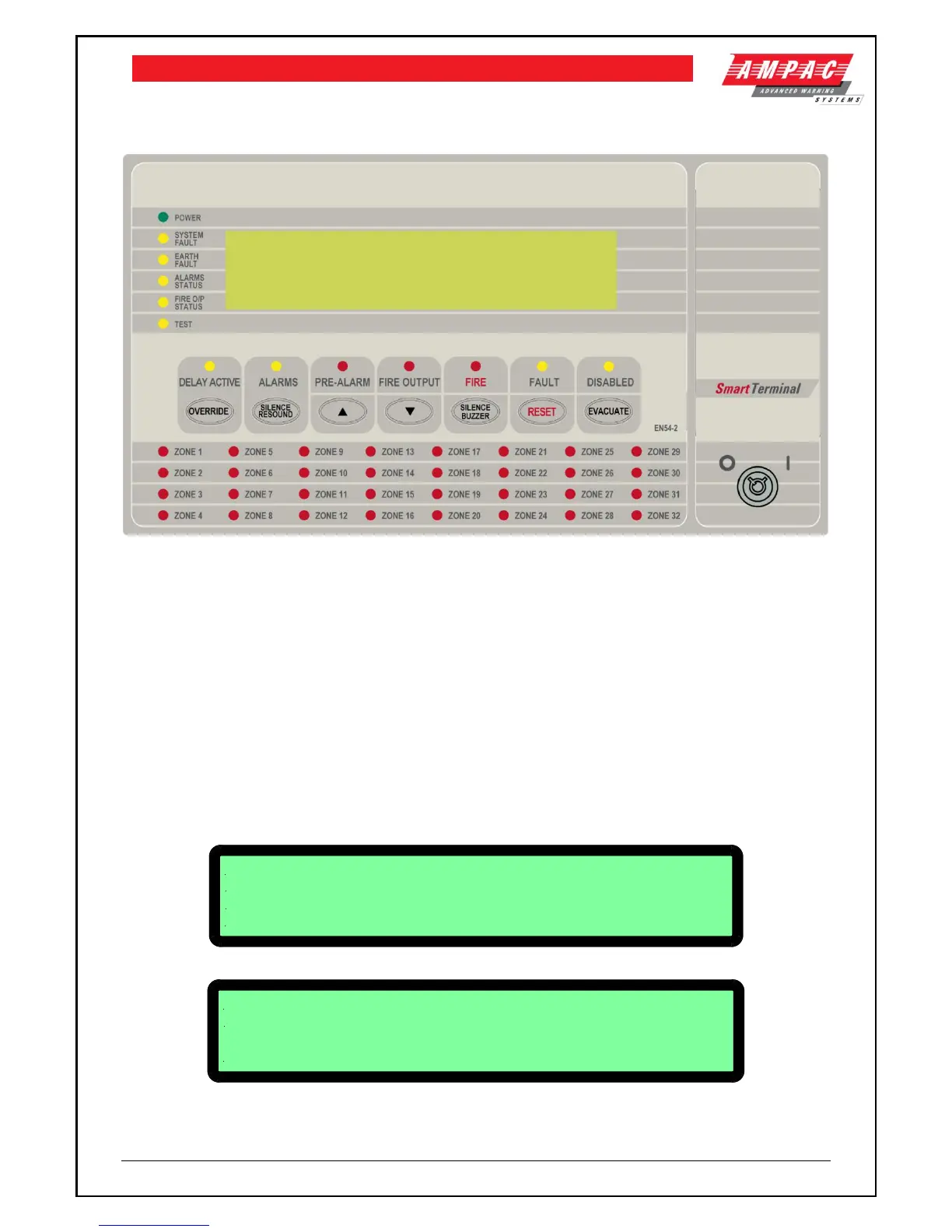

Figure 24: SmartTerminal Front Panel Layout
10.6.12 SmartTerminal Screen Format
There are 3 events that can be reported and displayed by SmartTerminal. The types of event are;
1. Fire
2. Faults
3. Disables.
The types of events are only associated with loop devices and detectors hence faults associated
with modules, loops O/C – S/C, power supplies and so forth are not reported on the LCD.
The SmartTerminal has front panel indicators for each type of event. When the SmartTerminal is
configured not to report a type of event and that event type is present (and the corresponding front
panel indicator is illuminated on the SmartTerminal), then a standard information screen is
displayed on the LCD stating the system is not normal and the operator should see the FACP.
FIRE: If configured the screen format for reporting loop / sensor / zone fire condition is:
Device descriptor (up to 33 characters) Type Descriptor (up to 6 characters)
Loop address and zone number(Lxx Syyy.zz Zwww) current device status
Date and Time of occurrence (DD/MM/YYYY HH:MM:SS)
Alarm sequence number ( Device Alarms nnn of nnn)
Fault: If configured the screen format for reporting loop / sensor / zone fault condition is:
Device descriptor (up to 33 characters) Type Descriptor (up to 6 characters)
Loop address and zone number(Lxx Syyy.zz Zwww) current device status
Fault sequence number ( Device Fault nnn of nnn)
Note: The fault types only relate to devices.
