LOOPSENSE EN54 INSTALLATION & COMMISSIONING
Editing

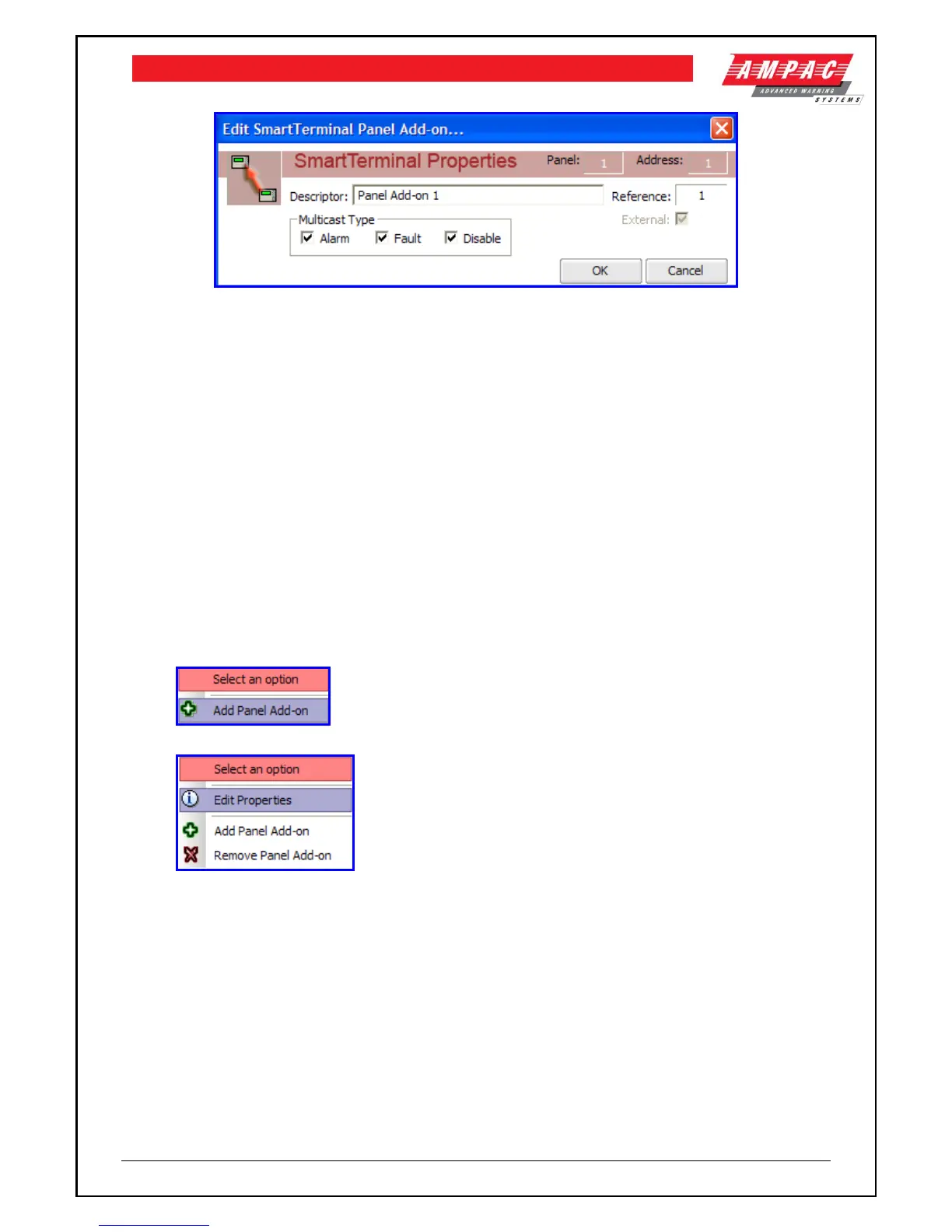

Figure 23: Editing Screen
The SmartTerminal Add-On editing dialog box consists of two types of fields:
1. Non-editable (informational) fields:
 Panel – The panel number this module belongs to,
 Address – The hardware address of this particular module; addresses can be in the
range of 1 to 30,
 Reference – The reference number of this module
2. Editable fields:
 Multicast Type – The user can select one or more Multicast Types for this module to
process,
 External – If this checkbox is checked then this Add-On module is to be used on the
external module bus,
 Descriptor – Allows the user to enter a 40 character descriptor describing this Add-
On module,
The SmartTerminal Menu
Right-clicking on the SmartTerminal Add-On parent item from the Tree View opens the menu,
. It contains an option to add a panel Add-on to the panel.
Right-clicking on an existing SmartTerminal Add-On module from the Tree View opens the menu,
It contains an option to add another module to the panel or remove the
current module. It also allows the user, via the ‘Edit Properties’ option to open the Add-On editing
dialog box.
