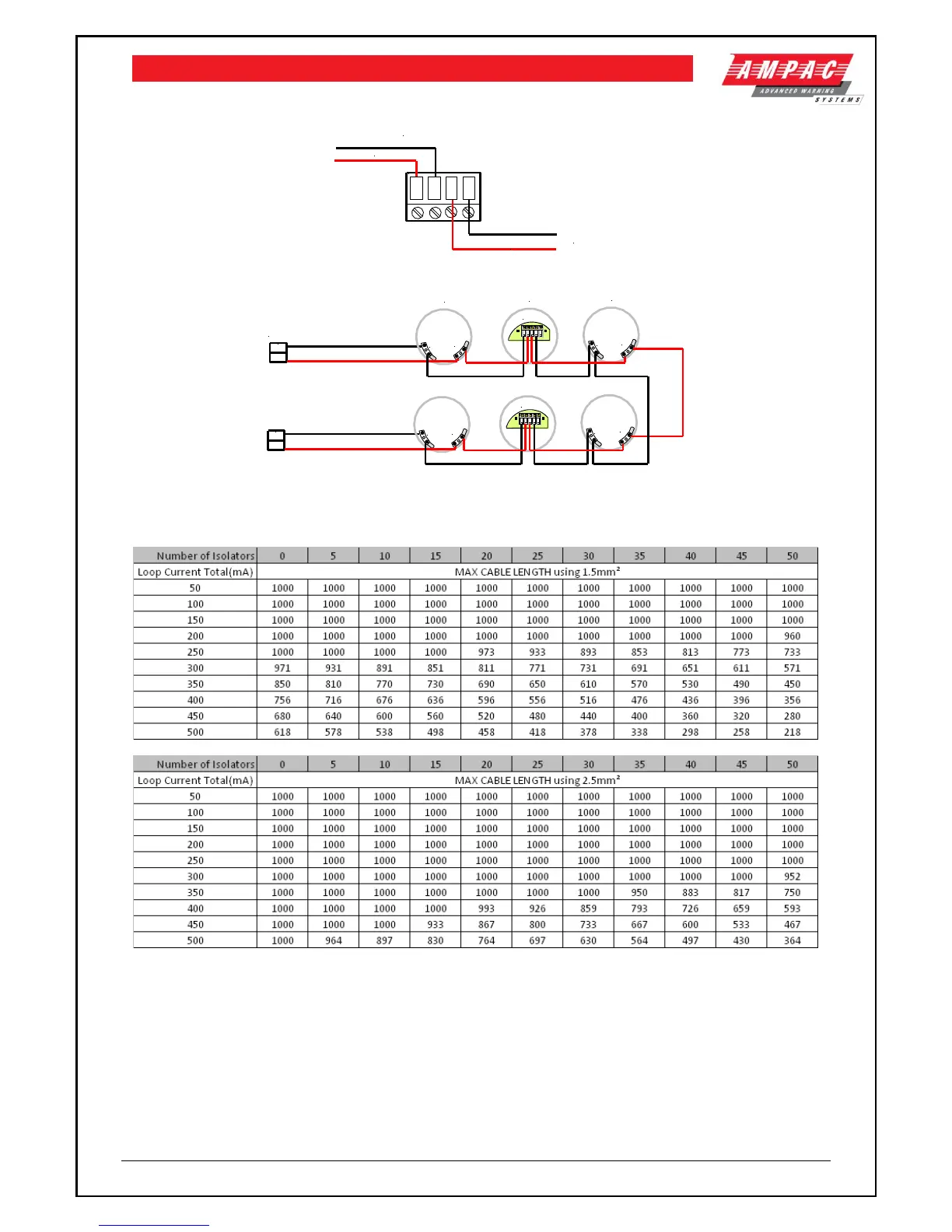

Page 22
LOOPSENSE EN54
INSTALLATION & COMMISSIONING
Note: Isolating base is polarity sensitive.
XP95 Loop Output
XP95 Loop Input
-
+
+ -
+ -
Figure 10: Terminal Block Connections
ISOLATING
BASE
STANDARD
BASE
+
-
IN
OUT
IN / OUT
L1
L2
Loop Terminal
L1
L2
+
-
IN
OUT
IN / OUT
L1
L2
L1
L2
STANDARD
BASE
- +
+ -
- +
+ -
Figure 11: Typical Loop Arrangement
The number of isolating devices on the loop can limit the maximum loop cable length depending on
the type of cable used and the total loop current. Refer to the tables below for reference.
