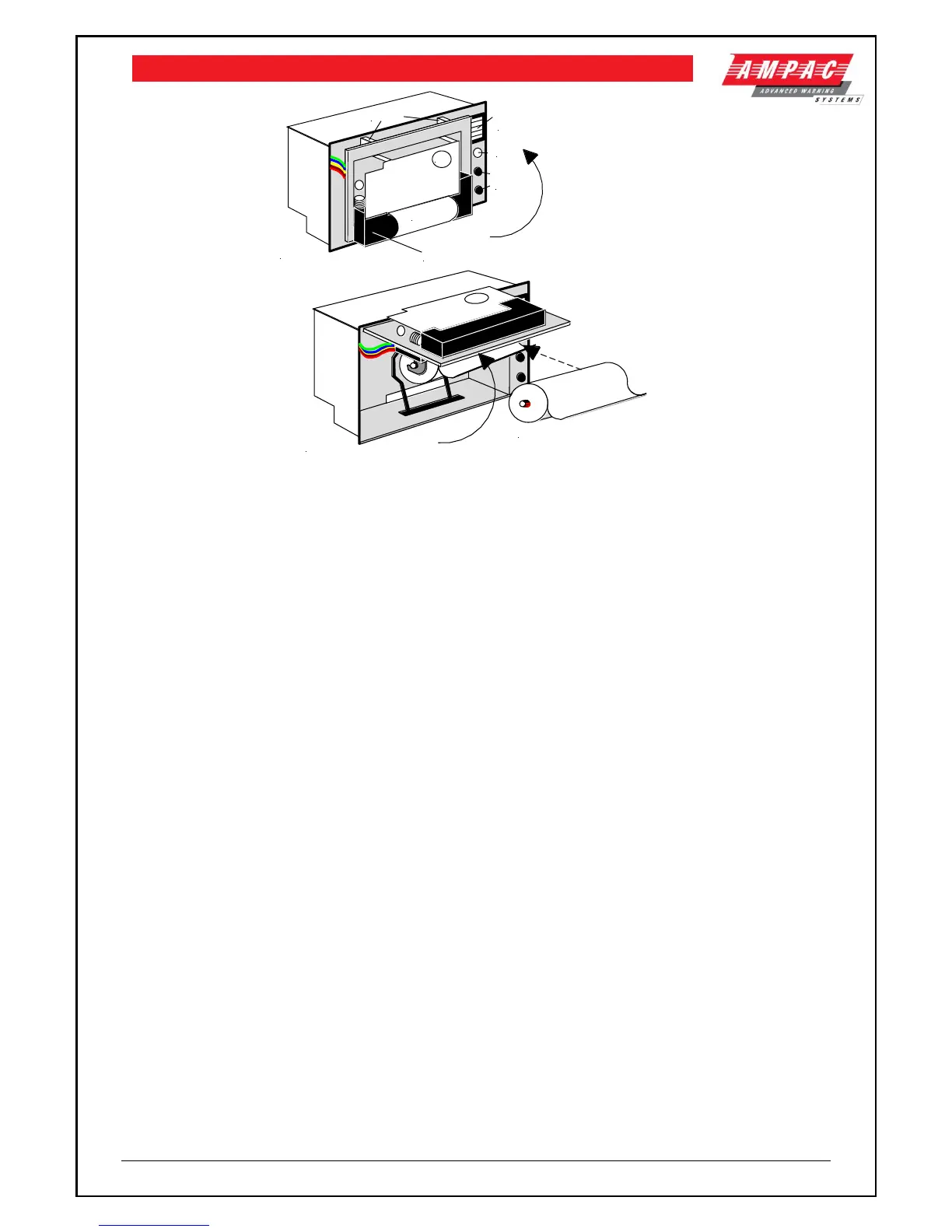

Figure 27: Head Mechanism Rotation and Paper Roll Removal / Insertion
Take out the empty paper roll and roller
Put the new paper roll onto the paper roller and replace as shown above.
Connect to the power supply.
Press the SEL button to take the printer Off Line, (LED is off).
Press the LF button, (paper feed).
Feed the edge of the paper into the mechanism and allow it to feed through.
Once it established the paper is feeding through the head mechanism correctly press the SEL button
to stop the paper feed.
Return the printer head to its original position.
Pushing on the affixed label PUSH the head mechanism back into position.
Close the front cover.
Note: Press only on the PUSH label to return the head mechanism back into position.
Note: The above instructions are graphically displayed on the inside of the front cover.
