3 PRODUCT OVERVIEW
The Ampcontrol Outlet Cassette System (OCS) is a major advancement in control and protection
technology. The OCS combines the outlet contactor, protection element, current transformers and outlet
test circuitry into a single replaceable unit. This has the advantage of resulting in minimal down-time in
the event of a fault.
The Ampcontrol OCS is available in two types: the standard OCS and the Fixed Cassette System (FCS).
The OCS provides isolation and earthing of individual outlets via integrated actuators that are controlled
at the touch of a button via a Human Machine Interface (HMI) screen. In this manner, operators are not
exposed to potential electric shocks resulting from residual static charge on the cable. This also
eliminates a potential ignition source of an explosive atmosphere.

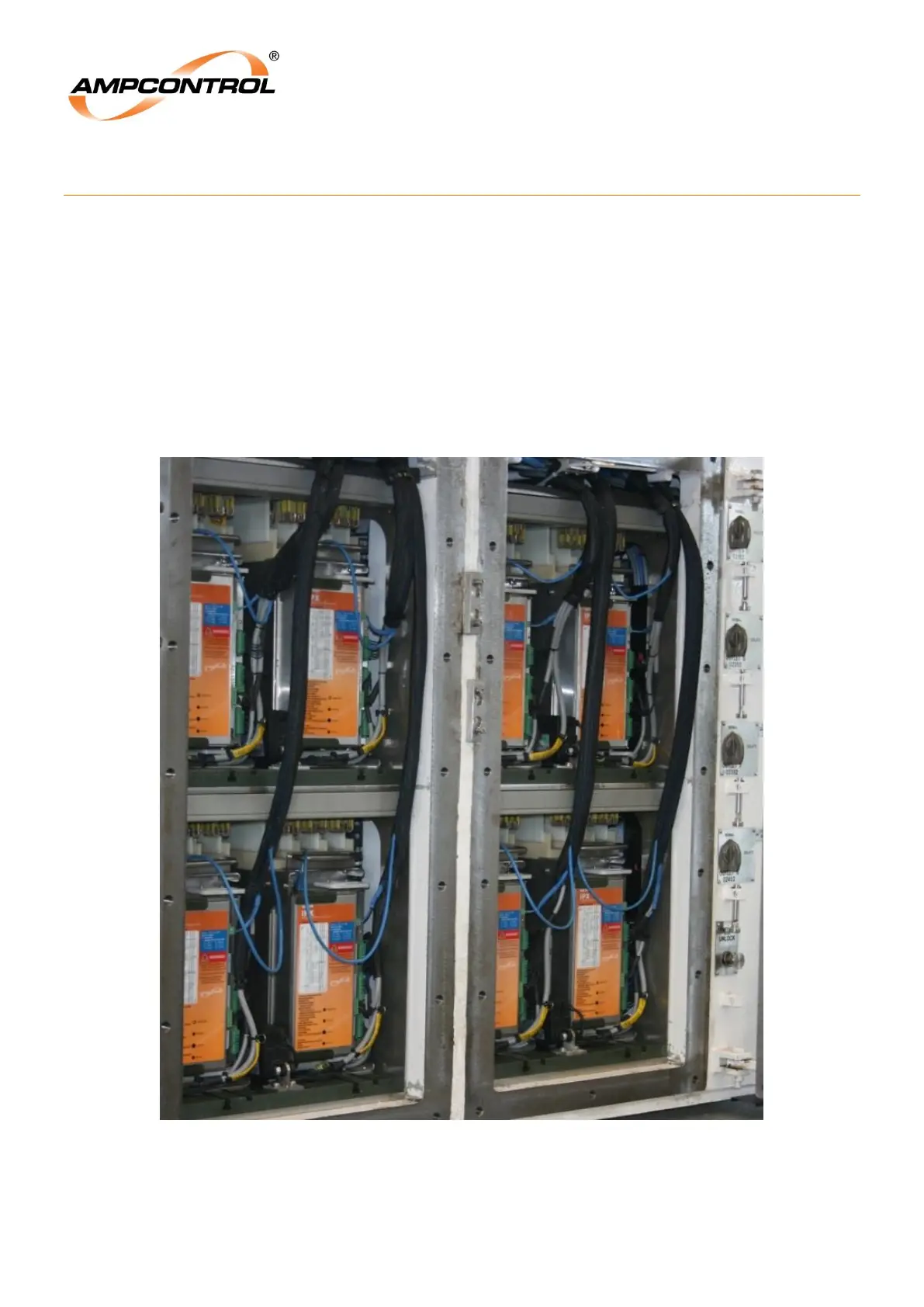

Figure 3.1: Ampcontrol Outlet Cassette System (OCS)
