The FCS (1.1kV systems only) sacrifices the remote isolation and earthing functionality of the OCS to
provide a higher outlet density. Due to the compact nature of the FCS, 10 outlets are able to be installed
in the same area used by a conventional 8 outlet system. The FCS is designed as a fully bolted, non-
withdrawable installation, whilst still minimising downtime by providing fast and easy removal of the
cassette protection components.

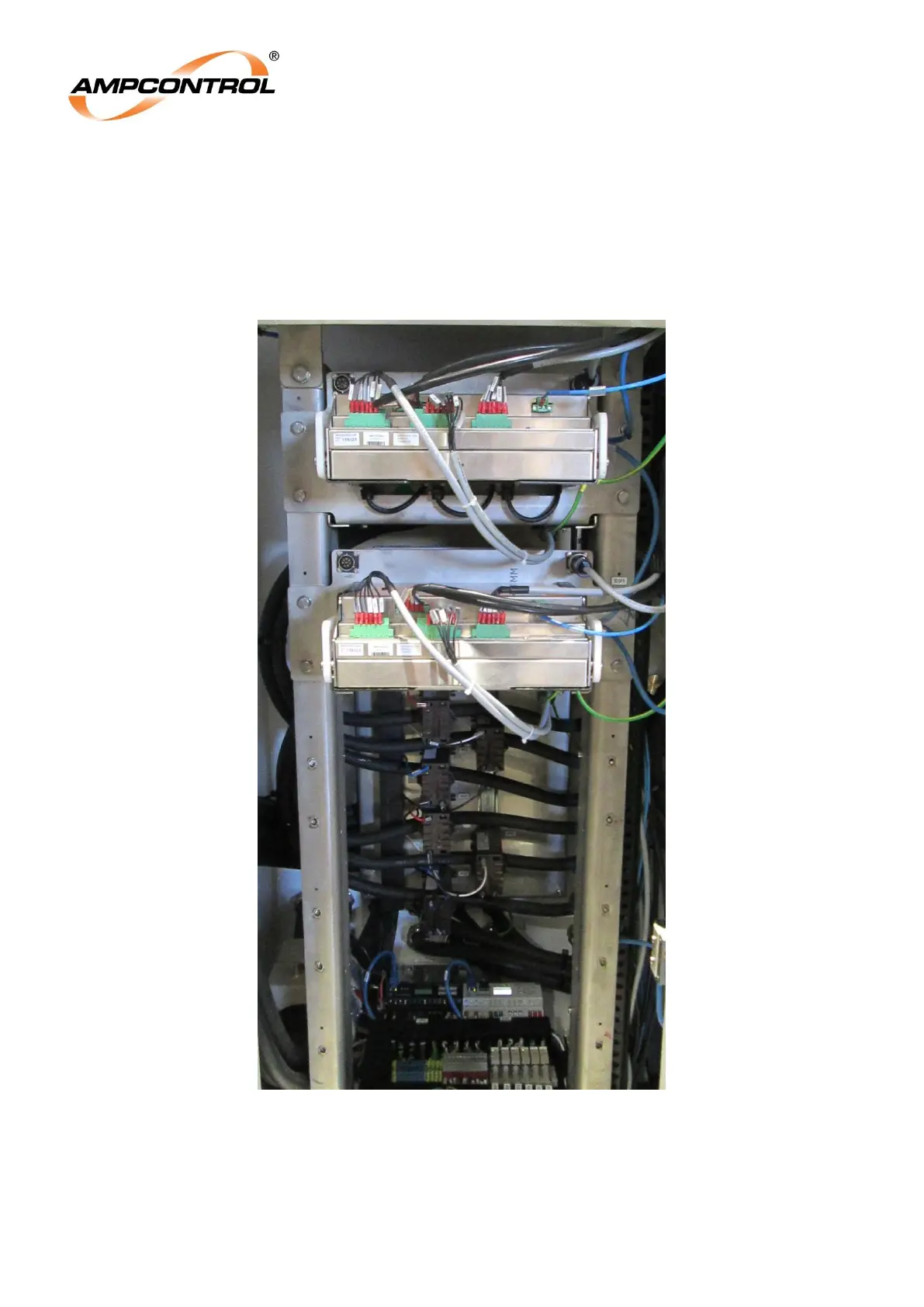

Figure 3.2: Ampcontrol Fixed Cassette System (FCS)
