Ampeg Micro-VR User Manual

7
MICRO-VR Bass Guitar Amplifier

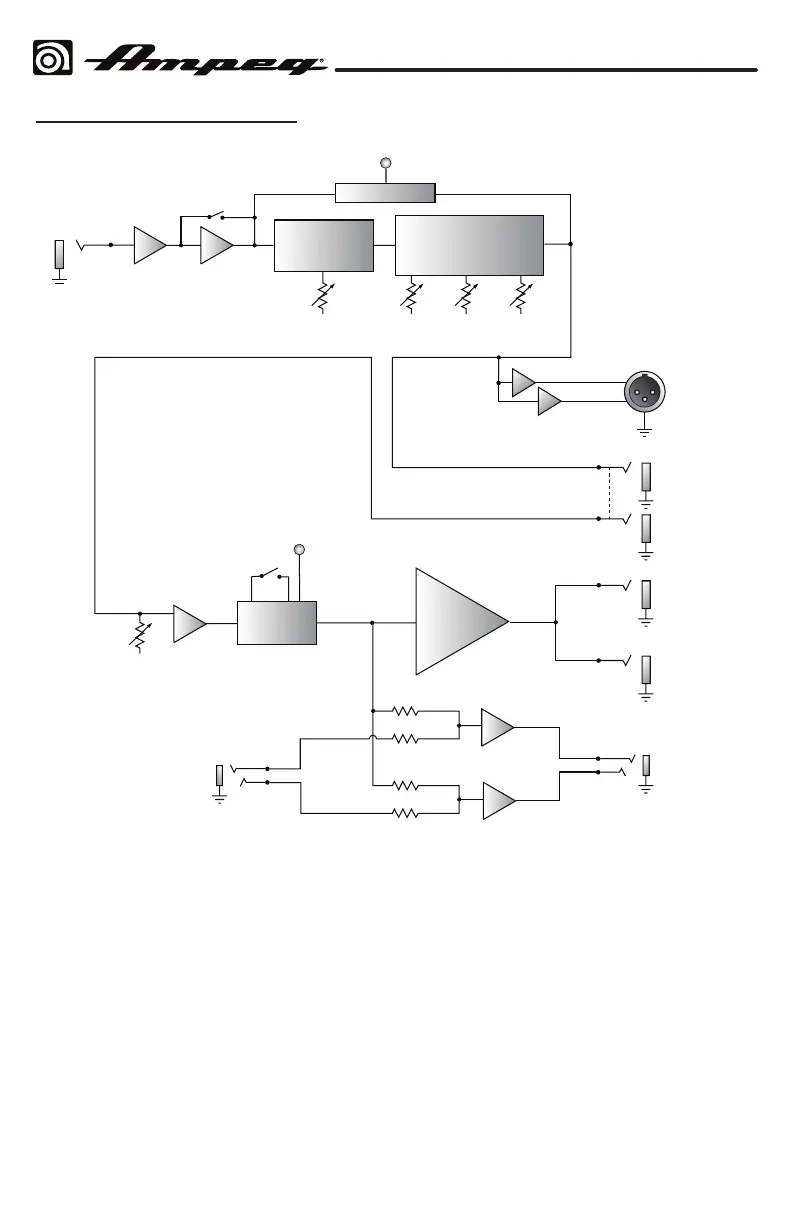

System Block Diagram
15 dB PAD
PHONES
OUTPUT
POWER
AMPLIFIER
LEFT
RIGHT
VOLUME
SPEAKER
OUTPUTS
PREAMPLIFIER
PEAK DETECTOR
LIMITER
LIMIT
LED
RETURN
SEND
EFFECTS
LOOP
XLR BALANCED
LINE OUTPUT
BASSMIDRANGETREBLE
INPUT
GAIN
TONE CONTROLSTONE CONTROLS
AUDIO INPUT
(STEREO)
LEFT
RIGHT
PEAK
LED
PEAK
LED

Ampeg Micro-VR Specifications

Power Output

output power rating at 8 Ω	150 Watts RMS
output power rating at 4 Ω	200 Watts RMS

Signal and Gain

signal to noise ratio	72 dB
maximum gain	62 dB

Tone Controls

bass control	+14/–12 dB @ 40 Hz
midrange control	+5/–13 dB @ 500 Hz
treble control	+19/–25 dB @ 8 kHz

Power Requirements

power requirement for 100–120 VAC	150 W
power requirement for 220–240 VAC	150 W
frequency	50–60 Hz

Weight and Dimensions

size (H x W x D) in inches	7.5 in x 12 in x 10 in
size (H x W x D) in millimeters	190 mm x 305 mm x 254 mm
weight in pounds	9.9 lb
weight in kilograms	4.5 kg
