Locating Fuses

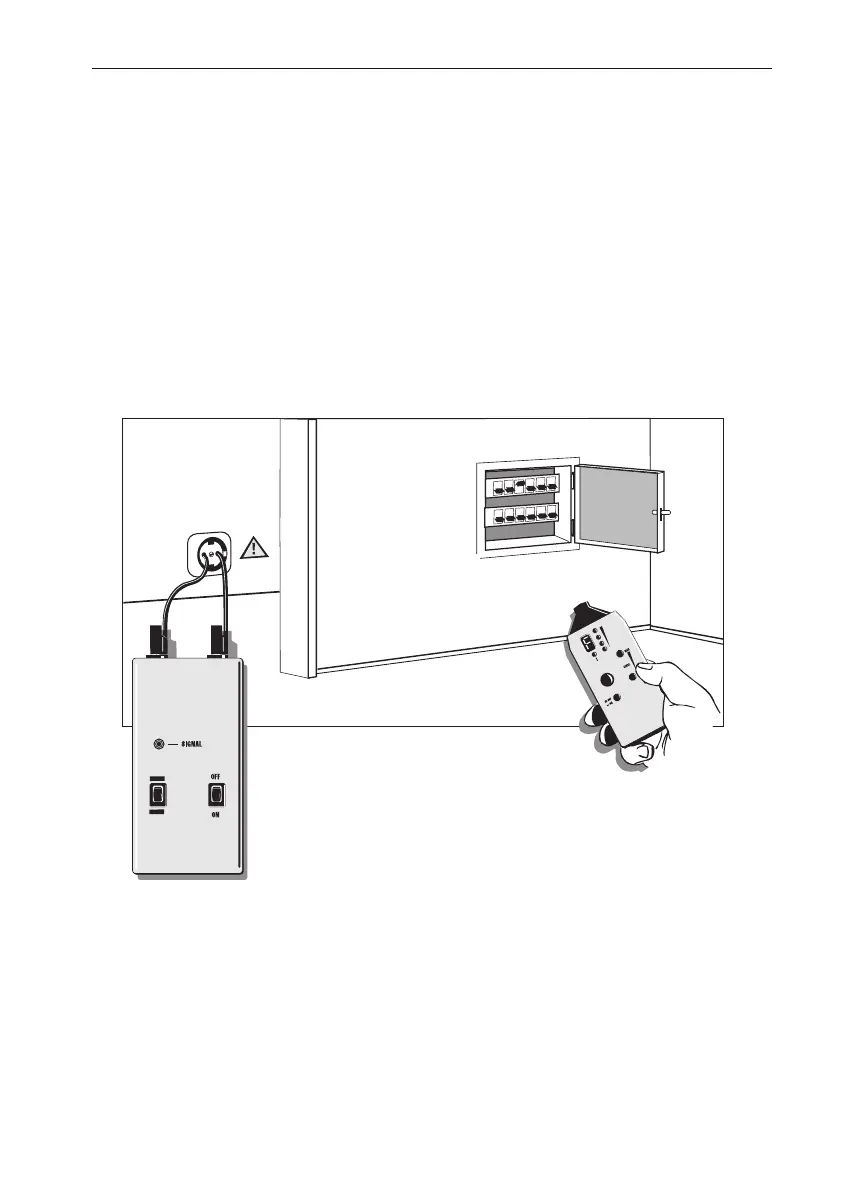

Example 6 (dual-pole application)
When connecting in live circuits, the safety prescriptions must absolutely be respected.
Insert into the current circuit of a multifamily residential structure flat within a socket
between L1 and N and switch the transmitter to „LOW“.
You may assign the signal in the secondary distribution and main distribution by transmitter
pre-setting „LOW“. Thus, fuses and automatic devices can be definitely assigned to a certain
current circuit.
This is of particular importance for current circuits operating electronic data processing
equipment. Proceed as in the example shown.
Set transmitter to „LOW“. (Signal lamp is illuminated at reduced brightness).
LEVEL
I
II
SIGNA
L
LE
V
E
L
C
ODE
