Locating a complete house wiring
Example 7 (single-pole application)
NOTE:
By touching the contact electrode „7“ the sensitivity of the range is increased up to factor 1.5.
ATTENTION: For security reasons, the system must not be live !
Practical application example
In order to determine all electrical lines of a house within one working process, proceed as
follows:
Remove the bridge in the main distribution between „PE“ and „N“.
Connect transmitter to the system compliance with the left wiring diagram.
Now, the neutral conductor, being present within the total system, may be followed.

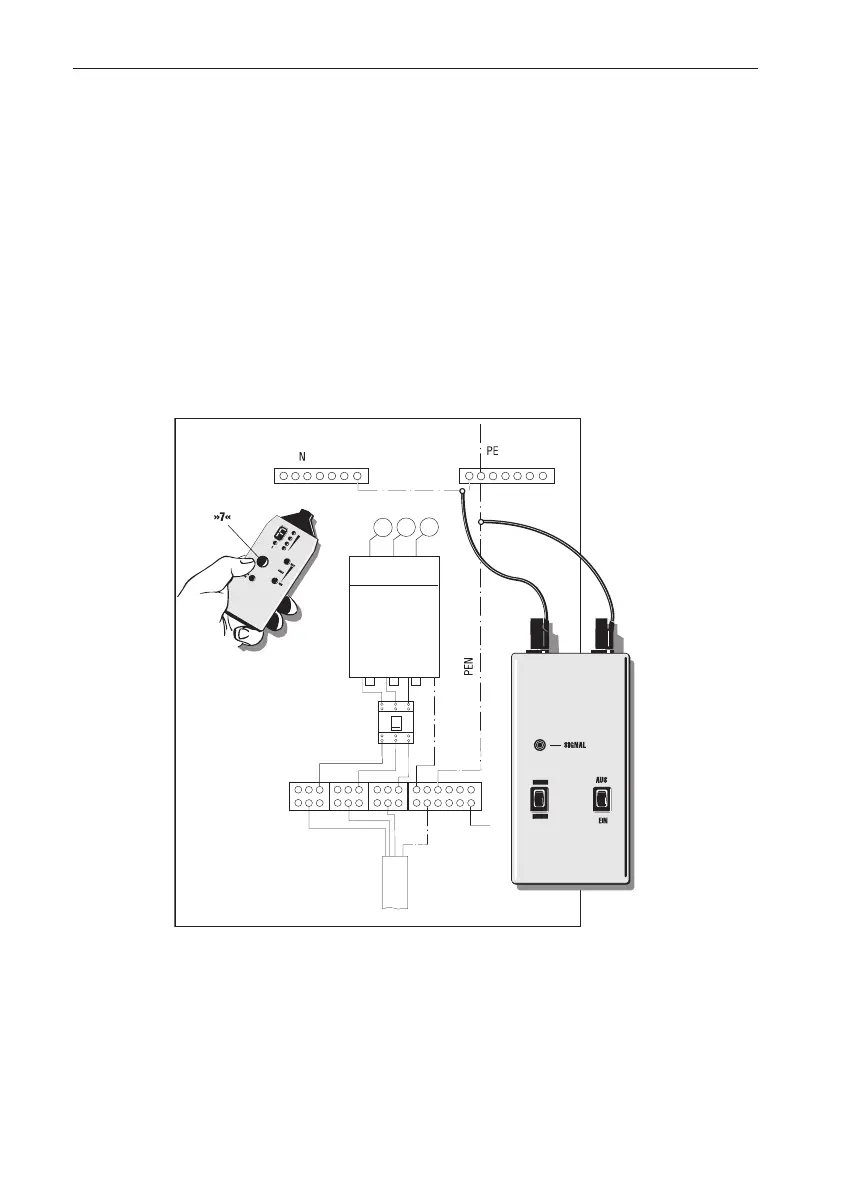

Remove bridge between PE and N. Connect transmitter in compliance with the figure.
LE
V
E
L
I
II
SIGNAL
L
E
VEL
CODE
21
