Installation

MXD/T-701 7" Modero X Series® G5 Touch Panels

11. Test the incoming wiring by attaching the panel connections to their terminal locations and applying power. Verify

that the panel is receiving power and functioning properly to prevent repetition of the installation.

12. Latch the panel onto the top hooks on the back box and push it down (Landscape) onto the bottom snaps or on the

left side and push it to the right (Portrait) (FIG. 18). Press gently but firmly on the ends until the snaps “click” to

lock it down.

13. Reconnect the terminal Ethernet and USB to their respective locations on the Ethernet port.

Do not disconnect the connectors from the touch panel. The unit must be installed

with the attached connectors before being inserted into the mounting surface.

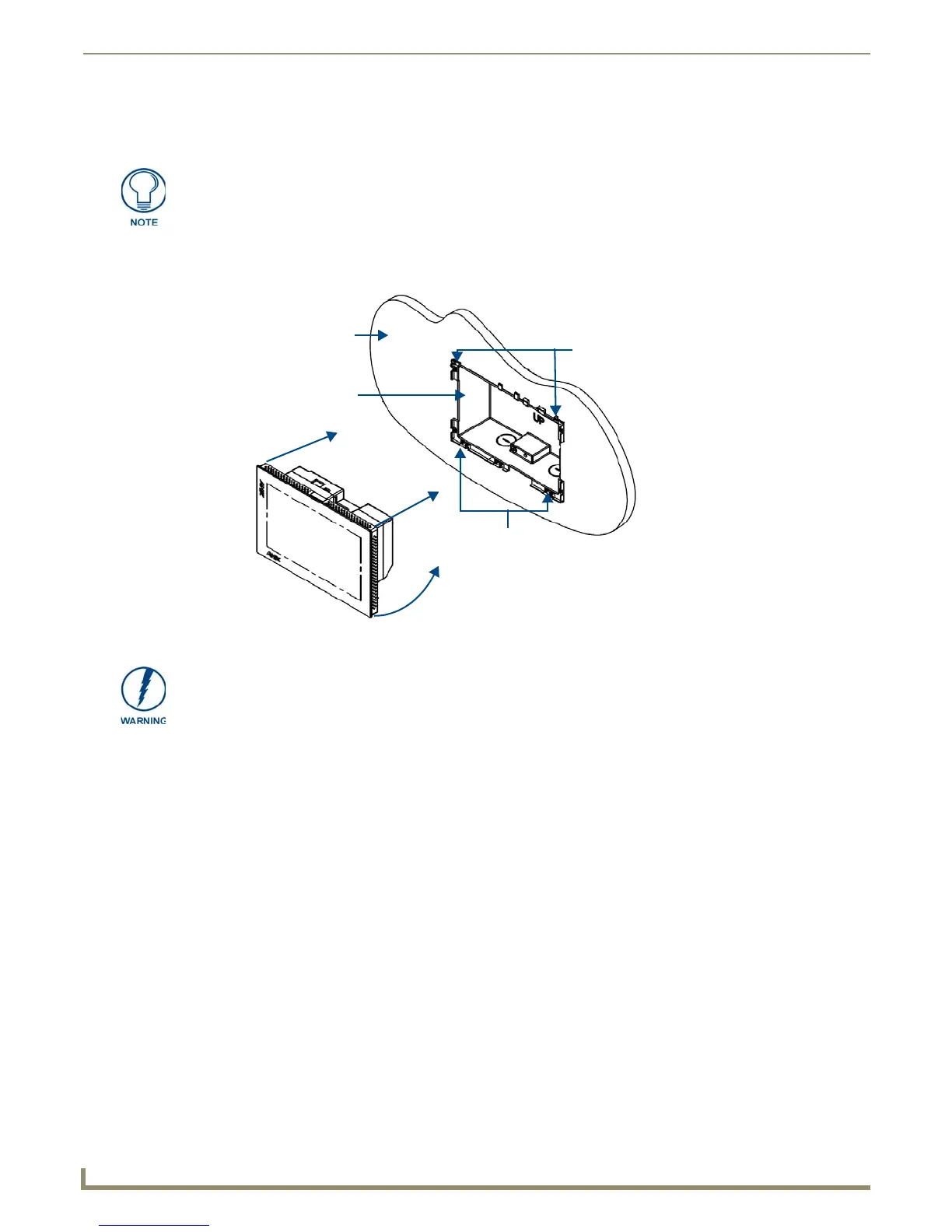

FIG. 18 Installing the MXD-701

Mounting Surface

Back Box

Latch Hooks

Snaps

If you see a gap between the panel and the back box, or feel any binding while

locking down the panel, stop immediately and verify that no cables or other items are

in the way. Do not force the panel into position, as this can cause damage to the

touch screen or the panel electronics.
